VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

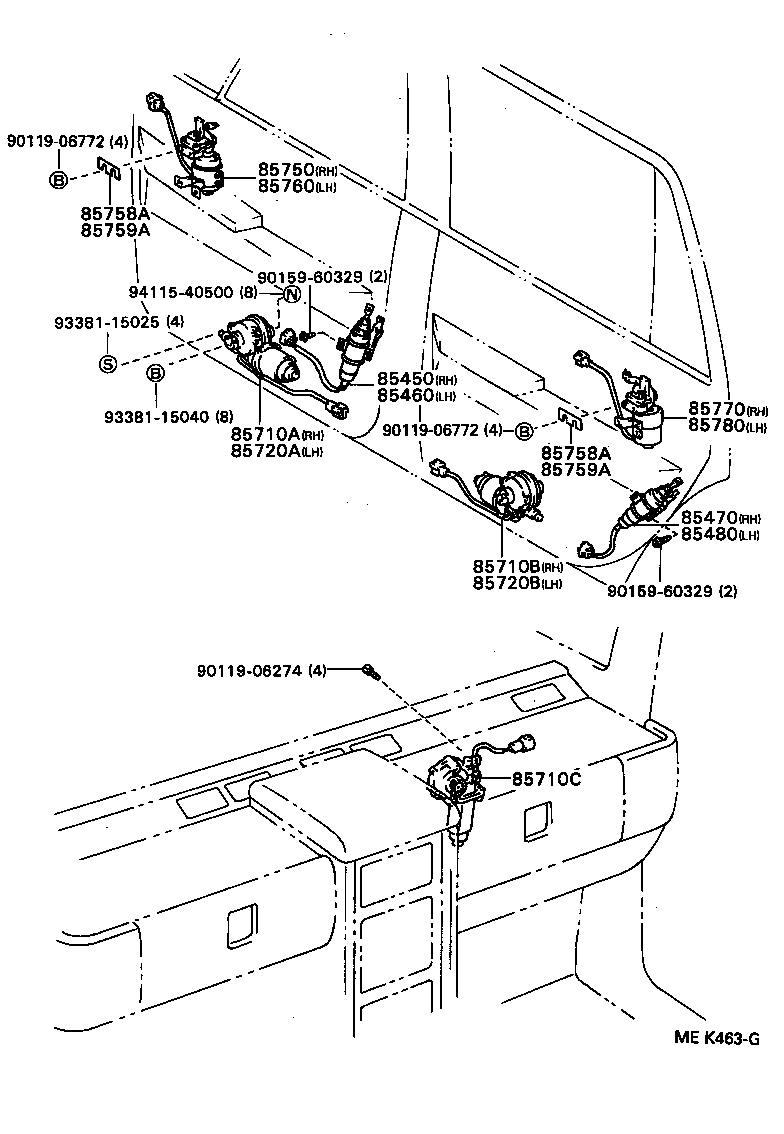

Click highlighted areas on diagram

diagram 85450 85460 85470 85480 85710A 85710B 85710C 85720A 85720B 85750 85758A 85758A 85759A 85759A 85760 85770 85780 9011906274 9011906772 9011906772 9015960329 9015960329 9338115025 9338115040 9411540500
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-40020

VG4#

 1
85450-40040

VG4#

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-40030

VG4#

 1
85450-40050

VG4#

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-40060

VG4#

 1
85450-30350

VG4#

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-40070

VG4#

 1
85450-30360

VG4#

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-40030

VG4#

 1
85710-40050

VG4#

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85720-40070

VG4#

 1
85720-40040

VG4#

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-40040

VG4#

 1
85720-40070

VG4#

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-40050

VG4#

 1
85720-40080

VG4#

 1
85750 - MOTOR ASSY, FRONT VENT WINDOW, RH
85750-40040

VG4#

 1
85750-40030

VG4#

 1
85758A - SHIM, VENT WIND MOTOR HOUSING BASE, NO.1
85758-91401

VG4#

 1
85758A - SHIM, VENT WIND MOTOR HOUSING BASE, NO.1
85758-91401

VG4#

 1
85759A - SHIM, VENT WIND MOTOR HOUSING BASE, NO.2
85759-91401

VG4#

 1
85759A - SHIM, VENT WIND MOTOR HOUSING BASE, NO.2
85759-91401

VG4#

 1
85760 - MOTOR ASSY, FRONT VENT WINDOW, LH
85750-40030

VG4#

 1
85750-40040

VG4#

 1
85770 - MOTOR ASSY, REAR VENT WINDOW, RH
85770-40030

VG4#

 1
85770-40040

VG4#

 1
85780 - MOTOR ASSY, REAR VENT WINDOW, LH
85780-40020

VG4#

 1
85780-40030

VG4#

 1
Common parts
90119-06274
90119-06772
90159-60329
93381-15025
93381-15040
94115-40500
