VG40-GEPGE (1987)
Toyota Century

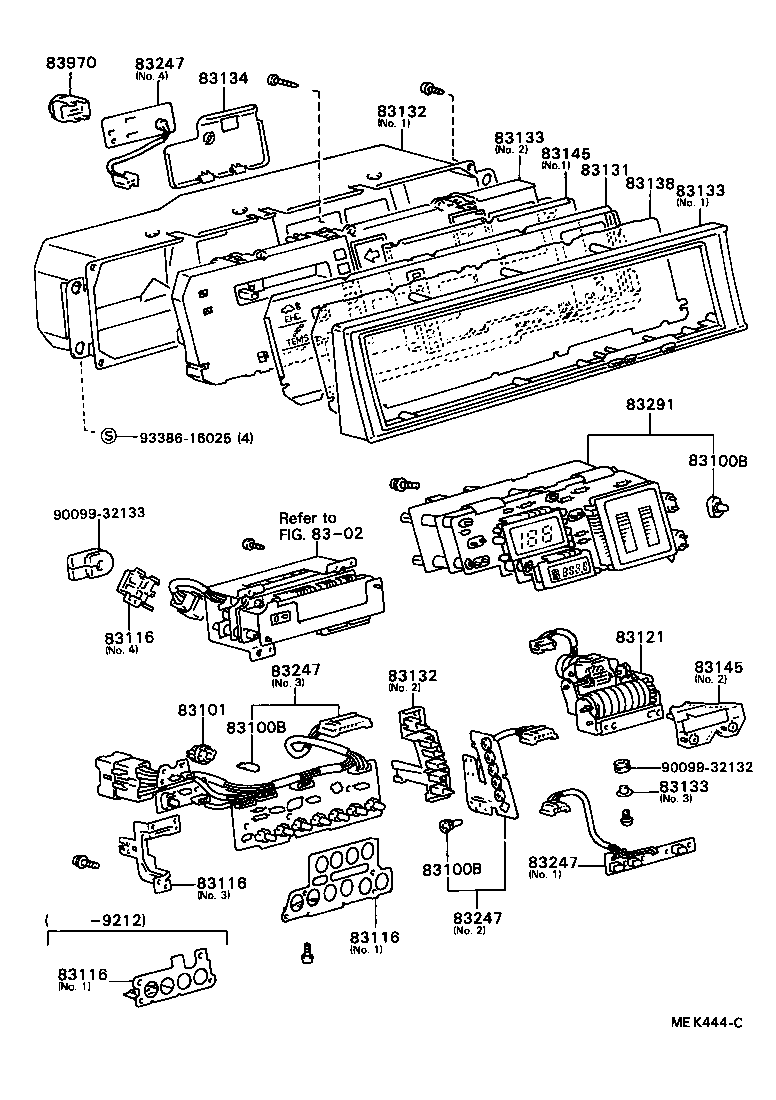

ILLUST NO. 1 OF 2(8709- )
ｽﾋﾟ-ﾄﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24670 |
VG4# 14V 1.12W ｿｹｯﾄ付き |
11 | ||
| 83119-24070 |
VG40..D 12V 1.4W ｿｹｯﾄ付き |
9 | ||
| 83119-24070 |
VG4#..E,L 12V 1.4W ｿｹｯﾄ付き |
6 | ||
| 90981-11018 |
VG40..E 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG40..D 12V 1.2W ｿｹｯﾄ無し |
7 | ||
| 83119-24030 |
VG4# 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24670 |
VG4# 14V 1.12W ｿｹｯﾄ付き |
11 | ||
| 83119-24070 |
VG40..D 12V 1.4W ｿｹｯﾄ付き |
9 | ||
| 83119-24070 |
VG4#..E,L 12V 1.4W ｿｹｯﾄ付き |
6 | ||
| 90981-11018 |
VG40..E 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG40..D 12V 1.2W ｿｹｯﾄ無し |
7 | ||
| 83119-24030 |
VG4# 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24670 |
VG4# 14V 1.12W ｿｹｯﾄ付き |
11 | ||
| 83119-24070 |
VG40..D 12V 1.4W ｿｹｯﾄ付き |
9 | ||
| 83119-24070 |
VG4#..E,L 12V 1.4W ｿｹｯﾄ付き |
6 | ||
| 90981-11018 |
VG40..E 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
8 | ||
| 90981-11018 |
VG40..D 12V 1.2W ｿｹｯﾄ無し |
7 | ||
| 83119-24030 |
VG4# 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
VG40..D |
7 | ||
| 83101-14040 |
VG4# |
8 | ||
| 83101-14040 |
VG40..E |
8 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-40090 |
VG4# NO.1 |
1 | ||
| 83116-40050 |
VG4# NO.3 |
1 | ||
| 83116-40010 |
VG4# NO.1 |
1 | ||
| 83116-40070 |
VG4# NO.4 |
1 | ||
| 83116-40110 |
VG4# NO.3 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-40090 |
VG4# NO.1 |
1 | ||
| 83116-40050 |
VG4# NO.3 |
1 | ||
| 83116-40010 |
VG4# NO.1 |
1 | ||
| 83116-40070 |
VG4# NO.4 |
1 | ||
| 83116-40110 |
VG4# NO.3 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-40090 |
VG4# NO.1 |
1 | ||
| 83116-40050 |
VG4# NO.3 |
1 | ||
| 83116-40010 |
VG4# NO.1 |
1 | ||
| 83116-40070 |
VG4# NO.4 |
1 | ||
| 83116-40110 |
VG4# NO.3 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-40090 |
VG4# NO.1 |
1 | ||
| 83116-40050 |
VG4# NO.3 |
1 | ||
| 83116-40010 |
VG4# NO.1 |
1 | ||
| 83116-40070 |
VG4# NO.4 |
1 | ||
| 83116-40110 |
VG4# NO.3 |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-40010 |
VG4# |
1 | ||
| 83121-40050 |
VG4#..E,L |
1 | ||
| 83121-40070 |
VG40..D |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-40050 |
VG4#..E,L |
1 | ||
| 83131-40070 |
VG40..D |
1 | ||
| 83131-40030 |
VG40..D |
1 | ||
| 83131-40010 |
VG4#..E,L |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-40070 |
VG4# NO.1 |
1 | ||
| 83132-40030 |
VG4# NO.1 |
1 | ||
| 83132-40050 |
VG4# NO.2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-40070 |
VG4# NO.1 |
1 | ||
| 83132-40030 |
VG4# NO.1 |
1 | ||
| 83132-40050 |
VG4# NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-40050 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40190 |
VG40..D NO.2 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40030 |
VG4# NO.1 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40050 |
VG40..E NO.2 |
1 | ||
| 83133-40170 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40150 |
VG40..D NO.2 |
1 | ||
| 83133-40090 |
VG4# NO.3 |
1 | ||
| 83133-40130 |
VG4#..E,L NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-40050 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40190 |
VG40..D NO.2 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40030 |
VG4# NO.1 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40050 |
VG40..E NO.2 |
1 | ||
| 83133-40170 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40150 |
VG40..D NO.2 |
1 | ||
| 83133-40090 |
VG4# NO.3 |
1 | ||
| 83133-40130 |
VG4#..E,L NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-40050 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40190 |
VG40..D NO.2 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40030 |
VG4# NO.1 |
1 | ||
| 83133-40070 |
VG40..D NO.2 |
1 | ||
| 83133-40050 |
VG40..E NO.2 |
1 | ||
| 83133-40170 |
VG4#..E,L NO.2 |
1 | ||
| 83133-40150 |
VG40..D NO.2 |
1 | ||
| 83133-40090 |
VG4# NO.3 |
1 | ||
| 83133-40130 |
VG4#..E,L NO.2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83121-40030 |
VG4# |
1 | ||
| 83134-40010 |
VG40 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-40010 |
VG4# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-40030 |
VG4# NO.2 |
1 | ||
| 83145-40010 |
VG4# NO.1 |
1 | ||
| 83145-40010 |
VG4# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-40030 |
VG4# NO.2 |
1 | ||
| 83145-40010 |
VG4# NO.1 |
1 | ||
| 83145-40010 |
VG4# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-40190 |
VG40..D NO.3 |
1 | ||
| 83247-40130 |
VG40..D NO.3 |
1 | ||
| 83247-40230 |
VG40..D NO.3 |
1 | ||
| 83247-40110 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40090 |
VG40 NO.2 |
1 | ||
| 83247-40210 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40150 |
VG4# NO.4 |
1 | ||
| 83247-40070 |
VG4# NO.1 |
1 | ||
| 83247-40170 |
VG4# NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-40190 |
VG40..D NO.3 |
1 | ||
| 83247-40130 |
VG40..D NO.3 |
1 | ||
| 83247-40230 |
VG40..D NO.3 |
1 | ||
| 83247-40110 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40090 |
VG40 NO.2 |
1 | ||
| 83247-40210 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40150 |
VG4# NO.4 |
1 | ||
| 83247-40070 |
VG4# NO.1 |
1 | ||
| 83247-40170 |
VG4# NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-40190 |
VG40..D NO.3 |
1 | ||
| 83247-40130 |
VG40..D NO.3 |
1 | ||
| 83247-40230 |
VG40..D NO.3 |
1 | ||
| 83247-40110 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40090 |
VG40 NO.2 |
1 | ||
| 83247-40210 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40150 |
VG4# NO.4 |
1 | ||
| 83247-40070 |
VG4# NO.1 |
1 | ||
| 83247-40170 |
VG4# NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-40190 |
VG40..D NO.3 |
1 | ||
| 83247-40130 |
VG40..D NO.3 |
1 | ||
| 83247-40230 |
VG40..D NO.3 |
1 | ||
| 83247-40110 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40090 |
VG40 NO.2 |
1 | ||
| 83247-40210 |
VG4#..E,L NO.3 |
1 | ||
| 83247-40150 |
VG4# NO.4 |
1 | ||
| 83247-40070 |
VG4# NO.1 |
1 | ||
| 83247-40170 |
VG4# NO.2 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-40010 |
VG40 |
1 | ||
| 83291-40011 |
VG40 |
1 | ||
| 83291-40012 |
VG4# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
VG4# |
1 | ||
| Common parts | ||||
| 90099-32132 | ||||
| 90099-32133 | ||||
| 93386-16025 | ||||
| Linked diagrams | ||||
| 8302 | ||||

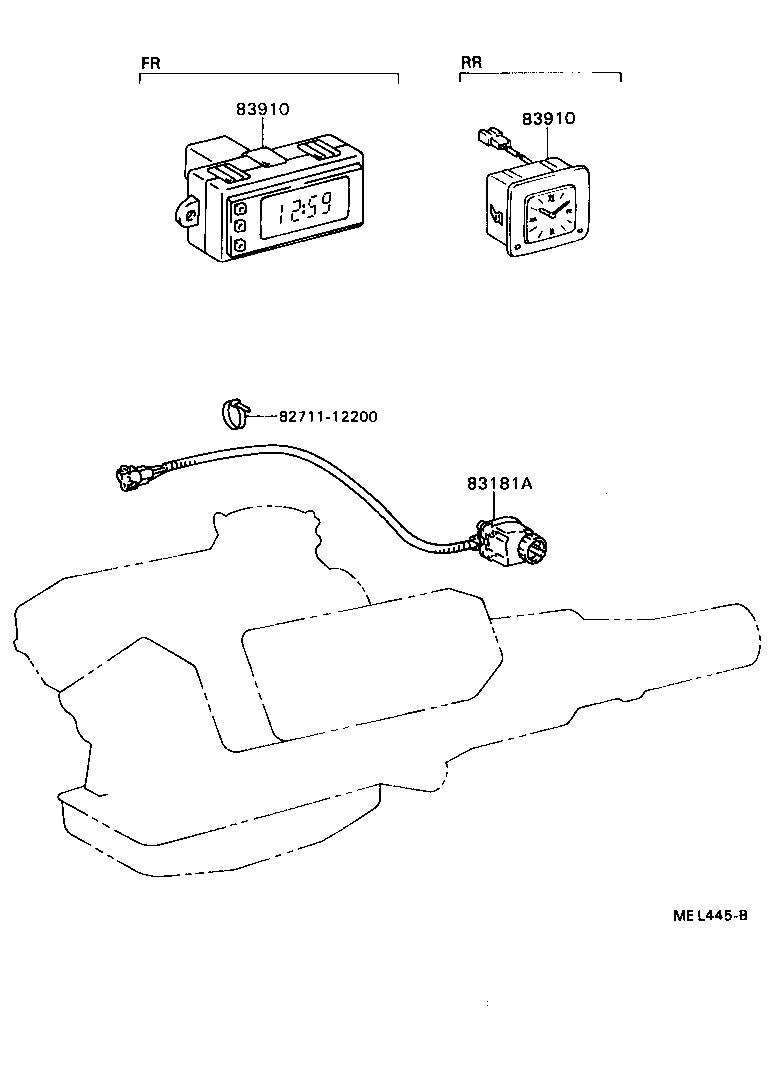

ILLUST NO. 2 OF 2(8709- )
ｸﾛﾂｸ & ｽﾋﾟ-ﾄﾞﾒ-ﾀｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-40010 |
VG4# |
1 | ||
| 83181-40011 |
VG4# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-40040 |
VG4# |
1 | ||
| 83910-40050 |
VG40..E RR |
1 | ||
| 83910-40050 |
VG40..D ﾘﾔ |
1 | ||
| 83910-40050 |
VG40 ﾘﾔ |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-40040 |
VG4# |
1 | ||
| 83910-40050 |
VG40..E RR |
1 | ||
| 83910-40050 |
VG40..D ﾘﾔ |
1 | ||
| 83910-40050 |
VG40 ﾘﾔ |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
