Toyota Century VG40 WIRING & CLAMP

VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997

Engine 5VEU

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(8709- )

Click highlighted areas on diagram

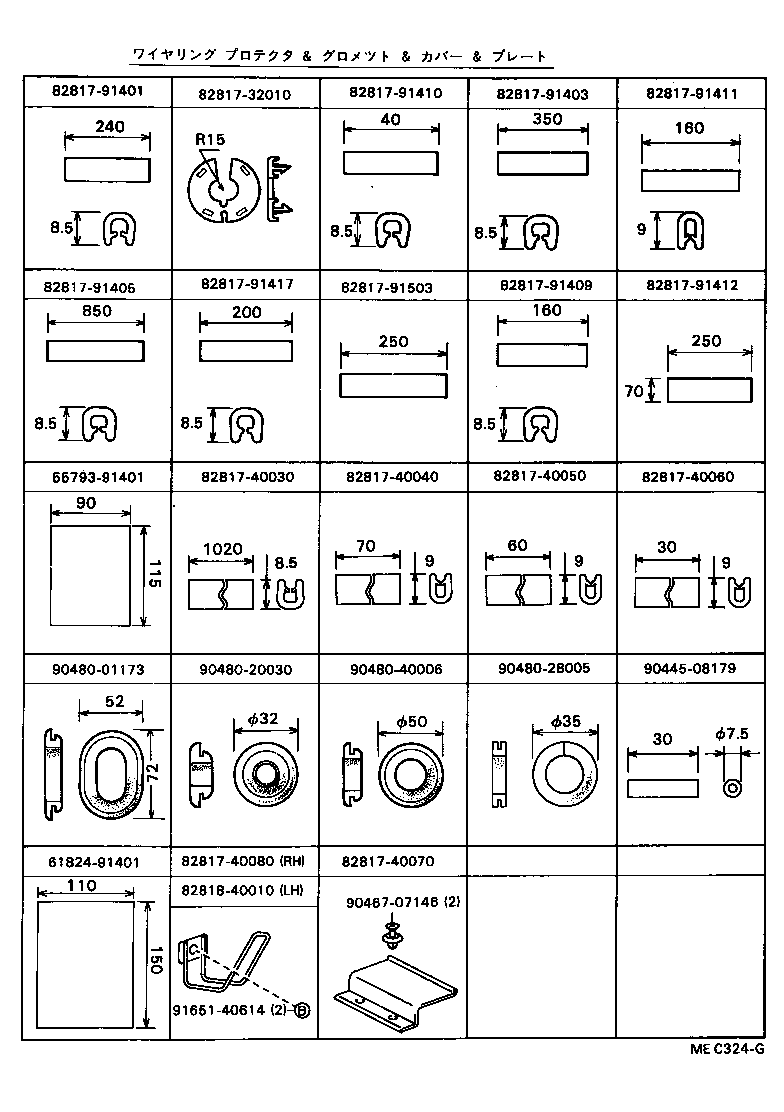

ﾜｲﾔﾌﾟﾛﾃｸﾀ,ｸﾞﾛﾒﾂﾄ,ｶﾊﾞ-,ﾌﾟﾚ-ﾄ

Part #	Description	Period	Qty	Price
Common parts
55793-91401
61824-91401
82817-32010
82817-40030
82817-40040
82817-40050
82817-40060
82817-40070
82817-40080
82817-91401
82817-91403
82817-91405
82817-91409
82817-91410
82817-91411
82817-91412
82817-91417
82817-91503
82818-40010
90445-08179
90467-07146
90480-01173
90480-20030
90480-28005
90480-40006
91651-40614

ILLUST NO. 1 OF 6(8709- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑﾒｲﾝ,ｴﾝｼﾞﾝ,ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07214	VG4# ALTERNETOR---BODY	09/1987 - 01/1997	1
90980-07062	VG4# ENGINE HANGER---BODY	09/1987 - 01/1997	1
90980-07067	VG4# ENGINE HEAD---BODY	09/1987 - 01/1997	1
82001 - CABLE, BOND, NO.1
90980-07214	VG4# ALTERNETOR---BODY	09/1987 - 01/1997	1
90980-07062	VG4# ENGINE HANGER---BODY	09/1987 - 01/1997	1
90980-07067	VG4# ENGINE HEAD---BODY	09/1987 - 01/1997	1
82001 - CABLE, BOND, NO.1
90980-07214	VG4# ALTERNETOR---BODY	09/1987 - 01/1997	1
90980-07062	VG4# ENGINE HANGER---BODY	09/1987 - 01/1997	1
90980-07067	VG4# ENGINE HEAD---BODY	09/1987 - 01/1997	1
82111 - WIRE, ENGINE ROOM MAIN
82111-40031	VG40..D	09/1990 - 09/1991	1
82111-40043	VG4#..E,L	09/1991 - 12/1992	1
82111-40041	VG4#..E,L	09/1990 - 09/1991	1
82111-40110	VG40..D	12/1994 - 01/1997	1
82111-40080	VG4#..E,L	12/1992 - 12/1994	1
82111-40040	VG40..E	09/1987 - 09/1990	1
82111-40033	VG40..D	09/1991 - 12/1992	1
82111-40030	VG40..D	09/1987 - 09/1990	1
82111-40070	VG40..D	12/1992 - 12/1994	1
82111-40120	VG4#..E,L	12/1994 - 01/1997	1
82121 - WIRE, ENGINE
82121-40020	VG40	09/1987 - 10/1989	1
82121-40022	VG4#	09/1990 - 11/1992	1
82121-40021	VG40	10/1989 - 09/1990	1
82121-40030	VG4#	11/1992 - 12/1994	1
82121-40040	VG4#	12/1994 - 01/1997	1
82122 - WIRE, ENGINE, NO.2
82122-40010	VG4#	09/1987 - 01/1997	1
82131 - WIRE, COWL
82131-40030	VG40..D	09/1987 - 05/1989	1
82131-40032	VG40..D	09/1990 - 11/1992	1
82131-40042	VG4#..E,L	09/1990 - 12/1992	1
82131-40100	VG40..D	11/1992 - 12/1994	1
82131-40040	VG40..E	09/1987 - 05/1989	1
82131-40031	VG40..D	05/1989 - 09/1990	1
82131-40041	VG40..E	05/1989 - 09/1990	1
82131-40110	VG4#..E,L	12/1992 - 12/1994	1
82131-40160	VG40..D	12/1994 - 01/1997	1
82131-40170	VG4#..E,L	12/1994 - 01/1997	1
82210C - FUSIBLE LINK
90982-08201	VG4# 0.5ｸﾞﾘｰﾝ X2,長さ=120	09/1987 - 01/1997	1
90982-08124	VG4# 0.5ｸﾞﾘｰﾝ,長さ=100	09/1987 - 01/1997	1
90982-08279	VG4# 長さ=110	09/1987 - 01/1997	1
90982-08125	VG4# 1.0ｲｴﾛｰ,長さ=110	09/1987 - 01/1997	1
82210C - FUSIBLE LINK
90982-08201	VG4# 0.5ｸﾞﾘｰﾝ X2,長さ=120	09/1987 - 01/1997	1
90982-08124	VG4# 0.5ｸﾞﾘｰﾝ,長さ=100	09/1987 - 01/1997	1
90982-08279	VG4# 長さ=110	09/1987 - 01/1997	1
90982-08125	VG4# 1.0ｲｴﾛｰ,長さ=110	09/1987 - 01/1997	1
82210C - FUSIBLE LINK
90982-08201	VG4# 0.5ｸﾞﾘｰﾝ X2,長さ=120	09/1987 - 01/1997	1
90982-08124	VG4# 0.5ｸﾞﾘｰﾝ,長さ=100	09/1987 - 01/1997	1
90982-08279	VG4# 長さ=110	09/1987 - 01/1997	1
90982-08125	VG4# 1.0ｲｴﾛｰ,長さ=110	09/1987 - 01/1997	1
Common parts
90119-06005
90119-08063
91651-40610
Linked diagrams
8401

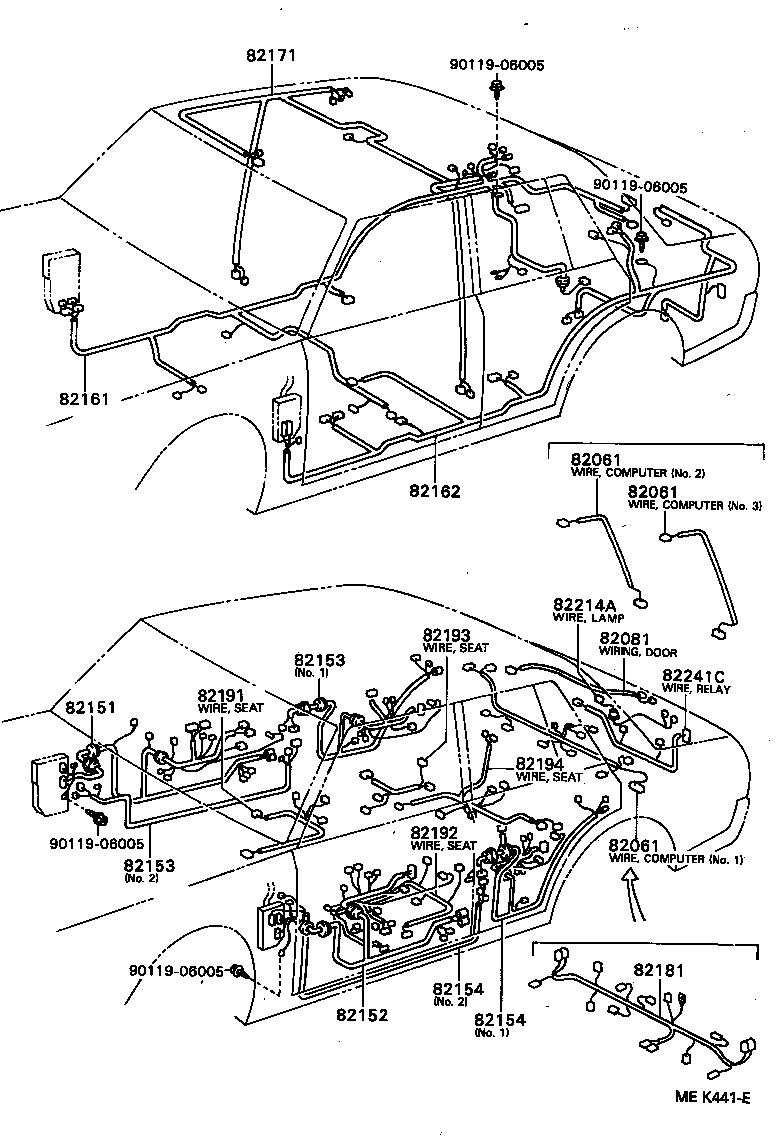

ILLUST NO. 2 OF 6(8709- )

Click highlighted areas on diagram

ﾙ-ﾌ,ﾌﾛｱ,ﾄﾞｱ,ｼ-ﾄﾜｲﾔ

Part #	Description	Period	Qty
82061 - WIRING SUB-ASSY, COMPUTER
82061-91406	VG4#..E,L	12/1992 - 01/1997	1
82061-91406	VG4#..E,L NO.3	09/1987 - 12/1992	1
82061-91405	VG40..E NO.2	09/1987 - 09/1990	1
82061-91404	VG40..E NO.1	09/1987 - 09/1990	1
82061-40010	VG4#..E,L NO.1	09/1990 - 12/1992	1
82061 - WIRING SUB-ASSY, COMPUTER
82061-91406	VG4#..E,L	12/1992 - 01/1997	1
82061-91406	VG4#..E,L NO.3	09/1987 - 12/1992	1
82061-91405	VG40..E NO.2	09/1987 - 09/1990	1
82061-91404	VG40..E NO.1	09/1987 - 09/1990	1
82061-40010	VG4#..E,L NO.1	09/1990 - 12/1992	1
82061 - WIRING SUB-ASSY, COMPUTER
82061-91406	VG4#..E,L	12/1992 - 01/1997	1
82061-91406	VG4#..E,L NO.3	09/1987 - 12/1992	1
82061-91405	VG40..E NO.2	09/1987 - 09/1990	1
82061-91404	VG40..E NO.1	09/1987 - 09/1990	1
82061-40010	VG4#..E,L NO.1	09/1990 - 12/1992	1
82081 - WIRING ASSY, DOOR LOCK
82081-40040	VG4#	12/1991 - 01/1997	1
82081-40030	VG4#	10/1990 - 12/1991	1
82081-91401	VG4#	09/1987 - 10/1990	1
82151 - WIRE, FRONT DOOR, RH
82151-40031	VG4#	03/1993 - 01/1997	1
82151-40030	VG4#	12/1992 - 03/1993	1
82151-40010	VG4#	09/1990 - 08/1992	1
82151-91403	VG40	09/1987 - 09/1990	1
82151-40011	VG4#	08/1992 - 12/1992	1
82152-40042	VG40..E ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾎﾝｶﾞﾜ)	03/1993 - 01/1997	1
82152 - WIRE, FRONT DOOR, LH
82152-40010	VG4#	09/1990 - 08/1992	1
82152-40040	VG40..E ｱﾘ(ﾘﾔﾊﾟﾜ-ﾍﾂﾄﾞﾚｽﾄ)	12/1992 - 03/1993	1
82152-91404	VG40	09/1987 - 09/1990	1
82152-40030	VG4#	12/1992 - 03/1993	1
82152-40032	VG4#	03/1993 - 01/1997	1
82152-40011	VG4#	08/1992 - 12/1992	1
82153 - WIRE, REAR DOOR, NO.1
82153-91407	VG40..E NO.2	09/1987 - 09/1990	1
82153-91404	VG40..D NO.1	09/1987 - 09/1990	1
82153-91406	VG40..E NO.1	09/1987 - 09/1990	1
82153-91405	VG40..D NO.2	09/1987 - 09/1990	1
82153-40050	VG40 NO.1	12/1992 - 03/1993	1
82157-40010	VG4# NO.2	09/1990 - 12/1992	1
82153-40051	VG40 NO.1	03/1993 - 01/1997	1
82153-40011	VG40 NO.1	08/1992 - 12/1992	1
82157-40040	VG4# NO.2	12/1992 - 01/1997	1
82154-40011	VG40	08/1992 - 12/1992	1
82153-40010	VG40 NO.1	09/1990 - 08/1992	1
82153 - WIRE, REAR DOOR, NO.1
82153-91407	VG40..E NO.2	09/1987 - 09/1990	1
82153-91404	VG40..D NO.1	09/1987 - 09/1990	1
82153-91406	VG40..E NO.1	09/1987 - 09/1990	1
82153-91405	VG40..D NO.2	09/1987 - 09/1990	1
82153-40050	VG40 NO.1	12/1992 - 03/1993	1
82157-40010	VG4# NO.2	09/1990 - 12/1992	1
82153-40051	VG40 NO.1	03/1993 - 01/1997	1
82153-40011	VG40 NO.1	08/1992 - 12/1992	1
82157-40040	VG4# NO.2	12/1992 - 01/1997	1
82154-40011	VG40	08/1992 - 12/1992	1
82153-40010	VG40 NO.1	09/1990 - 08/1992	1
82154 - WIRE, REAR DOOR, NO.2
82154-91407	VG40..D NO.1	09/1987 - 09/1990	1
82154-40010	VG40 NO.1	09/1990 - 08/1992	1
82154-91409	VG40..E NO.1	09/1987 - 09/1990	1
82154-91408	VG40..D NO.2	09/1987 - 09/1990	1
82158-40010	VG4# NO.2	09/1990 - 08/1992	1
82154-91410	VG40..E NO.2	09/1987 - 09/1990	1
82158-40040	VG4# NO.2	12/1992 - 12/1994	1
82154-40051	VG40 NO.1	03/1993 - 01/1997	1
82158-40010	VG40	08/1992 - 12/1992	1
82158-40041	VG4# NO.2	12/1994 - 01/1997	1
82154-40050	VG40 NO.1	12/1992 - 03/1993	1
82154 - WIRE, REAR DOOR, NO.2
82154-91407	VG40..D NO.1	09/1987 - 09/1990	1
82154-40010	VG40 NO.1	09/1990 - 08/1992	1
82154-91409	VG40..E NO.1	09/1987 - 09/1990	1
82154-91408	VG40..D NO.2	09/1987 - 09/1990	1
82158-40010	VG4# NO.2	09/1990 - 08/1992	1
82154-91410	VG40..E NO.2	09/1987 - 09/1990	1
82158-40040	VG4# NO.2	12/1992 - 12/1994	1
82154-40051	VG40 NO.1	03/1993 - 01/1997	1
82158-40010	VG40	08/1992 - 12/1992	1
82158-40041	VG4# NO.2	12/1994 - 01/1997	1
82154-40050	VG40 NO.1	12/1992 - 03/1993	1
82161 - WIRE, FLOOR
82161-91404	VG40..E	09/1987 - 09/1990	1
82161-40020	VG40..E	09/1990 - 12/1992	1
82161-40010	VG40..D	09/1990 - 12/1992	1
82161-40080	VG40..E	12/1992 - 01/1997	1
82161-91405	VG40..D	09/1987 - 09/1990	1
82161-40070	VG40..D	12/1992 - 01/1997	1
82162 - WIRE, FLOOR, NO.2
82162-91403	VG40..E	09/1987 - 09/1990	1
82162-91404	VG40..D	09/1987 - 09/1990	1
82162-40020	VG40..E	09/1990 - 12/1992	1
82162-40010	VG40..D	09/1990 - 12/1992	1
82162-40070	VG40..D	12/1992 - 01/1997	1
82162-40080	VG40..E	12/1992 - 01/1997	1
82171 - WIRE, ROOF, NO.1
82171-91403	VG40..D	09/1987 - 05/1989	1
82171-91406	VG40..E	05/1989 - 09/1990	1
82171-40010	VG40..D	09/1990 - 12/1992	1
82171-91407	VG40..D	05/1989 - 09/1990	1
82171-91402	VG40..E	09/1987 - 05/1989	1
82171-40050	VG40..D	12/1992 - 01/1997	1
82171-40020	VG40..E	09/1990 - 01/1997	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-40030	VG40..D	12/1992 - 01/1997	1
82181-40040	VG4#..E,L	12/1992 - 01/1997	1
82191 - WIRE, FRONT SEAT, RH
82191-40020	VG4#..E,L	12/1992 - 01/1997	1
82191-40010	VG40..D	12/1992 - 01/1997	1
82541-91411	VG4#..E,L	09/1987 - 12/1992	1
82541-91415	VG40..4FC..D	09/1987 - 12/1992	1
82192 - WIRE, FRONT SEAT, LH
82541-91416	VG40..4FC..D	09/1987 - 12/1992	1
82541-91414	VG4#..4FC..(E,L)	09/1987 - 12/1992	1
82192-40050	VG4#..4FC..(E,L)	12/1992 - 01/1997	1
82192-40030	VG40..D	12/1992 - 01/1997	1
82193 - WIRE, REAR SEAT, RH
82541-91406	VG40..D	09/1987 - 09/1990	1
82193-40060	VG40..D	12/1992 - 01/1997	1
82193-40060	VG4#..E,L RR CUSHION,RH	12/1992 - 01/1997	1
82193-40020	VG4#..E,L	09/1990 - 12/1992	1
82193-40010	VG40..D	09/1990 - 12/1992	1
82541-91408	VG40..E	09/1987 - 09/1990	1
82193-40070	VG4#..E,L RR BACK,RH	12/1992 - 01/1997	1
82194 - WIRE, REAR SEAT, LH
82541-91417	VG40..E	09/1987 - 09/1990	1
82194-40080	VG4#..E,L RR CUSHION,LH	12/1992 - 01/1997	1
82194-40010	VG40..D	09/1990 - 12/1992	1
82541-91418	VG40..D	09/1987 - 09/1990	1
82194-40090	VG4#..E,L RR BACK,LH	12/1992 - 01/1997	1
82194-40020	VG4#..E,L	09/1990 - 12/1992	1
82194-40080	VG40..D	12/1992 - 01/1997	1
82214A - WIRE, LAMP
82214-91403	VG4#	09/1987 - 01/1997	1
82214-40020	VG4#	12/1992 - 01/1997	2
82241C - WIRE, RELAY
82241-91401	VG4#	09/1987 - 12/1992	1
82241-40010	VG4#	12/1992 - 01/1997	1
Common parts
90119-06005

ILLUST NO. 3 OF 6(8910- )

Click highlighted areas on diagram

ｺﾝﾋﾟ-ﾀ,ﾌﾛｱNO.3,ｸﾛﾂｸﾜｲﾔ

Part #	Description	Period	Qty
82233 - WIRE, COMPUTER
82233-40050	VG4#..4FC..(E,L) FR CONSOL	12/1992 - 01/1997	1
82233-40040	VG4#..4FC..(E,L) FLOOR	12/1992 - 01/1997	1

Part #

Description

Qty

Price

82233 - WIRE, COMPUTER

82233-40050

VG4#..4FC..(E,L)

FR CONSOL

82233-40040

VG4#..4FC..(E,L)

FLOOR

ILLUST NO. 6 OF 6(9212- )

Click highlighted areas on diagram

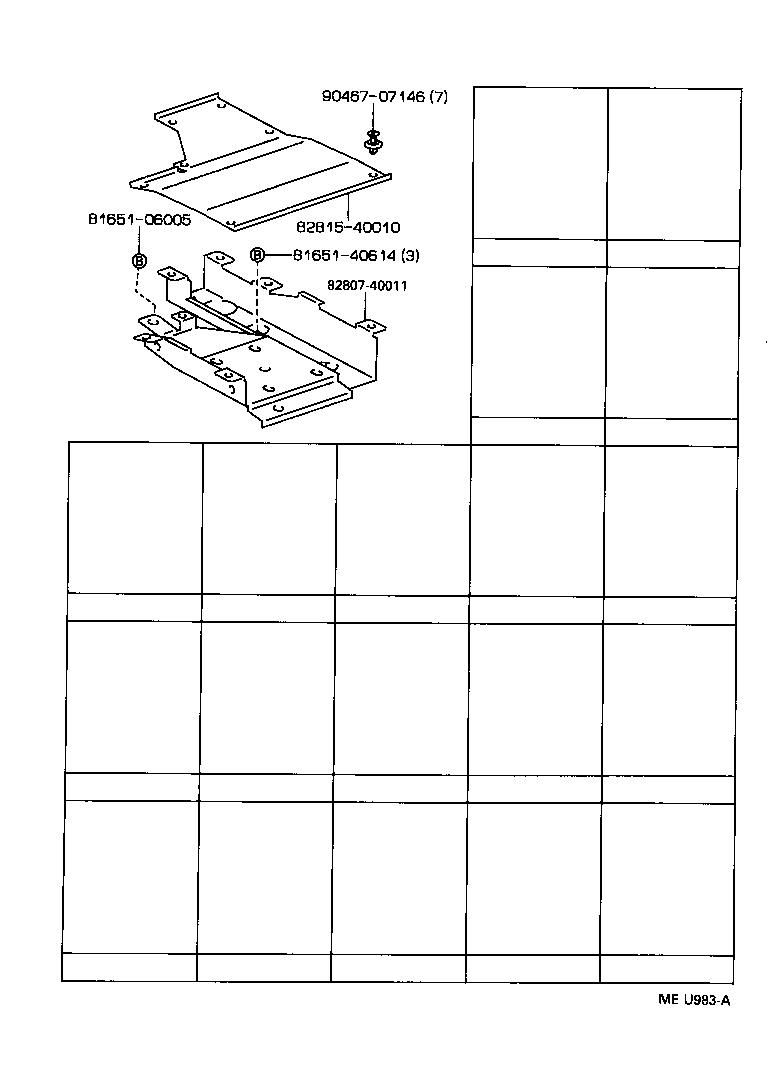

ﾜｲﾔﾌﾟﾛﾃｸﾀ,ﾜｲﾔﾌﾟﾛﾃｸﾀｶﾊﾞ-

Part #	Description	Period	Qty	Price
Common parts
81651-06005
81651-40614
82807-40011
82815-40010
90467-07146

ILLUST NO. 4 OF 6(8709- )

Click highlighted areas on diagram

ﾜｲﾔｸﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12220
82711-14110
82711-22270
82711-22490
82711-23010
82711-40020
82711-40030
82711-40040
82711-40070
82711-91404
85999-40100
90461-06143
90461-08183
90461-08202
90461-08414
90462-10075
90463-10010
90463-15385
90464-00156
90464-00355
90464-00562
90467-10007
