VG40-GEPGE (1987)
Toyota Century
ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-4003014 |
VG4#..E,L BLUE,TRIM8#,右側 |
1 | ||
| 81250-4003013 |
VG4#..E,L GRAY,TRIM1#,2#,右側 |
1 | ||
| 81250-40050J0 |
VG4#..E,L DARK BLUE,TRIM8#,右側 |
1 | ||
| 81250-4003005 |
VG4#..E,L BEIGE,TRIM3#,右側 |
1 | ||
| 81250-4004013 |
VG40..D GRAY,TRIM1#,右側 |
1 | ||
| 81290-40020E0 |
VG4#..E,L SABLE,TRIM4#,左側 |
1 | ||
| 81250-4004014 |
VG40..D BLUE,TRIM8#,右側 |
1 | ||
| 81290-4003005 |
VG4#..E,L BEIGE,TRIM3#,左側 |
1 | ||
| 81290-4003014 |
VG4#..E,L BLUE,TRIM8#,左側 |
1 | ||
| 81290-4004013 |
VG40..D GRAY,TRIM1#,左側 |
1 | ||
| 81290-40020B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 81250-40050B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 81290-4004014 |
VG40..D BLUE,TRIM8#,左側 |
1 | ||
| 81250-40060B0 |
VG40..D SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 81290-4003013 |
VG4#..E,L GRAY,TRIM1#,2#,左側 |
1 | ||
| 81250-40060J0 |
VG40..D DARK BLUE,TRIM8#,右側 |
1 | ||
| 81250-40050E0 |
VG4#..E,L SABLE,TRIM4#,右側 |
1 | ||
| 81290-40050B0 |
VG40..D SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 81290-40020J0 |
VG4#..E,L DARK BLUE,TRIM8#,左側 |
1 | ||
| 81290-40050J0 |
VG40..D DARK BLUE,TRIM8#,左側 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-12005 |
VG4# 12V 8W |
4 | ||
| 90981-12020 |
VG4# 12V 8W |
4 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-12005 |
VG4# 12V 8W |
4 | ||
| 90981-12020 |
VG4# 12V 8W |
4 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-40040 |
VG4# |
1 | ||
| 81260-22030 |
VG4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-4003013 |
VG4# GRAY,TRIM1# |
1 | ||
| 81260-4003014 |
VG4# BLUE,TRIM8# |
1 | ||
| 81260-4003005 |
VG4#..E,L BEIGE,TRIM3# |
1 | ||
| 81260-4003013 |
VG40..D GRAY,TRIM1# |
1 | ||
| 81260-4003013 |
VG4#..E,L GRAY,TRIM1#,2# |
1 | ||
| 81260-40030E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
VG4# 12V 10W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
VG4# 12V 10W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3010024 |
VG4# BLUE,TRIM8# |
1 | ||
| 81261-3010013 |
VG4#..E,L GRAY,TRIM1#,2# |
1 | ||
| 81261-30100E1 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 81261-3010013 |
VG40..D GRAY,TRIM1# |
1 | ||
| 81261-3010013 |
VG4# GRAY,TRIM1# |
1 | ||
| 81261-3010015 |
VG4#..E,L BEIGE,TRIM3# |
1 | ||
| 81280 - LAMP ASSY, ENGINE ROOM | ||||
| 81280-30031 |
VG4# |
2 | ||
| 81280-40020 |
VG4# |
1 | ||
| 81280B - BULB, ENGINE ROOM LAMP | ||||
| 99132-13060 |
VG4# 12V 6W |
1 | ||
| 99132-13060 |
VG4# 12V 6W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30070 |
VG40 |
1 | ||
| 81330-40020 |
VG4# |
1 | ||
| 81330-40010 |
VG4# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30070 |
VG40 |
1 | ||
| 81330-40020 |
VG4# |
1 | ||
| 81330-40010 |
VG4# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
VG4# 12V 5W |
1 | ||
| 99132-13060 |
VG4# 12V 6W |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
VG4# 12V 5W |
1 | ||
| 99132-13060 |
VG4# 12V 6W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81281-30010 |
VG4# |
1 | ||
| 81331-50010 |
VG4# |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81281-30010 |
VG4# |
1 | ||
| 81331-50010 |
VG4# |
1 | ||
| 81332 - PACKING, LUGGAGE COMPARTMENT LAMP LENS | ||||
| 81282-30010 |
VG4# |
1 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81380-40010 |
VG4# |
4 | ||
| 81380-40020E0 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 81380-40020J0 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 81380-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81380-40010 |
VG4# |
4 | ||
| 81380-40020E0 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 81380-40020J0 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 81380-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 81380E - BULB (FOR STEP LAMP) | ||||
| 90981-11018 |
VG4# |
4 | ||
| 90981-11018 |
VG4# |
2 | ||
| 81380E - BULB (FOR STEP LAMP) | ||||
| 90981-11018 |
VG4# |
4 | ||
| 90981-11018 |
VG4# |
2 | ||
| 81380E - BULB (FOR STEP LAMP) | ||||
| 90981-11018 |
VG4# |
4 | ||
| 90981-11018 |
VG4# |
2 | ||
| 81380H - LAMP ASSY, STEP | ||||
| 81380-40030 |
VG4# |
2 | ||
| 81380J - CAP, INSTRUMET PANEL UNDER LAMP | ||||
| 81384-40020 |
VG4# |
1 | ||
| 81380N - CAP, STEP LAMP | ||||
| 81384-40020 |
VG4# |
1 | ||
| 81380N - CAP, STEP LAMP | ||||
| 81384-40020 |
VG4# |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-20011 |
VG4# |
1 | ||
| 81870-40010 |
VG4# |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-23010 | ||||
| 93315-14010 | ||||
| 93540-15012 | ||||
| 93540-24016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

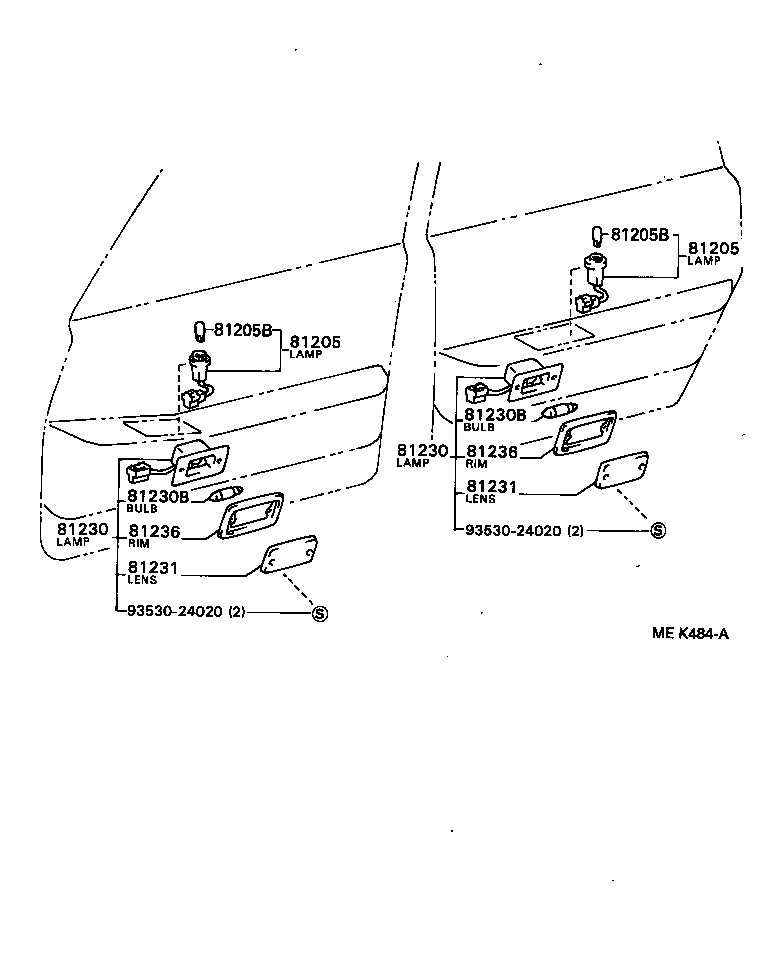

ILLUST NO. 2 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81205-40020 |
VG4# |
4 | ||
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81205-40020 |
VG4# |
4 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11018 |
VG4# 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30051 |
VG4# |
4 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30051 |
VG4# |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
VG4# 12V 5W |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
VG4# 12V 5W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30010 |
VG4# |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30010 |
VG4# |
4 | ||
| 81236 - RIM, COURTESY LAMP | ||||
| 81236-30010 |
VG4# |
4 | ||
| 81236 - RIM, COURTESY LAMP | ||||
| 81236-30010 |
VG4# |
4 | ||
| Common parts | ||||
| 93530-24020 | ||||
