VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

Click highlighted areas on diagram

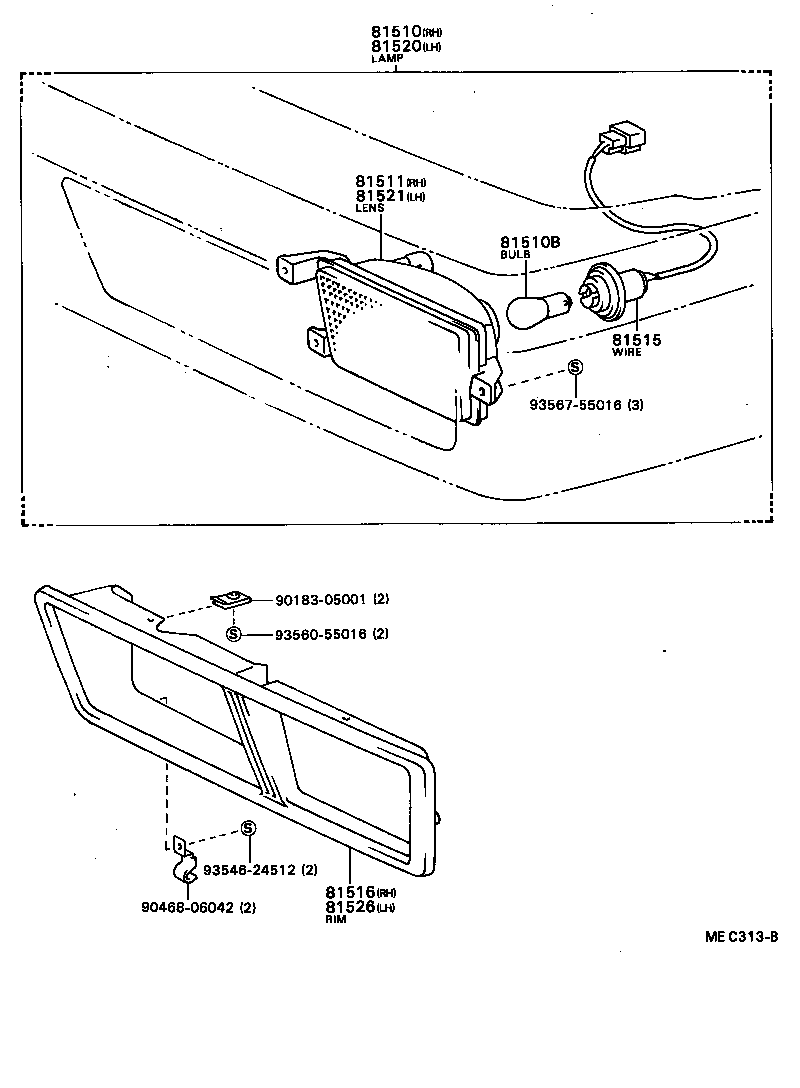

diagram 81510 81510B 81511 81515 81516 81520 81521 81526 9018305001 9046806042 9354624512 9356055016 9356755016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-49045

VG4#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

VG4#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-40040

VG4#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-40040

VG4#

 2
81516 - RIM, FRONT TURN SIGNAL LAMP, RH
81516-91402

VG4#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-49025

VG4#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-40020

VG4#

 1
81526 - RIM, FRONT TURN SIGNAL LAMP, LH
81526-91402

VG4#

 1
Common parts
90183-05001
90468-06042
93546-24512
93560-55016
93567-55016
