VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

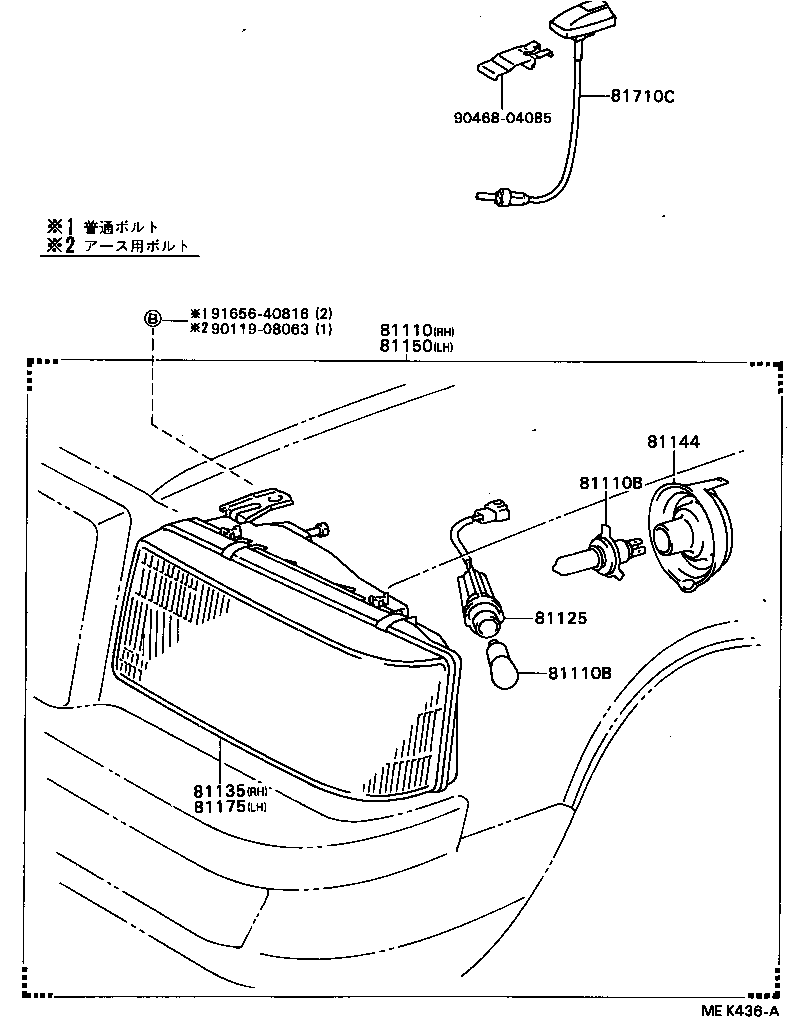

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81125 81135 81144 81150 81175 81710C 9011908063 9046804085 9165640816
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-91401

VG4#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

VG4#

12V 60/55W,*HAL *WH

 2
90981-13036

VG4#

12V 35/5W

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

VG4#

12V 60/55W,*HAL *WH

 2
90981-13036

VG4#

12V 35/5W

 2
81125 - CORD, HEADLAMP
81125-91401

VG4#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-91401

VG4#

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

VG4#

 2
81150 - HEADLAMP ASSY, LH
81150-91401

VG4#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-91401

VG4#

 1
81710C - MARKER ASSY, FENDER
81720-91401

VG4#

左側

 1
81710-91403

VG4#

右側

 1
Common parts
90119-08063
90468-04085
91656-40816
