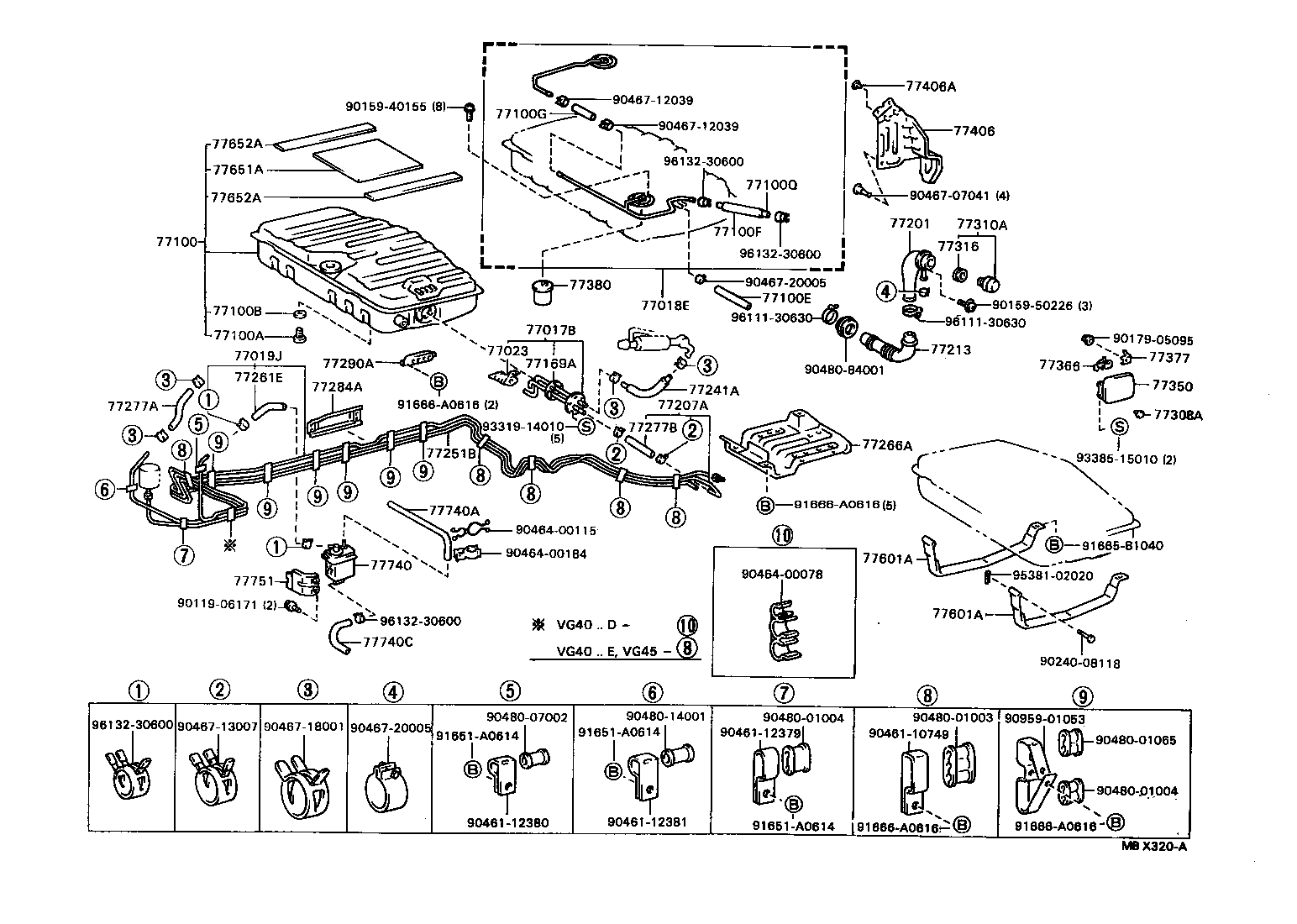

VG40-GEPGE (1987)
Toyota Century
(8709-9212)VG40 ; (9009-9212)VG45
VG45=ﾘﾑｼﾞﾝL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61781D - BRACKET, FUEL VAPOR LIQUID SEPARATOR | ||||
| 61781-91401 |
VG4# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-91401 |
VG4# |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-91403 |
VG40 |
1 | ||
| 77019-40020 |
VG40 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-20025 |
VG4# 長さ=210 |
4 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-20025 |
VG4# 長さ=210 |
4 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-20025 |
VG4# 長さ=210 |
4 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-20025 |
VG4# 長さ=210 |
4 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06080 |
VG40 |
1 | ||
| 95333-06070 |
VG4# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
VG4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-40902 |
VG4# |
1 | ||
| 77001-40900 |
VG4# |
1 | ||
| 77001-91496 |
VG4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
VG4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
VG4# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-12113 |
VG4# 長さ=840 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-12113 |
VG4# 長さ=840 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-12114 |
VG4# 長さ=840 |
1 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 90445-22020 |
VG4# 長さ=550 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-12114 |
VG4# 長さ=840 |
1 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 90445-22020 |
VG4# 長さ=550 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
VG4# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91405 |
VG4# |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-91403 |
VG40 |
1 | ||
| 77207-40020 |
VG40 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91404 |
VG4# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77049-91401 |
VG4# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-91410 |
VG40 |
1 | ||
| 77251-40020 |
VG40 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
VG4#..E,L *H,L=300 |
1 | ||
| 95333-06030 |
VG4# *H,L=300 |
1 | ||
| 95333-06030 |
VG40 *H,L=300 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77038-91401 |
VG4# |
1 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-13010 |
VG4# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95336-08030 |
VG4# *H,L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
VG4# 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
VG40 長さ=200,内径=8 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-91403 |
VG4# |
1 | ||
| 77290A - GROMMET ASSY, FUEL HOSE | ||||
| 77290-40010 |
VG4# |
1 | ||
| 77290-91600 |
VG4# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06026 |
VG4# |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
VG4# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
VG4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-91401 |
VG4# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
VG4# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
VG4# |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-91401 |
VG4# |
1 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-0601747 |
VG4#..E,L BEIGE,TRIM3# |
4 | ||
| 90467-0601751 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
4 | ||
| 90467-0601711 |
VG4#..E,L BLACK,TRIM2# |
4 | ||
| 90467-0601722 |
VG4#..E,L MAROON,TRIM3# |
4 | ||
| 90467-0601701 |
VG4#..E,L BLACK,TRIM1#,2#,3#,8# |
4 | ||
| 90467-0601701 |
VG40..D BLACK,TRIM1#,8# |
4 | ||
| 90467-0601757 |
VG4#..E,L GRAY,TRIM1#,2# |
4 | ||
| 90467-0601751 |
VG40..D GRAY,TRIM1#,8# |
4 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
4 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4# |
4 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
4 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8# |
4 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
4 | ||
| 90467-0601757 |
VG40..D GRAY,TRIM1# |
4 | ||
| 90467-07146 |
VG4# |
4 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8# |
4 | ||
| 90467-0704143 |
VG4# SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4# |
4 | ||
| 90467-0601737 |
VG4# BLUE,TRIM8# |
4 | ||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-91403 |
VG4# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-91403 |
VG4# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-91401 |
VG4# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG4# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG4# |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-40040 |
VG4# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92004 |
VG4# 長さ=950 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12241 |
VG4# 長さ=750 |
1 | ||
| 90445-12116 |
VG40 長さ=500 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-40020 |
VG4# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90159-50226 | ||||
| 90179-05095 | ||||
| 90240-08118 | ||||
| 90461-10749 | ||||
| 90461-12379 | ||||
| 90461-12380 | ||||
| 90461-12381 | ||||
| 90464-00078 | ||||
| 90464-00115 | ||||
| 90464-00184 | ||||
| 90467-07041 | ||||
| 90467-13007 | ||||
| 90467-18001 | ||||
| 90467-20005 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01065 | ||||
| 90480-07002 | ||||
| 90480-14001 | ||||
| 90480-84001 | ||||
| 90480-A0614 | ||||
| 90959-01053 | ||||
| 91651-A0614 | ||||
| 91665-B1040 | ||||
| 91666-A0616 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 94180-40600 | ||||
| 95381-02020 | ||||
| 96111-30630 | ||||
| 96132-30600 | ||||
(9212- )
VG45=ﾘﾑｼﾞﾝL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-91401 |
VG4# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-40010 |
VG4# |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-91403 |
VG40 |
1 | ||
| 77019-40020 |
VG40 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
VG4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-40902 |
VG4# |
1 | ||
| 77001-40900 |
VG4# |
1 | ||
| 77001-91496 |
VG4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
VG4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
VG4# |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-12114 |
VG4# 長さ=840 |
1 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 90445-22020 |
VG4# 長さ=550 |
1 | ||
| 77100F - HOSE, FUEL, NO.3(FOR FUEL TANK) | ||||
| 90445-20025 |
VG4# 長さ=210 |
1 | ||
| 77100G - HOSE, FUEL, NO.4(FOR FUEL TANK) | ||||
| 95333-06010 |
VG4# *H,L=100 |
1 | ||
| 77100Q - HOSE, FUEL, NO.5(FOR FUEL TANK) | ||||
| 95333-06030 |
VG4# *H,L=300 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
VG4# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91405 |
VG4# |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-91403 |
VG40 |
1 | ||
| 77207-40020 |
VG40 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91404 |
VG4# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77049-91401 |
VG4# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-91410 |
VG40 |
1 | ||
| 77251-40020 |
VG40 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
VG4#..E,L *H,L=300 |
1 | ||
| 95333-06030 |
VG4# *H,L=300 |
1 | ||
| 95333-06030 |
VG40 *H,L=300 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77038-91401 |
VG4# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95336-08030 |
VG4# *H,L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
VG4# 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
VG40 長さ=200,内径=8 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-91403 |
VG4# |
1 | ||
| 77290A - GROMMET ASSY, FUEL HOSE | ||||
| 77290-40010 |
VG4# |
1 | ||
| 77290-91600 |
VG4# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06026 |
VG4# |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
VG4# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
VG4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-91401 |
VG4# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
VG4# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
VG4# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
VG4# |
2 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-91401 |
VG4# |
1 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-0601747 |
VG4#..E,L BEIGE,TRIM3# |
4 | ||
| 90467-0601751 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
4 | ||
| 90467-0601711 |
VG4#..E,L BLACK,TRIM2# |
4 | ||
| 90467-0601722 |
VG4#..E,L MAROON,TRIM3# |
4 | ||
| 90467-0601701 |
VG4#..E,L BLACK,TRIM1#,2#,3#,8# |
4 | ||
| 90467-0601701 |
VG40..D BLACK,TRIM1#,8# |
4 | ||
| 90467-0601757 |
VG4#..E,L GRAY,TRIM1#,2# |
4 | ||
| 90467-0601751 |
VG40..D GRAY,TRIM1#,8# |
4 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
4 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4# |
4 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
4 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8# |
4 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
4 | ||
| 90467-0601757 |
VG40..D GRAY,TRIM1# |
4 | ||
| 90467-07146 |
VG4# |
4 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8# |
4 | ||
| 90467-0704143 |
VG4# SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4# |
4 | ||
| 90467-0601737 |
VG4# BLUE,TRIM8# |
4 | ||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8# |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-91403 |
VG4# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-91403 |
VG4# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-91401 |
VG4# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG4# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG4# |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-40040 |
VG4# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92004 |
VG4# 長さ=950 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12241 |
VG4# 長さ=750 |
1 | ||
| 90445-12116 |
VG40 長さ=500 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-40020 |
VG4# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90159-40155 | ||||
| 90159-50226 | ||||
| 90179-05095 | ||||
| 90240-08118 | ||||
| 90461-10749 | ||||
| 90461-12379 | ||||
| 90461-12380 | ||||
| 90461-12381 | ||||
| 90464-00078 | ||||
| 90464-00115 | ||||
| 90464-00184 | ||||
| 90467-07041 | ||||
| 90467-12039 | ||||
| 90467-13007 | ||||
| 90467-18001 | ||||
| 90467-20005 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01065 | ||||
| 90480-07002 | ||||
| 90480-14001 | ||||
| 90480-84001 | ||||
| 90959-01053 | ||||
| 91651-A0614 | ||||
| 91665-B1040 | ||||
| 91666-A0616 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 95381-02020 | ||||
| 96111-30630 | ||||
| 96132-30600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
