VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

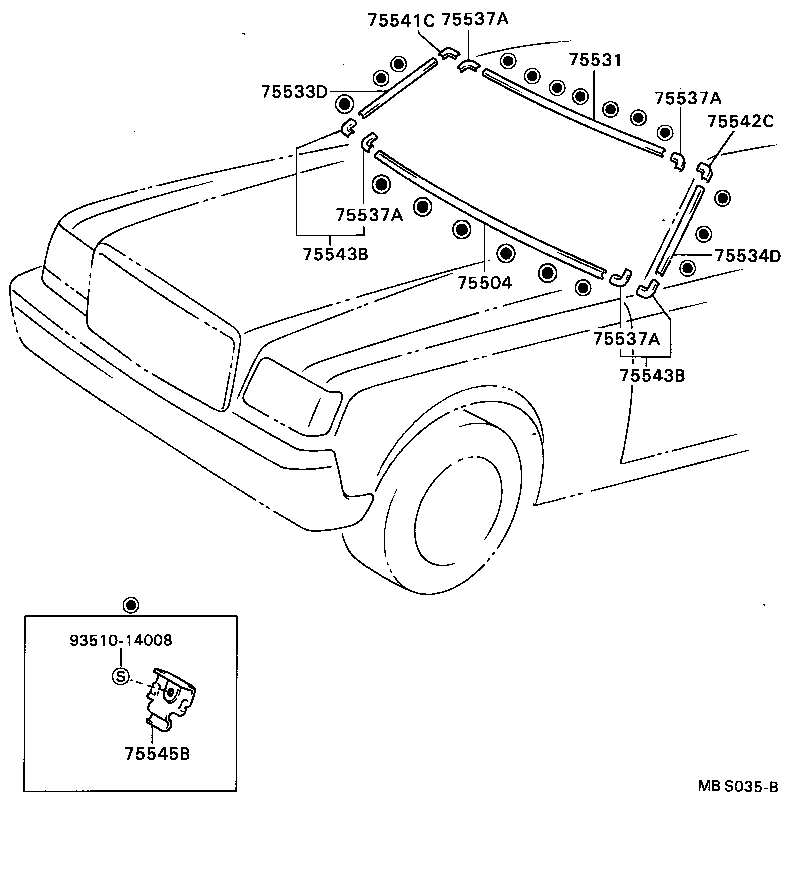

Click highlighted areas on diagram

diagram 75504 75531 75533D 75534D 75537A 75537A 75537A 75537A 75541C 75542C 75543B 75543B 75545B 9351014008
Part # Description Qty Price
75504 - MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75504-91403

VG4#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-91405

VG4#

 1
75533D - MOULDING, WINDSHIELD, OUTSIDE RH
75533-91405

VG4#

 1
75534D - MOULDING, WINDSHIELD, OUTSIDE LH
75534-91405

VG4#

 1
75537A - PAD, WINDSHIELD MOULDING
75535-91402

VG4#

 5
75537A - PAD, WINDSHIELD MOULDING
75535-91402

VG4#

 5
75537A - PAD, WINDSHIELD MOULDING
75535-91402

VG4#

 5
75537A - PAD, WINDSHIELD MOULDING
75535-91402

VG4#

 5
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-91405

VG4#

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-91406

VG4#

 1
75543B - COVER, WINDSHIELD MOULDING JOINT, LOWER
75544-91402

VG4#

左側

 1
75543-91403

VG4#

右側

 1
75543B - COVER, WINDSHIELD MOULDING JOINT, LOWER
75544-91402

VG4#

左側

 1
75543-91403

VG4#

右側

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-91403

VG4#

 19
Common parts
93510-14008
