VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

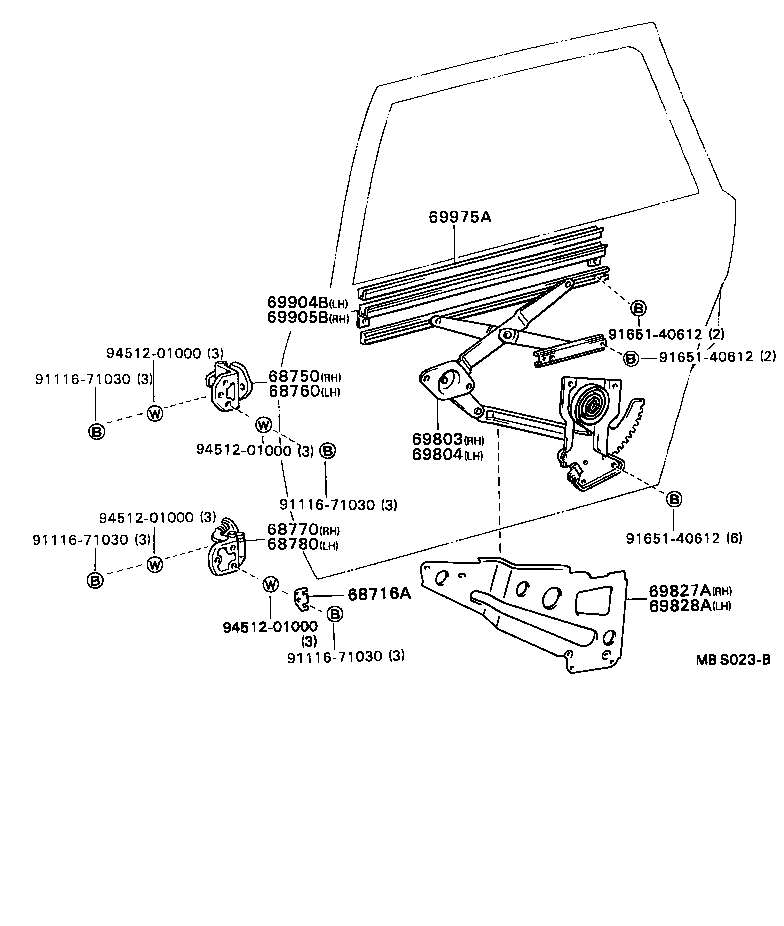

Click highlighted areas on diagram

diagram 68716A 68750 68760 68770 68780 69803 69804 69827A 69828A 69904B 69905B 69975A 9111671030 9111671030 9111671030 9111671030 9165140612 9165140612 9165140612 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-40010

VG4#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-40010

VG4#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-40010

VG4#

 1
68770-40011

VG4#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-40010

VG4#

 1
68780-40011

VG4#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-40041

VG4#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-40041

VG4#

 1
69827A - REINFORCEMENT, REAR DOOR REGULATOR, RH
69827-40021

VG4#

 1
69828A - REINFORCEMENT, REAR DOOR REGULATOR, LH
69828-40021

VG4#

 1
69904B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-91401

VG4#

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-91401

VG4#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-91403

VG4#

 2
Common parts
91116-71030
91651-40612
94512-01000
