VG40-GEPGE (1987)
Toyota Century

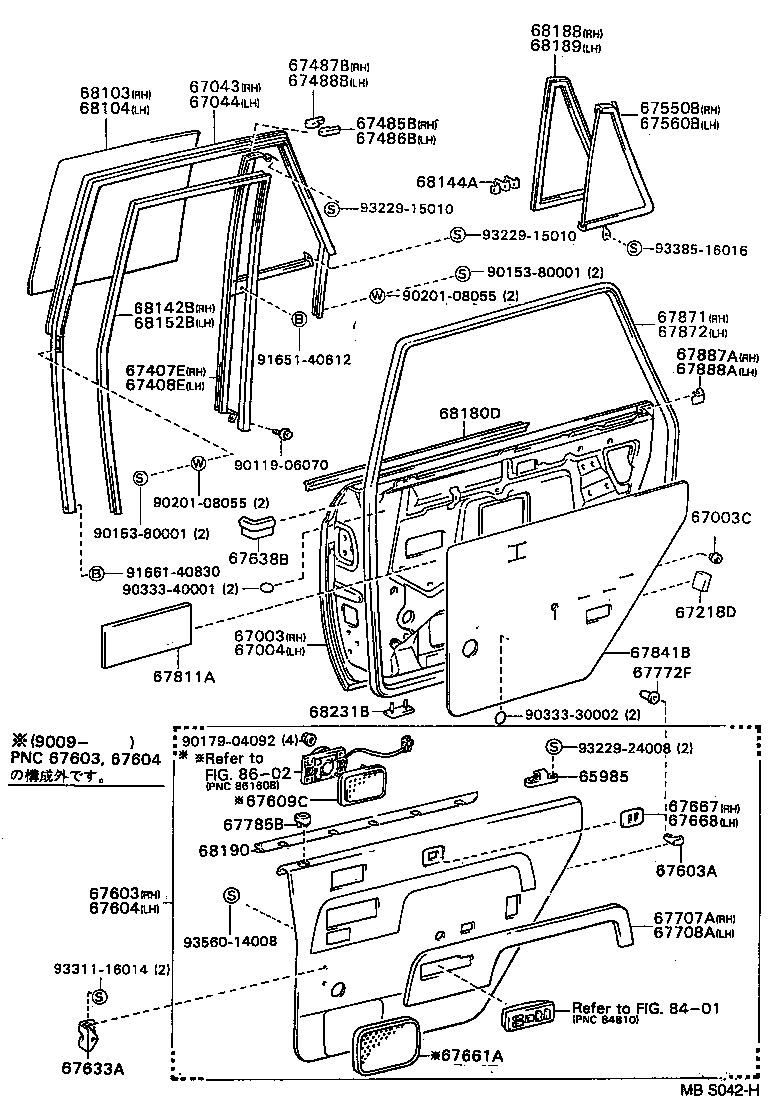

ILLUST NO. 1 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

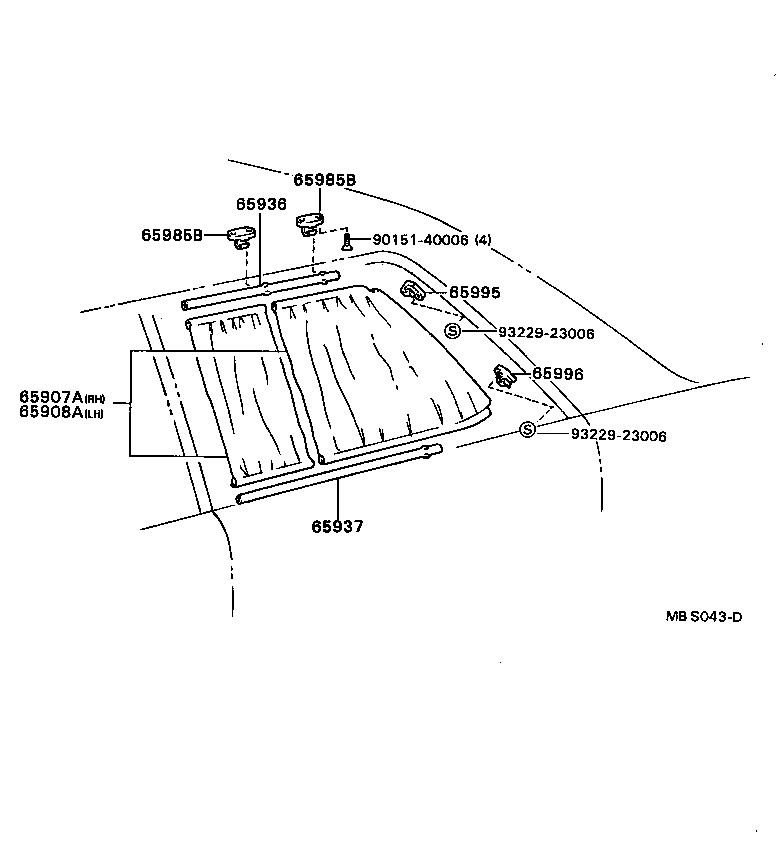

| 65985 - HOLDER, CURTAIN RAIL | ||||
| 65985-91404 |
VG40;VG45..4FC |
4 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-91425 |
VG40 |
1 | ||
| 67003-40010 |
VG40 |
1 | ||
| 67003-91428 |
VG40 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09033 |
VG4# ﾀｲﾌﾟ A |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-91426 |
VG40 |
1 | ||
| 67004-40010 |
VG40 |
1 | ||
| 67004-91429 |
VG40 |
1 | ||
| 67043 - FRAME SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 67043-91410 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67043-91410 |
VG40..E |
1 | ||
| 67043-91413 |
VG40..E ﾅｼ(ｶ-ﾃﾝ) & ﾘﾑｼﾞﾝALL |
1 | ||
| 67043-40040 |
VG40 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67043-91411 |
VG40..E ﾅｼ(ｶ-ﾃﾝ) |
1 | ||
| 67043-91411 |
VG40 |
1 | ||
| 67043-91410 |
VG40 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67043-91411 |
VG40..D |
1 | ||
| 67043-40030 |
VG40 |
1 | ||
| 67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 67044-91410 |
VG40..E |
1 | ||
| 67044-91410 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67044-91411 |
VG40..D |
1 | ||
| 67044-91413 |
VG40..E ﾅｼ(ｶ-ﾃﾝ) & ﾘﾑｼﾞﾝALL |
1 | ||
| 67044-91410 |
VG40 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67044-91411 |
VG40..E ﾅｼ(ｶ-ﾃﾝ) |
1 | ||
| 67044-40050 |
VG40 ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 67044-40030 |
VG40 |
1 | ||
| 67044-91411 |
VG40 |
1 | ||
| 67218D - STOP, QUARTER WINDOW, LOWER REAR | ||||
| 67218-91D01 |
VG4# |
2 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-91402 |
VG4# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-91401 |
VG4# |
1 | ||
| 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH | ||||
| 67485-91402 |
VG4# |
1 | ||
| 67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH | ||||
| 67486-91403 |
VG4# |
1 | ||
| 67487B - SEAL, REAR DOOR DIVISION BAR, RH | ||||
| 67487-91402 |
VG4# |
1 | ||
| 67488B - SEAL, REAR DOOR DIVISION BAR, LH | ||||
| 67488-91401 |
VG4# |
1 | ||
| 67550B - WINDOW ASSY, REAR DOOR VENTILATING, RH | ||||
| 67550-91405 |
VG40..E |
1 | ||
| 67550-91407 |
VG40..E |
1 | ||
| 67550-91410 |
VG40..E |
1 | ||
| 67550-91405 |
VG40..D |
1 | ||
| 67550-91407 |
VG40..E |
1 | ||
| 67560B - WINDOW ASSY, REAR DOOR VENTILATING, LH | ||||
| 67560-91406 |
VG40..E |
1 | ||
| 67560-91407 |
VG40..E |
1 | ||
| 67560-91410 |
VG40..E |
1 | ||
| 67560-91407 |
VG40..E |
1 | ||
| 67560-91406 |
VG40..D |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-9144001 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) & ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),BLACK,TRIM2# |
1 | ||
| 67630-9143903 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9144301 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-9144203 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9144204 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67630-9144403 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9144302 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67630-9144002 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) & ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67630-9143902 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67630-9146102 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67630-9144103 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9146004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67630-9144202 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67630-9146003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9144404 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-9146201 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) & ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),BLACK,TRIM2# |
1 | ||
| 67630-9146103 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9146501 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-9143904 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-9146104 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-9146402 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67630-9146403 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9146303 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9144104 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67630-9146202 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) & ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67630-9146502 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67630-9146404 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67630-9146304 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-9146203 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) & ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-9146503 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4001003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4001004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67630-4003001 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-4003003 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4003002 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67630-4002003 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4005002 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67630-4002002 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67630-4002004 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67630-4004004 |
VG40..D ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-4006002 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67630-4005003 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4006003 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4004003 |
VG40..D ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-4006001 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67630-4005004 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-40170J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67630-40170B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67630-40190B0 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67630-40200E0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 67630-40200B0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-40190E0 |
VG40..E SABLE,TRIM4# |
1 | ||
| 67630-40210J1 |
VG40..D ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-40190J0 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67630-40230B0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-40220J0 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67630-40220B0 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-40220E0 |
VG40..E ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),SABLE,TRIM4# |
1 | ||
| 67630-40230E0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SABLE,TRIM4# |
1 | ||
| 67630-40210B0 |
VG40..D ｱﾘ(ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-20022 |
VG40 |
5 | ||
| 67771-20022 |
VG40 |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-9143904 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-9143903 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9143902 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67640-9144403 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9144002 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67640-9144302 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),BLACK,TRIM3# |
1 | ||
| 67640-9146003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9144204 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67640-9146202 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67640-9144001 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67640-9144202 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67640-9144103 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9146102 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67640-9144203 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9146103 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9146402 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67640-9144104 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67640-9146404 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67640-9146004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67640-9146304 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-9146104 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-9146201 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67640-9146503 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9144301 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),SHADOW GRAY,TRIM2# |
1 | ||
| 67640-9146403 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9146203 |
VG40..E ﾅｼ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9146501 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),BLACK,TRIM2# |
1 | ||
| 67640-9146502 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),MAROON,TRIM3# |
1 | ||
| 67640-9146303 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-9144404 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-4001004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67640-4004003 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-4003003 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-4006001 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 67640-4005003 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-4005004 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-4002002 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67640-4002004 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67640-4004004 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-4003001 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),BLACK,TRIM2# |
1 | ||
| 67640-4006002 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 67640-4002003 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67640-4005002 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),MAROON,TRIM3# |
1 | ||
| 67640-4003002 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),MAROON,TRIM3# |
1 | ||
| 67640-4006003 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-4001003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40170J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 67640-40200B0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40190B0 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40190E0 |
VG40..E SABLE,TRIM4# |
1 | ||
| 67640-40170B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40240B0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40190J0 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 67640-40220J0 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-40200E0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ),SABLE,TRIM4# |
1 | ||
| 67640-40230B0 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40220E0 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SABLE,TRIM4# |
1 | ||
| 67640-40210J0 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-40220B0 |
VG40..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40230E0 |
VG40..E ｱﾘ(ｶ-ﾃﾝ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 67640-40240E0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SABLE,TRIM4# |
1 | ||
| 67640-40260E0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ & ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SABLE,TRIM4# |
1 | ||
| 67640-40270E0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾗｳﾝｼﾞ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 67640-40210B0 |
VG40..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40250B0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40240J0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),DARK BLUE,TRIM8# |
1 | ||
| 67640-40260B0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ & ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-40260J0 |
VG40..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾘﾔ ﾄﾞｱ ｶ-ﾃﾝ & ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ),DARK BLUE,TRIM8# |
1 | ||
| 67640-40250E0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SABLE,TRIM4# |
1 | ||
| 67640-40270B0 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ & ﾗｳﾝｼﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67609-9140201 |
VG40..E BLACK,TRIM2# |
2 | ||
| 67609-9140204 |
VG40..E DARK BLUE,TRIM8# |
2 | ||
| 67609-9140223 |
VG40..E SHADOW GRAY,TRIM1# |
2 | ||
| 86269-4001004 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 67609-9140203 |
VG40..E SHADOW GRAY,TRIM1# |
2 | ||
| 86269-4001002 |
VG4#..E,L MAROON,TRIM3# |
2 | ||
| 86269-40010E0 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 86269-40010B0 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 67609-9140202 |
VG40..E MAROON,TRIM3# |
2 | ||
| 86269-4001001 |
VG4#..E,L BRACK,TRIM2# |
2 | ||
| 86269-4001003 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 67609-9140213 |
VG40..E SHADOW GRAY,TRIM1# |
2 | ||
| 67633A - RETAINER, REAR DOOR TRIM, UPPER | ||||
| 67633-91412 |
VG4# |
2 | ||
| 67638B - WEATHERSTRIP, REAR DOOR CORNER | ||||
| 67638-91402 |
VG40 |
3 | ||
| 67638-91402 |
VG4# |
2 | ||
| 67661A - BASE, REAR DOOR SPEAKER GRILLE | ||||
| 67661-9140301 |
VG40..E BLACK,TRIM2# |
1 | ||
| 67661-9140304 |
VG40..E DARK BLUE,TRIM8# |
2 | ||
| 67661-9140303 |
VG40..E SHADOW GRAY,TRIM1# |
2 | ||
| 67661-9140303 |
VG40..E SHADOW GRAY,TRIM1# |
1 | ||
| 67661-9140304 |
VG40..E DARK BLUE,TRIM8# |
1 | ||
| 86269-40020D0 |
VG4#..E,L MAROON,TRIM3# |
2 | ||
| 67661-9140302 |
VG40..E MAROON,TRIM3# |
1 | ||
| 67661-9140302 |
VG40..E MAROON,TRIM3# |
2 | ||
| 86269-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 86269-40020R8 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 86269-40020E0 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 67661-9140301 |
VG40..E BLACK,TRIM2# |
2 | ||
| 86269-40020P0 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 86269-40020J0 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 86269-4002022 |
VG4#..E,L BLACK,TRIM2# |
2 | ||
| 67707A - ORNAMENT SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67707-91412 |
VG40 |
1 | ||
| 67707-91410 |
VG4# |
1 | ||
| 67707-91409 |
VG40 |
1 | ||
| 67708A - ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67708-91412 |
VG4# |
1 | ||
| 67708-91411 |
VG40 |
1 | ||
| 67708-91414 |
VG40 |
1 | ||
| 67772F - CAP, REAR DOOR TRIM RETAINER | ||||
| 67772-20021 |
VG4# |
10 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-91401 |
VG40 |
1 | ||
| 67785-91401 |
VG4# |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-91407 |
VG4# |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-91401 |
VG40 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-91401 |
VG40 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-91402 |
VG4# |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-91403 |
VG4# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-91406 |
VG40..D *TT,厚さ=4.0 |
1 | ||
| 68113-91411 |
VG40..E *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68113-91406 |
VG40..E *TT,厚さ=4.0 |
1 | ||
| 68113-91407 |
VG40..E *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-91407 |
VG40..E *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-91406 |
VG40..E *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-91406 |
VG40..E *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-91405 |
VG40..E *TT,厚さ=4.0 |
1 | ||
| 68114-91405 |
VG40..D *TT,厚さ=4.0 |
1 | ||
| 68114-91410 |
VG40..E *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-91409 |
VG40 |
1 | ||
| 68144A - RETAINER, QUARTER WINDOW NO.2 GLASS | ||||
| 68144-91403 |
VG4#..E,L;VG40..4FC..D |
2 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-91403 |
VG40 |
1 | ||
| 68180D - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER | ||||
| 68180-91406 |
VG40 |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-40010 |
VG4#..E,L;VG40..4FC..D |
1 | ||
| 68188-40030 |
VG4# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-40010 |
VG4#..E,L;VG40..4FC..D |
1 | ||
| 68189-40030 |
VG4# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-91407 |
VG40 |
2 | ||
| 68190-91407 |
VG40 |
2 | ||
| 68231B - SEAL, REAR DOOR DRAIN HOLE DUST | ||||
| 68231-91401 |
VG4# |
4 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90153-80001 | ||||
| 90179-04092 | ||||
| 90201-08055 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 91651-40612 | ||||
| 91661-40830 | ||||
| 93229-15010 | ||||
| 93229-24008 | ||||
| 93311-16014 | ||||
| 93385-16016 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8602 | ||||
ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907A - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-40010 |
VG40 |
1 | ||
| 65907-91409 |
VG40 |
1 | ||
| 65907-91404 |
VG40 |
1 | ||
| 65907-91403 |
VG40 |
1 | ||
| 65907-91405 |
VG40..4FC..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 65908A - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-91405 |
VG40..4FC..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
1 | ||
| 65908-91408 |
VG40 |
1 | ||
| 65908-91404 |
VG40 |
1 | ||
| 65908-40010 |
VG40 |
1 | ||
| 65908-91403 |
VG40 |
1 | ||
| 65936 - RAIL, CURTAIN, NO.1 | ||||
| 65936-91405 |
VG40 |
2 | ||
| 65936-91406 |
VG40..4FC..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
2 | ||
| 65937 - RAIL, CURTAIN, NO.2 | ||||
| 65937-91408 |
VG40..4FC..E ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｶ-ﾃﾝ) |
2 | ||
| 65937-91407 |
VG40 |
2 | ||
| 65937-91407 |
VG40 |
1 | ||
| 65985B - HOLDER, CURTAIN RAIL, UPPER | ||||
| 65985-91404 |
VG4# |
4 | ||
| 65985-91404 |
VG40;VG45..4FC |
4 | ||
| 65985B - HOLDER, CURTAIN RAIL, UPPER | ||||
| 65985-91404 |
VG4# |
4 | ||
| 65985-91404 |
VG40;VG45..4FC |
4 | ||
| 65995 - CLAMP, CURTAIN RAIL, NO.1 | ||||
| 65995-91402 |
VG4# |
2 | ||
| 65995-91402 |
VG40;VG45..4FC |
2 | ||
| 65996 - CLAMP, CURTAIN RAIL, NO.2 | ||||
| 65996-91402 |
VG40;VG45..4FC |
2 | ||
| 65996-91402 |
VG4# |
2 | ||
| Common parts | ||||
| 90151-40006 | ||||
| 93229-23006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
