VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

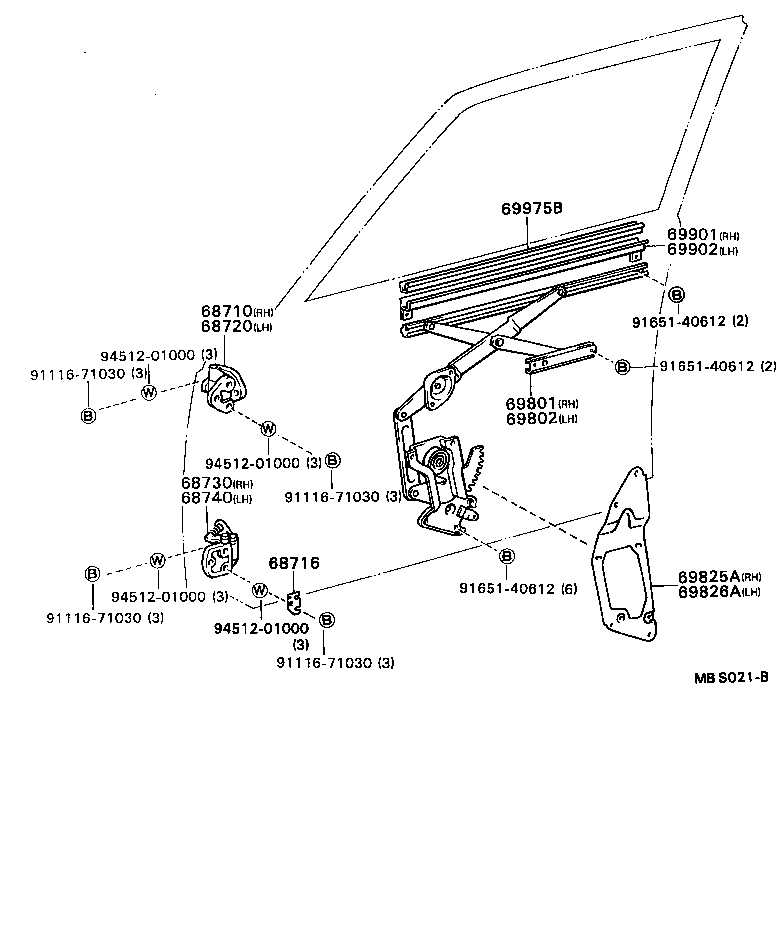

Click highlighted areas on diagram

diagram 68710 68716 68720 68730 68740 69801 69802 69825A 69826A 69901 69902 69975B 9111671030 9111671030 9111671030 9111671030 9165140612 9165140612 9165140612 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-40050

VG4#

 1
68716 - PLATE, FRONT DOOR HINGE, LOWER
68716-91401

VG4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-40050

VG4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-40031

VG4#

 1
68730-40030

VG4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-40030

VG4#

 1
68740-40031

VG4#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-40041

VG4#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-40041

VG4#

 1
69825A - REINFORCEMENT, FRONT DOOR REGULATOR, RH
69825-40021

VG4#

 1
69826A - REINFORCEMENT, FRONT DOOR REGULATOR, LH
69826-40021

VG4#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69905-91401

VG4#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69905-91401

VG4#

 1
69975B - FILLER, FRONT DOOR GLASS CHANNEL
69975-91403

VG4#

 2
Common parts
91116-71030
91651-40612
94512-01000
