VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

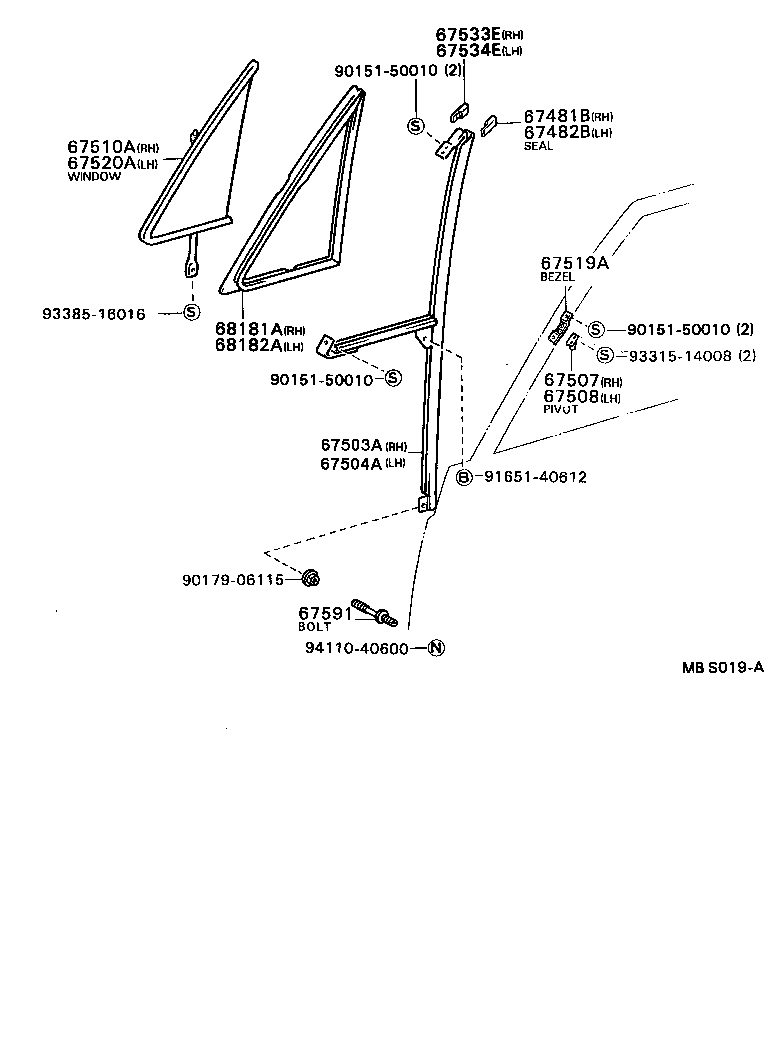

Click highlighted areas on diagram

diagram 67481B 67482B 67503A 67504A 67507 67508 67510A 67519A 67520A 67533E 67534E 67591 68181A 68182A 9015150010 9015150010 9015150010 9017906115 9165140612 9331514008 9338516016 9411040600
Part # Description Qty Price
67481B - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-91402

VG4#

 1
67482B - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-91402

VG4#

 1
67503A - BAR SUB-ASSY, FRONT DOOR DIVISION, RH
67503-91405

VG4#

 1
67504A - BAR SUB-ASSY, FRONT DOOR DIVISION, LH
67504-91405

VG4#

 1
67507 - PIVOT SUB-ASSY, VENT WINDOW, UPPER RH
67557-91401

VG4#

 1
67508 - PIVOT SUB-ASSY, VENT WINDOW, UPPER LH
67558-91401

VG4#

 1
67510A - WINDOW ASSY, FRONT DOOR VENTILATING, RH
67510-91403

VG40..E

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
67510-91404

VG40..E

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
67510-91407

VG40..E

*TT,厚さ=5.0,ｸﾞﾚｰ

 1
67510-91404

VG40..E

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
67510-91403

VG40..D

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
67519A - BEZEL, FRONT VENT WINDOW FRAME
67519-91402

VG4#

 2
67520A - WINDOW ASSY, FRONT DOOR VENTILATING, LH
67520-91403

VG40..D

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
67520-91404

VG40..E

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
67520-91407

VG40..E

*TT,厚さ=5.0,ｸﾞﾚｰ

 1
67520-91404

VG40..E

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
67520-91403

VG40..E

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
67533E - SEAL, FRONT DOOR DIVISION BAR, RH
67533-91402

VG4#

 1
67534E - SEAL, FRONT DOOR DIVISION BAR, LH
67534-91401

VG4#

 1
67591 - BOLT, FRONT DOOR VENTILATING WINDOW DIVISION BAR ADJUST
67591-91402

VG4#

 2
68181A - WEATHERSTRIP, FRONT DOOR VENT WINDOW, RH
68181-40010

VG4#..E,L;VG40..4FC..D

 1
68181-40020

VG4#

 1
68182A - WEATHERSTRIP, DOOR VENT WINDOW, LH
68182-40020

VG4#

 1
68182-40010

VG4#..E,L;VG40..4FC..D

 1
Common parts
90151-50010
90179-06115
91651-40612
93315-14008
93385-16016
94110-40600
