VG40-GEPGE (1987)
Toyota Century
ILLUST NO. 1 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-91401 |
VG4# |
1 | ||
| 58774-40010 |
VG4# |
1 | ||
| 64270C - BOARD ASSY, ROOM PARTITION | ||||
| 64270-9140213 |
VG40..E GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64270-9140213 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
1 | ||
| 64270-9140403 |
VG40..E;VG45..4FC ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64270-9140403 |
VG40..E;VG45..4FC ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64270-9140213 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64270-9140403 |
VG40..D ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64270-9140213 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-91401 |
VG4# |
1 | ||
| 64273-40010 |
VG4# |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-40010 |
VG4# |
1 | ||
| 64274-91401 |
VG4# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-9142202 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 64330-9142303 |
VG4#..E,L ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 64330-9142301 |
VG4#..E,L ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 64330-9142203 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 64330-40020E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 64330-9142204 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 64330-40020J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 64330-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 64330-9142302 |
VG4#..E,L ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0601711 |
VG4#..E,L BLACK,TRIM2# |
5 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
5 | ||
| 90467-0704143 |
VG4# SHADOW GRAY,TRIM1# |
5 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8# |
5 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8# |
5 | ||
| 90467-0601722 |
VG4#..E,L MAROON,TRIM3# |
5 | ||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8# |
5 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4# |
5 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
5 | ||
| 64353B - PAD, PACKAGE TRAY TRIM, NO.3 | ||||
| 64353-40010 |
VG4# |
1 | ||
| 64353-91402 |
VG4# |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-9140113 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64490-9140113 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
1 | ||
| 64490-9140113 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64490-9140113 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64706B - COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64706-9140213 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64710-4001003 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64710-40020B0 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64710-4001003 |
VG40..E;VG45..4HC GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64710-40020B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64706-9140213 |
VG40..E GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64711C - CARPET, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-9141713 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64711-40020B0 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64711-40020B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64711-9141713 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64711-4001003 |
VG40..E;VG45..4FC ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64711-4001003 |
VG40..D ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),GRAY,TRIM1#,8# |
1 | ||
| 64711-40030B0 |
VG40..E;VG45..4FC ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64711-40030B0 |
VG40..D ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-9140613 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64712-40020B0 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64712-40020B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64712-9140613 |
VG40..E GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64712-9140703 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64712-9140703 |
VG4#..E,L SHADOW GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-9140413 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
1 | ||
| 64713-9140413 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64713-9140413 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64713-9140413 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8# |
19 | ||
| 90467-0601751 |
VG40..D GRAY,TRIM1#,8# |
19 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
19 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4# |
19 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8# |
19 | ||
| 90467-0601751 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
19 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4# |
19 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40030 |
VG4# NO.2 |
4 | ||
| 64726-40040 |
VG4# NO.1 |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40030 |
VG4# NO.2 |
4 | ||
| 64726-40040 |
VG4# NO.1 |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40030 |
VG4# NO.2 |
4 | ||
| 64726-40040 |
VG4# NO.1 |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40030 |
VG4# NO.2 |
4 | ||
| 64726-40040 |
VG4# NO.1 |
2 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-9140413 |
VG4#..E,L GRAY,TRIM1#,4#,8# |
1 | ||
| 64749-9140413 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64749-9140413 |
VG4#..E,L GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64749-9140413 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64771-9140803 |
VG40..E SHADOW GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64771-9140613 |
VG40..E GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64771-9140803 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64771-9140613 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64771-9140803 |
VG40..D ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64771-4001003 |
VG40..D GRAY,TRIM1#,8# |
1 | ||
| 64771-40030B0 |
VG40..D ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ,SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64771-4001003 |
VG40..E;VG45..4HC GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64771-40020B0 |
VG4#..E,L SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64771-40020B0 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 64771-9140803 |
VG4#..E,L ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ,SHADOW GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 64771-40030B0 |
VG4#..E,L ｽﾍﾟｱﾀｲﾔ=ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ,SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 64802A - FRAME SUB-ASSY, BACK WINDOW | ||||
| 64802-40020 |
VG4# |
2 | ||
| 64802A - FRAME SUB-ASSY, BACK WINDOW | ||||
| 64802-40020 |
VG4# |
2 | ||
| Common parts | ||||
| 90119-06393 | ||||
| 90464-00052 | ||||
| 93520-24014 | ||||
| 93540-14016 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8714 | ||||

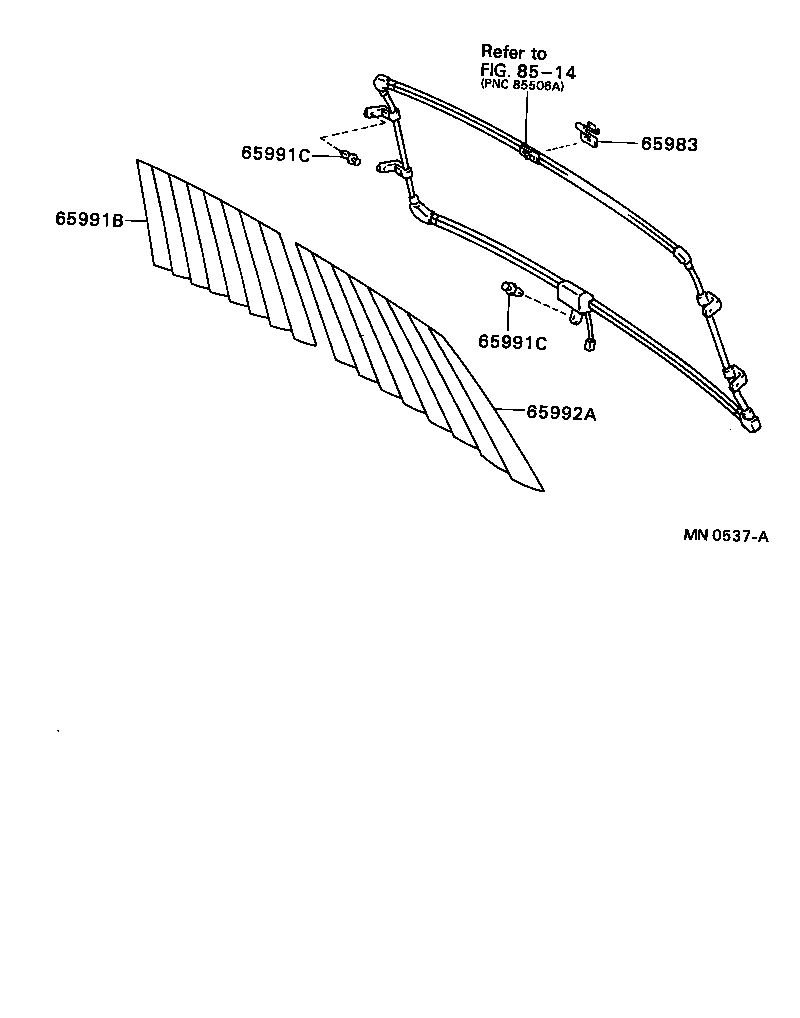

ILLUST NO. 2 OF 2(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65983 - HANGER, BACK WINDOW CURTAIN | ||||
| 65983-40010J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 65983-40010B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 65983-40010E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 65991B - CURTAIN, REAR WINDOW, RH | ||||
| 65991-40010 |
VG4# |
1 | ||
| 65991-91401 |
VG40..E |
1 | ||
| 65991-91401 |
VG4# |
1 | ||
| 65991C - CLIP, REAR WINDOW CURTAIN | ||||
| 90467-0706613 |
VG40..E LIGHT GRAY,TRIM1#,2#,LOWER |
1 | ||
| 90467-0706615 |
VG4#..E,L BEIGE,TRIM3#,LOWER |
1 | ||
| 90467-0811449 |
VG4#..E,L GRAY,TRIM1#,2#,SIDE |
4 | ||
| 90467-0811439 |
VG4# BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0706624 |
VG40..E LIGHT BLUE,TRIM8#,LOWER |
1 | ||
| 90467-0811439 |
VG40..E BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0811449 |
VG40..D GRAY,TRIM1#,SIDE |
4 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0706613 |
VG40..D LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 90467-0811447 |
VG40..E BEIGE,TRIM3#,SIDE |
4 | ||
| 90467-0706624 |
VG4# LIGHT BLUE,TRIM8#,LOWER |
1 | ||
| 90467-0811449 |
VG40..E GRAY,TRIM1#,2#,SIDE |
4 | ||
| 90467-0706613 |
VG4#..E,L LIGHT GRAY,TRIM1#,2#,LOWER |
1 | ||
| 90467-06017E1 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-06017E2 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-0601757 |
VG4# GRAY,TRIM1#,SIDE |
4 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8#,LOWER |
1 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8#,LOWER |
1 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8#,LOWER |
1 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8#,LOWER |
1 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4#,LOWER |
1 | ||
| 65991C - CLIP, REAR WINDOW CURTAIN | ||||
| 90467-0706613 |
VG40..E LIGHT GRAY,TRIM1#,2#,LOWER |
1 | ||
| 90467-0706615 |
VG4#..E,L BEIGE,TRIM3#,LOWER |
1 | ||
| 90467-0811449 |
VG4#..E,L GRAY,TRIM1#,2#,SIDE |
4 | ||
| 90467-0811439 |
VG4# BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0706624 |
VG40..E LIGHT BLUE,TRIM8#,LOWER |
1 | ||
| 90467-0811439 |
VG40..E BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0811449 |
VG40..D GRAY,TRIM1#,SIDE |
4 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8#,SIDE |
4 | ||
| 90467-0706613 |
VG40..D LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 90467-0811447 |
VG40..E BEIGE,TRIM3#,SIDE |
4 | ||
| 90467-0706624 |
VG4# LIGHT BLUE,TRIM8#,LOWER |
1 | ||
| 90467-0811449 |
VG40..E GRAY,TRIM1#,2#,SIDE |
4 | ||
| 90467-0706613 |
VG4#..E,L LIGHT GRAY,TRIM1#,2#,LOWER |
1 | ||
| 90467-06017E1 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-06017E2 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4#,SIDE |
4 | ||
| 90467-0601757 |
VG4# GRAY,TRIM1#,SIDE |
4 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8#,LOWER |
1 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8#,LOWER |
1 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8#,LOWER |
1 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8#,LOWER |
1 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4#,LOWER |
1 | ||
| 65992A - CURTAIN, REAR WINDOW, LH | ||||
| 65992-40010 |
VG4# |
1 | ||
| 65992-91401 |
VG40..E |
1 | ||
| 65992-91401 |
VG4# |
1 | ||
| Linked diagrams | ||||
| 8514 | ||||
