VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

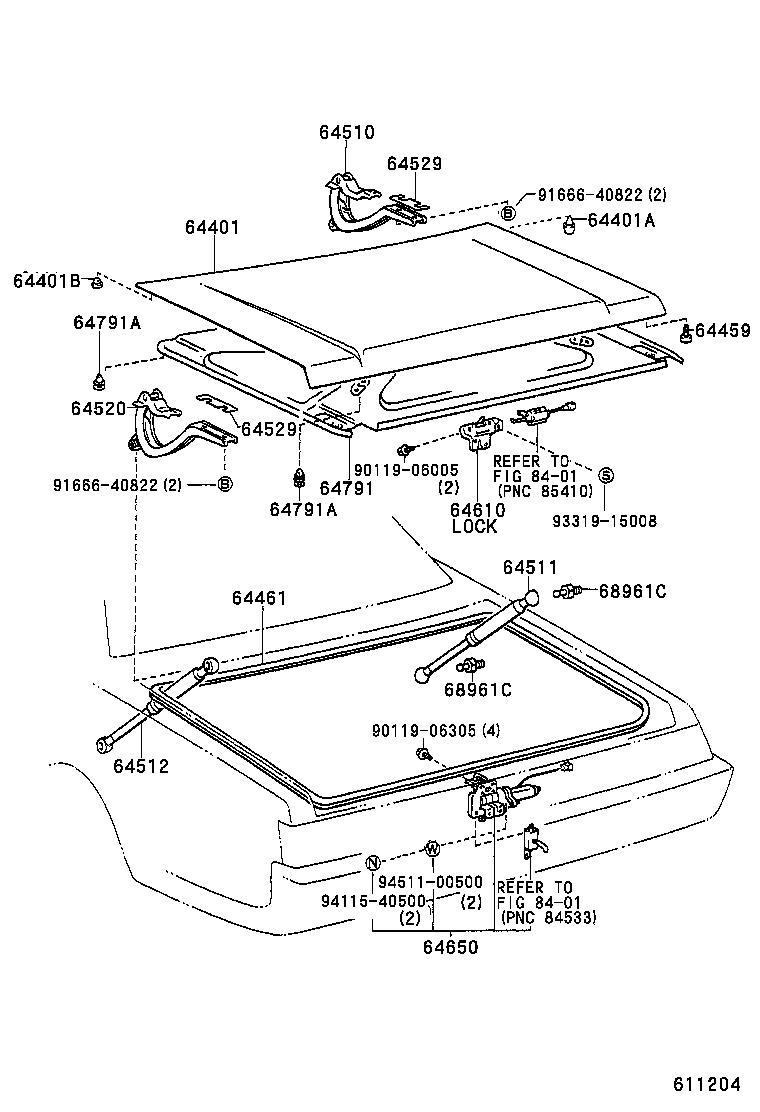

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64459 64461 64510 64511 64512 64520 64529 64529 64610 64650 64791 64791A 64791A 68961C 68961C 8401 8401 9011906005 9011906305 9166640822 9166640822 9331915008 9411540500 9451100500
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-91409

VG40

 1
64401-40010

VG4#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09126

VG4#

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01058

VG4#

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
64459-91401

VG4#

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-91404

VG4#

 1
64461-40010

VG4#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-40010

VG4#

 1
64510-91402

VG40

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-40010

VG4#

 1
64511-91402

VG40

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-40010

VG4#

 1
64512-91401

VG40

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-40010

VG4#

 1
64520-91402

VG40

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

VG4#

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

VG4#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-91401

VG4#

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
64650-40020

VG4#

 1
64650-40030

VG4#

 1
64791 - COVER, BACK DOOR TRIM
64791-40010B0

VG40..D

SHADOW GRAY,TRIM1#,8#

 1
64791-40010

VG4#

 1
64791-40010B0

VG4#..E,L

SHADOW GRAY,TRIM1#,4#,8#

 1
64791A - CLIP(FOR BACK DOOR TRIM)
90467-0705903

VG4#..E,L

GRAY,TRIM1#,4#,8#

 8
90467-0705903

VG4#..E,L

GRAY,TRIM1#,2#,3#,8#

 6
90467-0705903

VG40..D

GRAY,TRIM1#,8#

 8
90467-0705903

VG40..D

GRAY,TRIM1#,8#

 6
64791A - CLIP(FOR BACK DOOR TRIM)
90467-0705903

VG4#..E,L

GRAY,TRIM1#,4#,8#

 8
90467-0705903

VG4#..E,L

GRAY,TRIM1#,2#,3#,8#

 6
90467-0705903

VG40..D

GRAY,TRIM1#,8#

 8
90467-0705903

VG40..D

GRAY,TRIM1#,8#

 6
68961C - BOLT, LUGGAGE DOOR STAY
68961-23010

VG4#

 4
68961-40010

VG4#

 4
68961C - BOLT, LUGGAGE DOOR STAY
68961-23010

VG4#

 4
68961-40010

VG4#

 4
Common parts
90119-06005
90119-06305
91666-40822
93319-15008
94115-40500
94511-00500
Linked diagrams
8401
