VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )VG40 ; (9009- )VG45

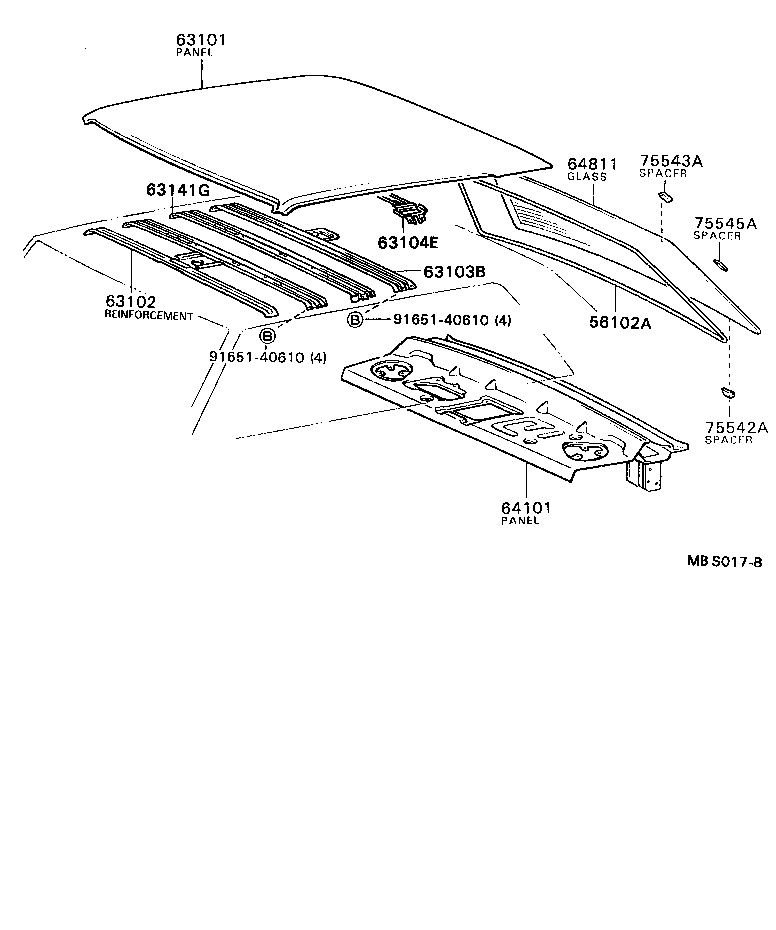

Click highlighted areas on diagram
VG45=ﾘﾑｼﾞﾝL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56102A - STOP SUB-ASSY, WINDOW SHIELD | ||||
| 56102-91401 |
VG4# |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-91416 |
VG40 |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-91403 |
VG4# |
1 | ||
| 63103B - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-91410 |
VG4# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-40010 |
VG4# |
1 | ||
| 64101-91407 |
VG40 |
1 | ||
| 64101-40011 |
VG4# |
1 | ||
| 64101-40050 |
VG4# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-40020 |
VG40..D *EHTT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 64801-91406 |
VG40..E *EHTL,厚さ=5.3 |
1 | ||
| 64801-91407 |
VG40..D *EHTL,厚さ=5.0 |
1 | ||
| 64801-91405 |
VG40..E *EHTL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-91411 |
VG40..E *EHTL,厚さ=5.3,ｸﾞﾚｰ |
1 | ||
| 64801-40110 |
VG40..D *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 64801-40130 |
VG40..E *TL,厚さ=5.3,ｸﾞﾚｰ |
1 | ||
| 64801-40040 |
VG40..E *EHTL,厚さ=5.3,ｸﾞﾚｰ |
1 | ||
| 64801-40060 |
VG40..E *EHTL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-91405 |
VG40..E *EHTL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-40050 |
VG40..D *EHTT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 64801-40120 |
VG40..E *TL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 75542A - SPACER, STEP RUBBER BACK WINDOW GLASS | ||||
| 75542-91405 |
VG4# |
2 | ||
| 75543A - SPACER, FLAT RUBBER BACK WINDOW GLASS | ||||
| 75543-91402 |
VG4# |
2 | ||
| 75545A - SPACER, BACK WINDOW GLASS | ||||
| 75545-91401 |
VG4# |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
