VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )VG40 ; (9009- )VG45

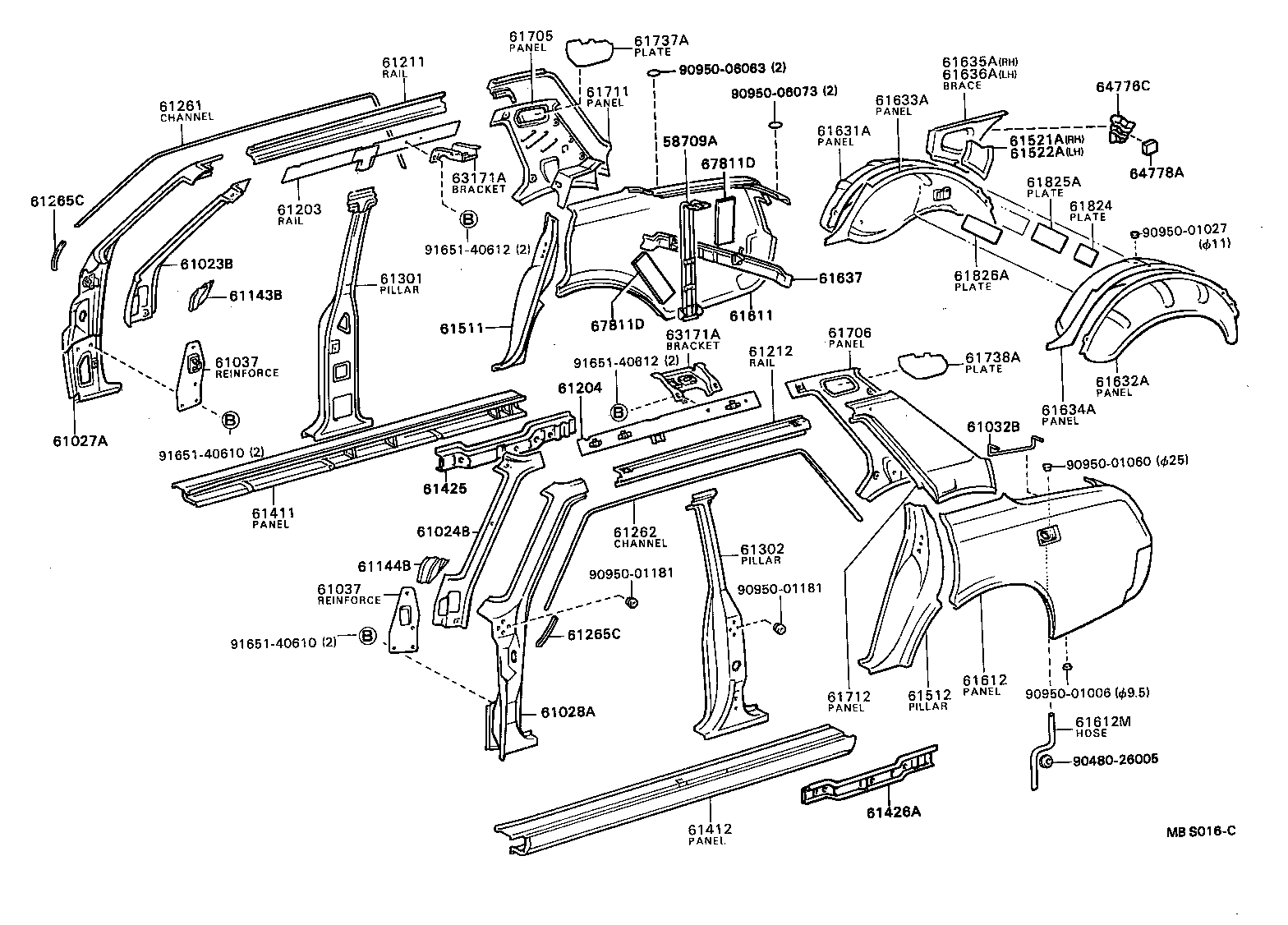

Click highlighted areas on diagram
VG45=ﾘﾑｼﾞﾝL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58709A - CARRIER SUB-ASSY, JACK | ||||
| 58709-40010 |
VG4# |
1 | ||
| 58709-91402 |
VG4# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-91401 |
VG4# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-91401 |
VG4# |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-91401 |
VG4# |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-91401 |
VG4# |
1 | ||
| 61032B - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61032-91401 |
VG4# |
1 | ||
| 61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER | ||||
| 61037-91402 |
VG4# |
2 | ||
| 61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER | ||||
| 61037-91402 |
VG4# |
2 | ||
| 61143B - GUSSET, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61143-91401 |
VG4# |
1 | ||
| 61144B - GUSSET, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61144-91401 |
VG4# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-91412 |
VG40 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-91412 |
VG40 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-91409 |
VG40 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-91409 |
VG40 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-91404 |
VG40 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-91405 |
VG40 |
1 | ||
| 61265C - CHANNEL, ROOF DRIP, LOWER | ||||
| 61265-91402 |
VG4# |
2 | ||
| 61265C - CHANNEL, ROOF DRIP, LOWER | ||||
| 61265-91402 |
VG4# |
2 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-40010 |
VG40 |
1 | ||
| 61301-91411 |
VG40 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-40010 |
VG40 |
1 | ||
| 61302-40050 |
VG40 |
1 | ||
| 61302-91411 |
VG40 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-91405 |
VG40 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-91405 |
VG40 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-91402 |
VG4# |
1 | ||
| 61501-40010 |
VG4# |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-91402 |
VG4# |
1 | ||
| 61502-40010 |
VG4# |
1 | ||
| 61521A - BRASE, QUARTER LOCK PILLAR TO REAR PANEL, RH | ||||
| 61521-91401 |
VG4# |
1 | ||
| 61522A - BRASE, QUARTER LOCK PILLAR TO REAR PANEL, LH | ||||
| 61522-40010 |
VG4# |
1 | ||
| 61522-91401 |
VG4# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-91490 |
VG4# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-91490 |
VG4# |
1 | ||
| 61612M - HOSE(FOR FUEL INLET BOX) | ||||
| 90446-09010 |
VG4# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-91404 |
VG4# |
1 | ||
| 61631-40010 |
VG4# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-91404 |
VG4# |
1 | ||
| 61632-40010 |
VG4# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-91406 |
VG4# |
1 | ||
| 61607-40010 |
VG4# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-40010 |
VG4# |
1 | ||
| 61608-91407 |
VG4# |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-91405 |
VG4# |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-91403 |
VG4# |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61609-91404 |
VG4# |
1 | ||
| 61609-40010 |
VG4# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-40020 |
VG4# |
1 | ||
| 61705-91407 |
VG4# |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-40020 |
VG4# |
1 | ||
| 61706-91403 |
VG4# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-91490 |
VG4# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-91490 |
VG4# |
1 | ||
| 61737A - PLATE, ROOF SIDE INNER RAIN PROOF, RH | ||||
| 61737-91401 |
VG4# |
1 | ||
| 61737-40010 |
VG4# |
1 | ||
| 61738A - PLATE, ROOF SIDE INNER RAIN PROOF, LH | ||||
| 61738-40010 |
VG4# |
1 | ||
| 61738-91401 |
VG4# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-91401 |
VG4# |
1 | ||
| 61824-40010 |
VG4# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-40010 |
VG4# |
1 | ||
| 61825-91401 |
VG4# |
1 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-91401 |
VG4# |
1 | ||
| 61826-40010 |
VG4# |
4 | ||
| 63171A - BRACKET, ROOM LAMP | ||||
| 63171-91403 |
VG40 |
2 | ||
| 63171A - BRACKET, ROOM LAMP | ||||
| 63171-91403 |
VG40 |
2 | ||
| 64776C - GUARD, SPARE WHEEL, NO.2 | ||||
| 64776-40010 |
VG4# |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-40010 |
VG4# |
2 | ||
| 67811D - PAD, QUATER SILENCER | ||||
| 67811-30050 |
VG4# |
4 | ||
| 67811D - PAD, QUATER SILENCER | ||||
| 67811-30050 |
VG4# |
4 | ||
| Common parts | ||||
| 90480-26005 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-06063 | ||||
| 90950-06073 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
