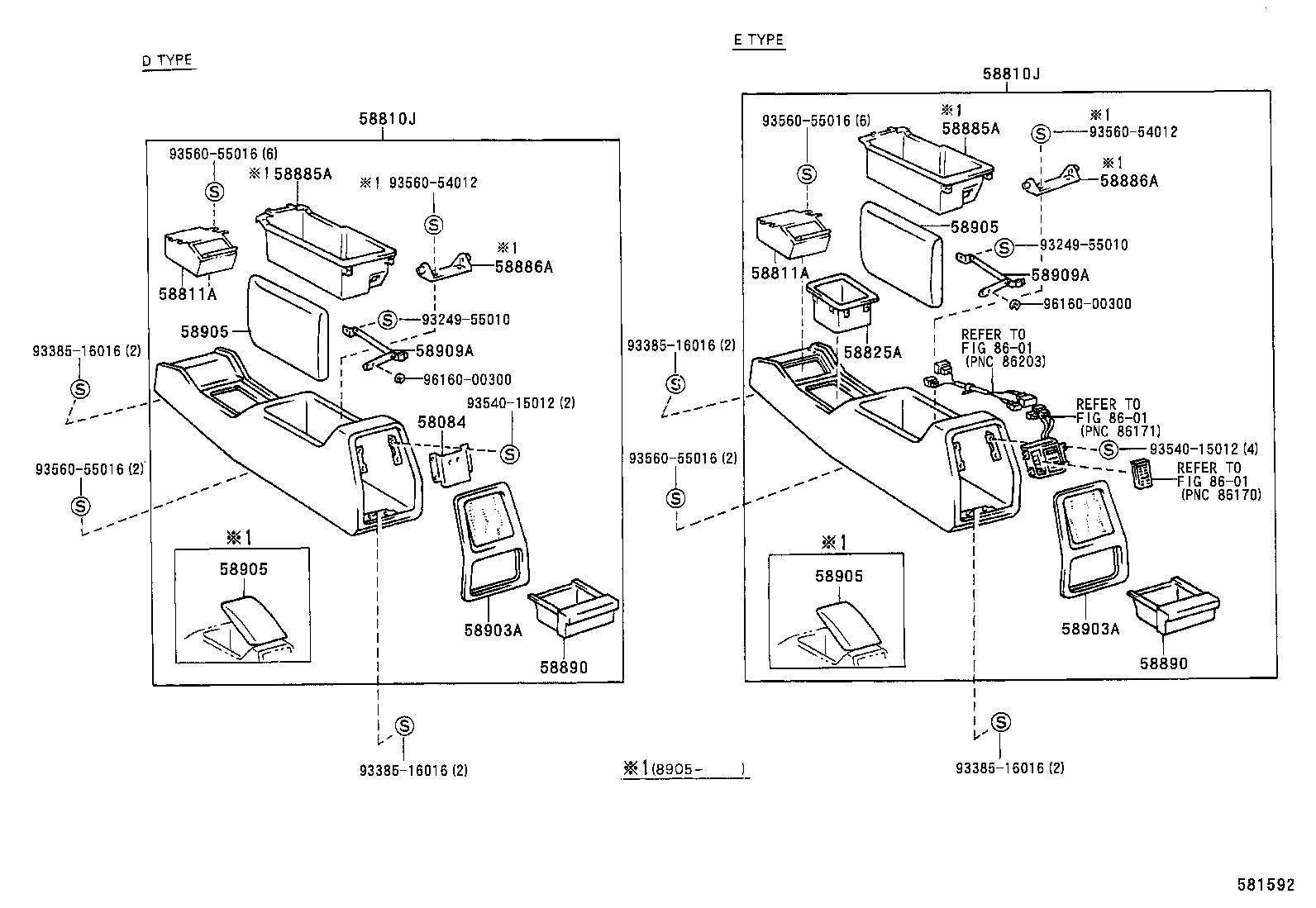

VG40-GEPGE (1987)
Toyota Century
(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58084 - COVER SUB-ASSY, CONSOLE, REAR | ||||
| 58084-40010 |
VG40..4FC..D |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-9140702 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58810-9140804 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58810-9141402 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58810-9140902 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-9140803 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141504 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58810-9141403 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9140704 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58810-9141503 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141601 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-9140703 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141602 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-9140901 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-9141404 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58810-4004003 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141603 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4006002 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-4007002 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58810-4005003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4005004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58810-4007004 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),DARK BLUE,TRIM8# |
1 | ||
| 58810-4004004 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58810-4008002 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58810-4007003 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4008001 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),BLACK,TRIM2# |
1 | ||
| 58810-4006001 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-4006003 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4008003 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40100J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58810-40090J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58810-40090E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58810-40100B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40110E1 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58810-40110B1 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40130B1 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40120J0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),DARK BLUE,TRIM8# |
1 | ||
| 58810-40090B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40130E1 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58810-40120B0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40120E0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SABLE,TRIM4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-9140702 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58810-9140804 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58810-9141402 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58810-9140902 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-9140803 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141504 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58810-9141403 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9140704 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58810-9141503 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141601 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-9140703 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141602 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-9140901 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-9141404 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58810-4004003 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58810-9141603 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4006002 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58810-4007002 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58810-4005003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4005004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58810-4007004 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),DARK BLUE,TRIM8# |
1 | ||
| 58810-4004004 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58810-4008002 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58810-4007003 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4008001 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),BLACK,TRIM2# |
1 | ||
| 58810-4006001 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58810-4006003 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-4008003 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ & CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40100J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58810-40090J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58810-40090E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58810-40100B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40110E1 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58810-40110B1 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40130B1 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40120J0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),DARK BLUE,TRIM8# |
1 | ||
| 58810-40090B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40130E1 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ & ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58810-40120B0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58810-40120E0 |
VG40..4FC..E ｱﾘ(ﾘﾔ ﾊﾟﾜ- ﾍﾂﾄﾞﾚｽﾄ),SABLE,TRIM4# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-40010 |
VG4#..4FC |
1 | ||
| 58802-91405 |
VG40..4FC |
1 | ||
| 58802-40020 |
VG4#..4FC |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-40010 |
VG4#..4FC |
1 | ||
| 58802-91405 |
VG40..4FC |
1 | ||
| 58802-40020 |
VG4#..4FC |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-91401 |
VG40..E;VG40..4FC..D |
1 | ||
| 58885-91401 |
VG4#..4FC |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-91401 |
VG40..E;VG40..4FC..D |
1 | ||
| 58885-91401 |
VG4#..4FC |
1 | ||
| 58886A - COVER, EQUIPMENT SET PANEL | ||||
| 58886-91402 |
VG4#..4FC |
1 | ||
| 58886-91402 |
VG40..E;VG40..4FC..D |
1 | ||
| 58886A - COVER, EQUIPMENT SET PANEL | ||||
| 58886-91402 |
VG4#..4FC |
1 | ||
| 58886-91402 |
VG40..E;VG40..4FC..D |
1 | ||
| 58890 - BOX ASSY, TRASH | ||||
| 58890-4001001 |
VG4#..4FC..(E,L) BLACK,TRIM2# |
1 | ||
| 58890-4001002 |
VG40..E MAROON,TRIM3# |
1 | ||
| 58890-4001014 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 58890-4001013 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58890-4001013 |
VG40..E;VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58890-4001002 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58890-40010E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58890-4001014 |
VG40..E;VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58890-4001001 |
VG40..E BLACK,TRIM2# |
1 | ||
| 58890 - BOX ASSY, TRASH | ||||
| 58890-4001001 |
VG4#..4FC..(E,L) BLACK,TRIM2# |
1 | ||
| 58890-4001002 |
VG40..E MAROON,TRIM3# |
1 | ||
| 58890-4001014 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 58890-4001013 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58890-4001013 |
VG40..E;VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58890-4001002 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58890-40010E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58890-4001014 |
VG40..E;VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58890-4001001 |
VG40..E BLACK,TRIM2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-4002002 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58903-9140104 |
VG40..E;VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58903-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58903-9140103 |
VG40..E;VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58903-4003004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58903-4002003 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58903-9140101 |
VG40..E BLACK,TRIM2# |
1 | ||
| 58903-4002004 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58903-9140102 |
VG40..E MAROON,TRIM3# |
1 | ||
| 58903-4002001 |
VG4#..4FC..(E,L) BLACK,TRIM2# |
1 | ||
| 58903-40040B0 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58903-40040J0 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 58903-4003003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-4002002 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58903-9140104 |
VG40..E;VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58903-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58903-9140103 |
VG40..E;VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58903-4003004 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58903-4002003 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58903-9140101 |
VG40..E BLACK,TRIM2# |
1 | ||
| 58903-4002004 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58903-9140102 |
VG40..E MAROON,TRIM3# |
1 | ||
| 58903-4002001 |
VG4#..4FC..(E,L) BLACK,TRIM2# |
1 | ||
| 58903-40040B0 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58903-40040J0 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 58903-4003003 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-9140203 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140102 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58905-9140104 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58905-9140103 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140204 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140301 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140302 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58905-9140703 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140704 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG4#..4FC..(E,L) ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140604 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58905-40040B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-91408E2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58905-91408B2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-9140203 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140102 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58905-9140104 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58905-9140103 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140204 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140301 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140302 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58905-9140703 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140704 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG4#..4FC..(E,L) ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140604 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58905-40040B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-91408E2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58905-91408B2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-9140203 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140102 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58905-9140104 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58905-9140103 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140204 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140301 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140302 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58905-9140703 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140704 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG4#..4FC..(E,L) ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140604 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58905-40040B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-91408E2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58905-91408B2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-9140203 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140102 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 58905-9140104 |
VG40..4FC..E DARK BLUE,TRIM8# |
1 | ||
| 58905-9140103 |
VG40..4FC..E SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140204 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140301 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140302 |
VG40..E ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG40..E ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 58905-9140703 |
VG40..4FC..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140704 |
VG40..4FC..D DARK BLUE,TRIM8# |
1 | ||
| 58905-9140801 |
VG4#..4FC..(E,L) ｱﾘ(ｾﾊﾟﾚ-ﾄ ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 58905-9140802 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MAROON,TRIM3# |
1 | ||
| 58905-9140604 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-9140603 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-9140602 |
VG4#..4FC..(E,L) ｱﾘ(CD ｵ-ﾄﾁｴﾝｼﾞﾔ),MAROON,TRIM3# |
1 | ||
| 58905-9140803 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 58905-40040B0 |
VG4#..4FC..(E,L) SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40040J0 |
VG4#..4FC..(E,L) DARK BLUE,TRIM8# |
1 | ||
| 58905-91408E2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 58905-91408B2 |
VG4#..4FC..(E,L) ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050B0 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 58905-40050J0 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58909-40010 |
VG40..E;VG40..4FC..D |
1 | ||
| 58909A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58909-40010 |
VG40..E;VG40..4FC..D |
1 | ||
| Common parts | ||||
| 93249-55010 | ||||
| 93385-16016 | ||||
| 93540-15012 | ||||
| 93560-54012 | ||||
| 93560-55016 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
