VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

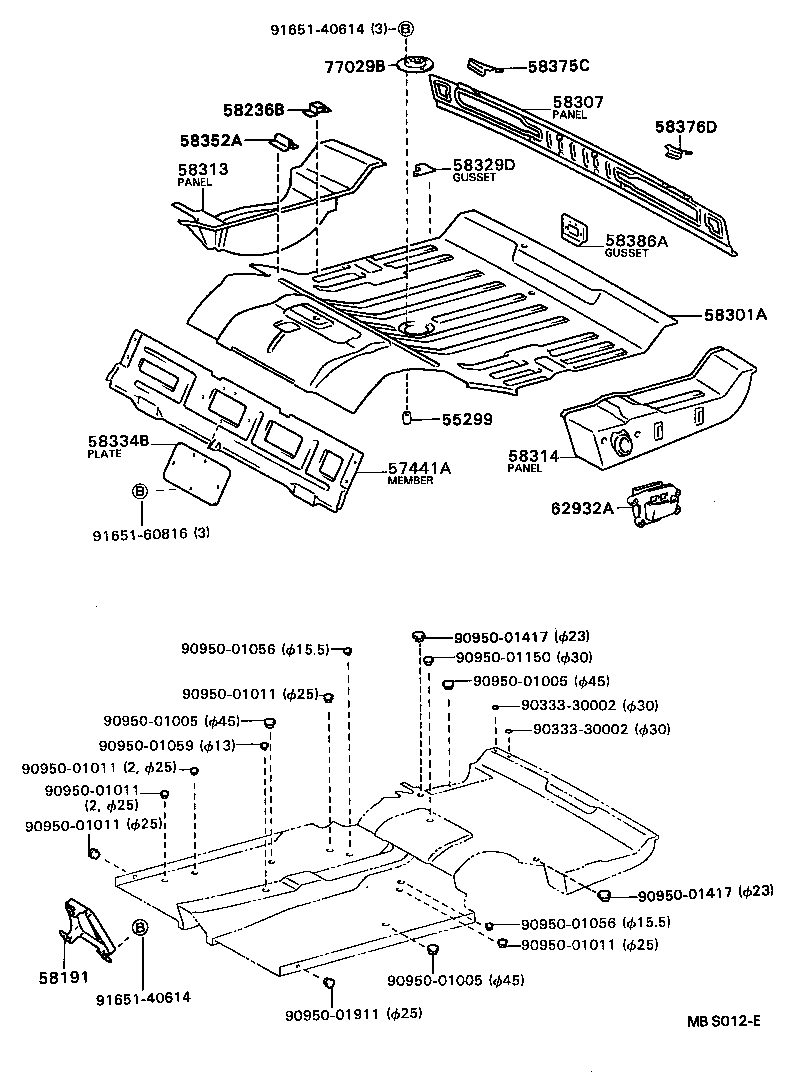

ILLUST NO. 2 OF 2(8709- )VG40 ; (9009- )VG45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
VG4# |
3 | ||
| 57441A - MEMBER, REAR FLOOR CENTER, NO.1 | ||||
| 57441-91401 |
VG40 |
1 | ||
| 57407-40010 |
VG4# |
1 | ||
| 57441-40010 |
VG4# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-91401 |
VG4# |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
VG4# |
2 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-91491 |
VG4# |
1 | ||
| 58301-40900 |
VG4# |
1 | ||
| 58301-91491 |
VG40 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91410 |
VG4# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-91402 |
VG4# |
1 | ||
| 58305-40010 |
VG4# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58303-40010 |
VG4# |
1 | ||
| 58303-91401 |
VG4# |
1 | ||
| 58329D - GUSSET, SPARE WHEEL HOUSING CORNER | ||||
| 58329-91401 |
VG4# |
1 | ||
| 58334B - PLATE, REAR FLOOR CROSSMEMBER, CENTER RH | ||||
| 58334-91401 |
VG40 |
1 | ||
| 58334-91401 |
VG4# |
1 | ||
| 58352A - BRACKET, REAR FLOOR STAY | ||||
| 58352-91404 |
VG4# |
2 | ||
| 58375C - REINFORCEMENT, BODY LOWER BACK, RH | ||||
| 58375-91404 |
VG4# |
1 | ||
| 58376D - REINFORCEMENT, BODY LOWER BACK, LH | ||||
| 58376-91402 |
VG4# |
1 | ||
| 58386A - GUSSET, LOWER BACK PANEL, NO.2 | ||||
| 58386-91402 |
VG4# |
1 | ||
| 62932A - DUCT, QUARTER VENT, LH | ||||
| 62940-40010 |
VG4# |
1 | ||
| 77029B - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91401 |
VG4# |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01005 | ||||
| 90950-01011 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01150 | ||||
| 90950-01417 | ||||
| 90950-01911 | ||||
| 91651-40614 | ||||
| 91651-60816 | ||||

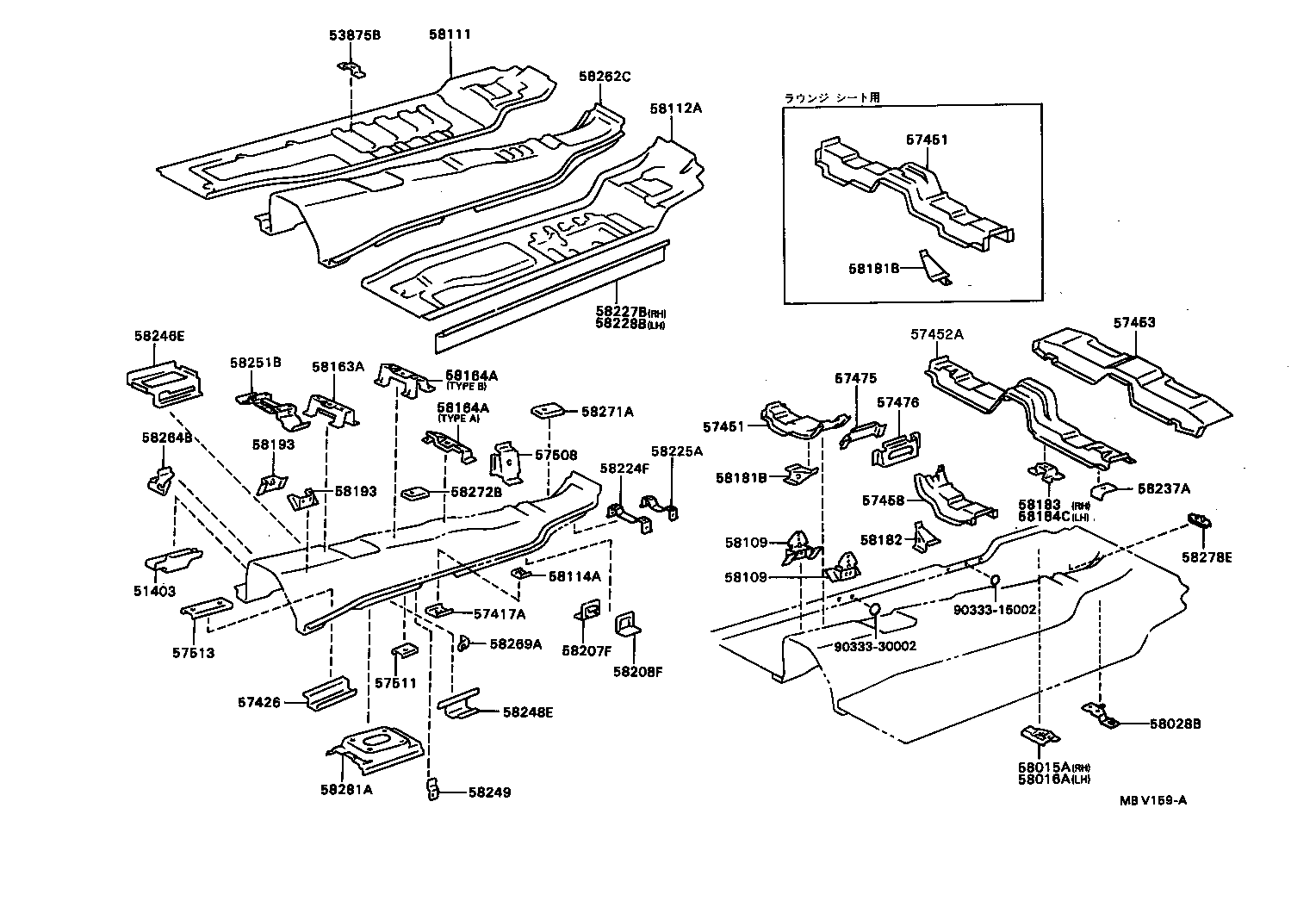

ILLUST NO. 1 OF 2(8709- )VG40 ; (9009- )VG45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-91401 |
VG4# |
1 | ||
| 53875B - BRACKET, AIR DUCT CLAMP | ||||
| 53875-40010 |
VG40 |
4 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-91401 |
VG4# |
2 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-91401 |
VG4# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-91405 |
VG4#..4FC |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-91405 |
VG4#..4FC |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-91404 |
VG40 |
1 | ||
| 57452-40010 |
VG4# |
1 | ||
| 57452-40020 |
VG4# |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-91402 |
VG40 |
1 | ||
| 57451-40020 |
VG40..4FC |
1 | ||
| 57453-91403 |
VG40;VG45..4HC |
1 | ||
| 57409-40010 |
VG40 |
1 | ||
| 57408-40010 |
VG4# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-91401 |
VG40..E;VG4#..4FC..(D,L) |
1 | ||
| 57458-40010 |
VG40;VG45..4FC |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-91401 |
VG40..E;VG4#..4FC..(D,L) |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-91401 |
VG40..E;VG4#..4FC..(D,L) |
1 | ||
| 57508 - REINFORCEMENT SUB-ASSY, SAFETY BAND ANCHORAGE | ||||
| 57508-91401 |
VG4# |
2 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-91401 |
VG4# |
2 | ||
| 57511-91401 |
VG4# |
4 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-91401 |
VG4# |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-40010 |
VG45;VG40..4FC |
1 | ||
| 58028B - REINFORCE SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 58028-40010 |
VG4# |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-40010 |
VG4# |
2 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-40010 |
VG4# |
2 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-91404 |
VG40 |
1 | ||
| 58111-40020 |
VG40 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-91403 |
VG40 |
1 | ||
| 58112-40010 |
VG40 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-91401 |
VG4# |
2 | ||
| 58163A - RETAINER, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58163-91402 |
VG40..E;VG4#..4FC..(D,L) |
1 | ||
| 58163-40010 |
VG4#..4FC |
1 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-91404 |
VG40..E;VG4#..4FC..(D,L) ﾀｲﾌﾟ B |
1 | ||
| 58164-91403 |
VG40..E;VG4#..4FC..(D,L) ﾀｲﾌﾟ A |
1 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-91404 |
VG40..E;VG4#..4FC..(D,L) ﾀｲﾌﾟ B |
1 | ||
| 58164-91403 |
VG40..E;VG4#..4FC..(D,L) ﾀｲﾌﾟ A |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-91401 |
VG4# |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-91401 |
VG4# |
1 | ||
| 58182 - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH | ||||
| 58182-91401 |
VG4# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-91402 |
VG4# |
1 | ||
| 58184C - BRACKET, FRONT SEAT MOUNTING, INNER LH | ||||
| 58184-91402 |
VG4# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-91402 |
VG4# |
2 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-91402 |
VG4# |
2 | ||
| 58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH | ||||
| 58207-91403 |
VG4# |
1 | ||
| 58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH | ||||
| 58208-91402 |
VG4# |
1 | ||
| 58227B - PLATE, FRONT FLOOR PANEL SIDE, RH | ||||
| 58227-91491 |
VG40 |
1 | ||
| 58228B - PLATE, FRONT FLOOR PANEL SIDE, LH | ||||
| 58228-91491 |
VG40 |
1 | ||
| 58237A - BRACKET, FRONT SEAT | ||||
| 58237-91403 |
VG4# |
2 | ||
| 58246E - REINFORCE, PARKING BRAKE EQUALIZER MOUNTING | ||||
| 58246-91402 |
VG4# |
1 | ||
| 58248E - REINFORCEMENT, PARKING BRAKE EQUALIZER SUPPORT, LH | ||||
| 58248-91401 |
VG4# |
1 | ||
| 58249 - HANGER, PARKING BRAKE RETURN SPRING | ||||
| 58249-91401 |
VG4# |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-40010 |
VG4# |
1 | ||
| 58262C - COVER, TRANSMISSION, REAR | ||||
| 58262-91411 |
VG40..4FC |
1 | ||
| 58262-40020 |
VG40..4FC |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-91404 |
VG4# |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-91403 |
VG4# |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-91402 |
VG4# |
1 | ||
| 58298-40010 |
VG4# |
1 | ||
| 58278E - REINFORCEMENT, SIDE FLOOR, NO.2 | ||||
| 58278-40010 |
VG45;VG40..4FC |
1 | ||
| 58281A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-91402 |
VG4#..4FC |
1 | ||
| Common parts | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
