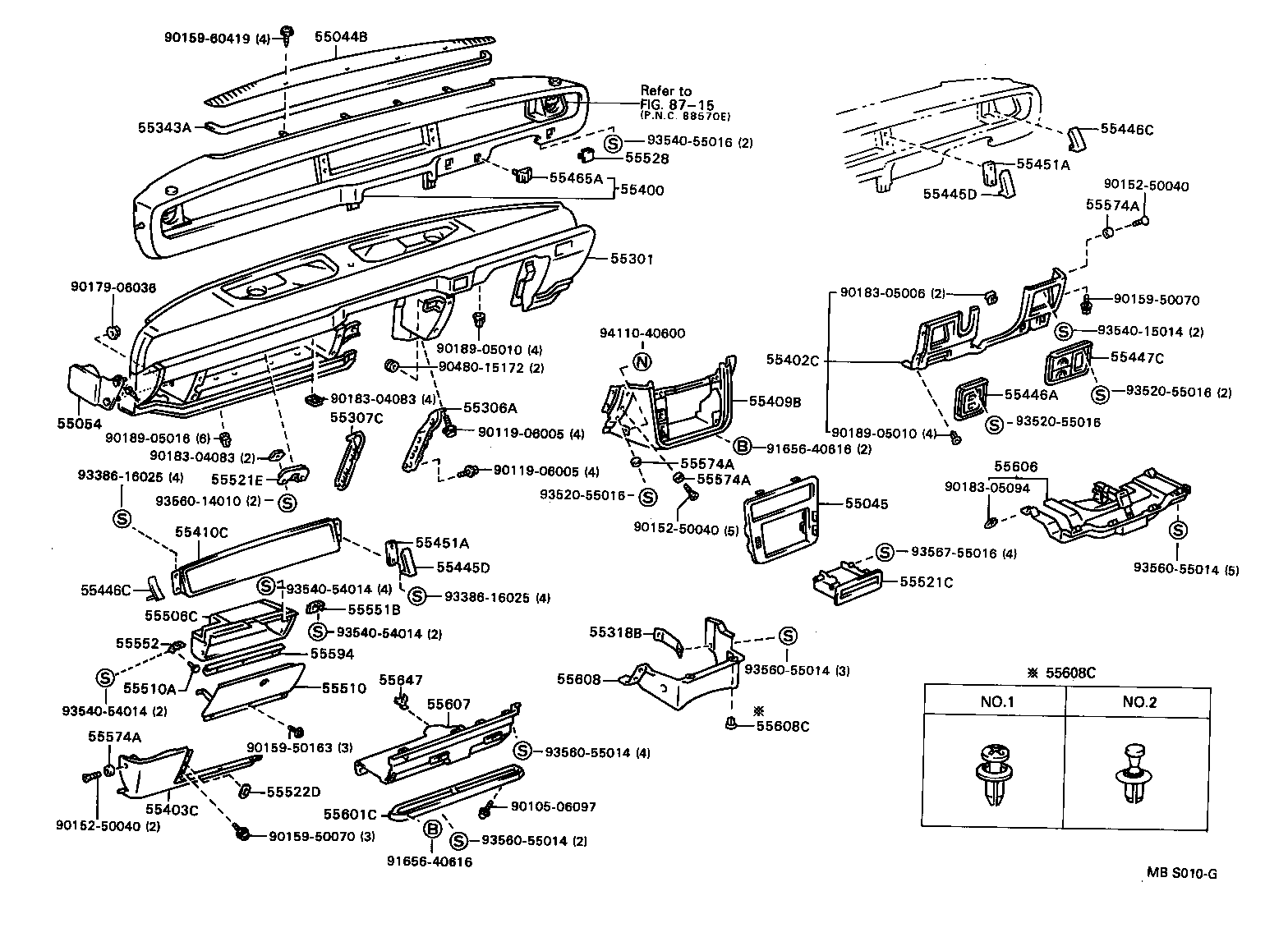

VG40-GEPGE (1987)
Toyota Century
(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-4001001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55044-4001014 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55044-4001013 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55044-4001002 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55044-40010E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-91401 |
VG40..E |
1 | ||
| 55045-40020 |
VG4#..E,L |
1 | ||
| 55045-91402 |
VG40..D |
1 | ||
| 55045-40030 |
VG40..D |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-40010 |
VG4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55310-91411 |
VG4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-91404 |
VG40 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-91407 |
VG40 |
1 | ||
| 55318B - EXTENSION, INSTRUMENT PANEL | ||||
| 55318-40010 |
VG4# |
1 | ||
| 55343A - INSULATOR, FRONT WINDOW DEFROSTOR | ||||
| 55343-91401 |
VG4# |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-9140204 |
VG40 DARK BLUE,TRIM8# |
1 | ||
| 55400-4003003 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55400-9140203 |
VG40 SHADOW GRAY,TRIM1# |
1 | ||
| 55400-4003001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55400-9140202 |
VG40..E MAROON,TRIM3# |
1 | ||
| 55400-4003002 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55400-9140201 |
VG40..E BLACK,TRIM2# |
1 | ||
| 55400-40060B0 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 55400-40060E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 55400-40110E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55400-40110B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55400-40110J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55400-40060J0 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 55400-4003004 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-9140701 |
VG40..4FC..E BLACK,TRIM2# |
1 | ||
| 55402-9140702 |
VG40..4FC..E MAROON,TRIM3# |
1 | ||
| 55402-9140904 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 55402-9140703 |
VG40..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 55402-9140902 |
VG4#..4FC..(E,L) MAROON,TRIM3# |
1 | ||
| 55402-9140704 |
VG40..4FC DARK BLUE,TRIM8# |
1 | ||
| 55402-9140901 |
VG4#..4FC..(E,L) BLACK,TRIM2# |
1 | ||
| 55402-40020J0 |
VG4#..4FC DARK BLUE,TRIM8# |
1 | ||
| 55402-40020B0 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 55402-9140903 |
VG4#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 55402-40020E0 |
VG4#..4FC..(E,L) SABLE,TRIM4# |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-4001001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55403-40020J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55403-4001013 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55403-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55403-4001014 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55403-4001002 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55403-40020E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55409B - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER | ||||
| 55409-9140401 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55409-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55409-9140403 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55409-40020J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55409-9140404 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55409-40020E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55409-9140402 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-40010 |
VG4# |
1 | ||
| 55445D - ORNAMENT, VENTILATOR LOUVER CENTER | ||||
| 55445-91402 |
VG4# |
2 | ||
| 55445D - ORNAMENT, VENTILATOR LOUVER CENTER | ||||
| 55445-91402 |
VG4# |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-91404 |
VG40 ｱﾘ(ｼﾞﾄﾞｳｼﾔ ﾃﾞﾝﾜ) |
1 | ||
| 55446-91403 |
VG4# |
1 | ||
| 55446-91404 |
VG40;VG45..4FC ｱﾘ(ｼﾞﾄﾞｳｼﾔ ﾃﾞﾝﾜ) |
1 | ||
| 55446C - ORNAMENT, VENTILATOR LOUVER CENTER | ||||
| 55446-91402 |
VG4# |
2 | ||
| 55446C - ORNAMENT, VENTILATOR LOUVER CENTER | ||||
| 55446-91402 |
VG4# |
2 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-91402 |
VG4# |
1 | ||
| 55451A - PLATE, INSTRUMENT PANEL CENTER LOUVER | ||||
| 55451-91401 |
VG4# |
2 | ||
| 55451A - PLATE, INSTRUMENT PANEL CENTER LOUVER | ||||
| 55451-91401 |
VG4# |
2 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-40010 |
VG4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-4001002 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55510-9140223 |
VG40 SHADOW GRAY,TRIM1# |
1 | ||
| 55501-4001003 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55501-4001001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55501-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55501-4001004 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55510-9140221 |
VG40..E BLACK,TRIM2# |
1 | ||
| 55510-9140214 |
VG40 DARK BLUE,TRIM8# |
1 | ||
| 55510-9140212 |
VG40..E MAROON,TRIM3# |
1 | ||
| 55501-40020E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55501-40020J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
VG40 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
VG4# |
1 | ||
| 55521E - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-30022 |
VG4# |
1 | ||
| 55522D - GROMMET, GLOVE CONPARTMENT OPEN STOPPER | ||||
| 55522-91402 |
VG4# |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-9140203 |
VG40..D SHADOW GRAY,TRIM1# |
1 | ||
| 55528-9140204 |
VG40..D DARK BLUE,TRIM8# |
1 | ||
| 55551B - BRASKET, GLOVE CONPARTMENT DOOR BUMPER, RH | ||||
| 55586-40010 |
VG4# |
1 | ||
| 55551-91402 |
VG40 |
1 | ||
| 55552 - BRACKET, GLOVE COMPARTMENT DOOR BUMPER, RH | ||||
| 55552-91402 |
VG40 |
1 | ||
| 55587-40010 |
VG4# |
1 | ||
| 55574A - WSHER, INSTRUMENT PANEL CENTER COVER SETTING | ||||
| 55574-91401 |
VG4# |
1 | ||
| 55574-91401 |
VG4# |
6 | ||
| 55574A - WSHER, INSTRUMENT PANEL CENTER COVER SETTING | ||||
| 55574-91401 |
VG4# |
1 | ||
| 55574-91401 |
VG4# |
6 | ||
| 55574A - WSHER, INSTRUMENT PANEL CENTER COVER SETTING | ||||
| 55574-91401 |
VG4# |
1 | ||
| 55574-91401 |
VG4# |
6 | ||
| 55574A - WSHER, INSTRUMENT PANEL CENTER COVER SETTING | ||||
| 55574-91401 |
VG4# |
1 | ||
| 55574-91401 |
VG4# |
6 | ||
| 55594 - TRIM, GLOVE COMPARTMENT, LOWER | ||||
| 55594-40010 |
VG4# |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-9140903 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55601-9140901 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55601-91409E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55601-9140902 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55601-9140904 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-9140201 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55606-9140202 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55606-9140203 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55606-9140204 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55606-91402E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-9140401 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55607-9140404 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55607-9140402 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55607-91404E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55607-9140403 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55608-9140304 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55608-40020B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55608-9140302 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 55608-40020E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 55608-9140301 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 55608-9140303 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 55608-40020J0 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 55608C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-0601711 |
VG4#..E,L BLACK,TRIM2# |
5 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1#,NO.1 |
3 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8#,NO.2 |
2 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8#,NO.2 |
2 | ||
| 90467-0601722 |
VG4#..E,L MAROON,TRIM3# |
5 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8#,NO.1 |
3 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4#,NO.1 |
3 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4#,NO.2 |
2 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8#,NO.2 |
2 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8#,NO.2 |
2 | ||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8#,NO.2 |
2 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4#,NO.2 |
2 | ||
| 90467-0704143 |
VG4# SHADOW GRAY,TRIM1#,NO.2 |
2 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
5 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-06017B1 |
VG4# SHADOW GRAY,TRIM1# |
5 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
5 | ||
| 90467-06017E2 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 90467-06017E1 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 55608C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-0601711 |
VG4#..E,L BLACK,TRIM2# |
5 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1#,NO.1 |
3 | ||
| 90467-0704113 |
VG4#..E,L GRAY,TRIM1#,4#,8#,NO.2 |
2 | ||
| 90467-0704101 |
VG4#..E,L BLACK,TRIM1#,4#,8#,NO.2 |
2 | ||
| 90467-0601722 |
VG4#..E,L MAROON,TRIM3# |
5 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8#,NO.1 |
3 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4#,NO.1 |
3 | ||
| 90467-0704126 |
VG4#..E,L SABLE,TRIM4#,NO.2 |
2 | ||
| 90467-0704101 |
VG40..D BLACK,TRIM1#,8#,NO.2 |
2 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-0704113 |
VG40..D GRAY,TRIM1#,8#,NO.2 |
2 | ||
| 90467-0704134 |
VG4# DARK BLUE,TRIM8#,NO.2 |
2 | ||
| 90467-07041E0 |
VG4#..E,L OAK,TRIM4#,NO.2 |
2 | ||
| 90467-0704143 |
VG4# SHADOW GRAY,TRIM1#,NO.2 |
2 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
5 | ||
| 90467-0601754 |
VG4# DARK BLUE,TRIM8# |
5 | ||
| 90467-06017B1 |
VG4# SHADOW GRAY,TRIM1# |
5 | ||
| 90467-0601758 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 90467-0601753 |
VG4# GRAY,TRIM1# |
5 | ||
| 90467-06017E2 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 90467-06017E1 |
VG4#..E,L SABLE,TRIM4# |
5 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 90105-06097 | ||||
| 90119-06005 | ||||
| 90152-50040 | ||||
| 90159-50070 | ||||
| 90159-50163 | ||||
| 90159-60419 | ||||
| 90179-06036 | ||||
| 90183-04083 | ||||
| 90183-05006 | ||||
| 90183-05094 | ||||
| 90189-05010 | ||||
| 90189-05016 | ||||
| 90480-15172 | ||||
| 91656-40616 | ||||
| 93386-16025 | ||||
| 93520-55016 | ||||
| 93540-15014 | ||||
| 93540-54014 | ||||
| 93540-55016 | ||||
| 93560-14010 | ||||
| 93560-55014 | ||||
| 93567-55016 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
