VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )

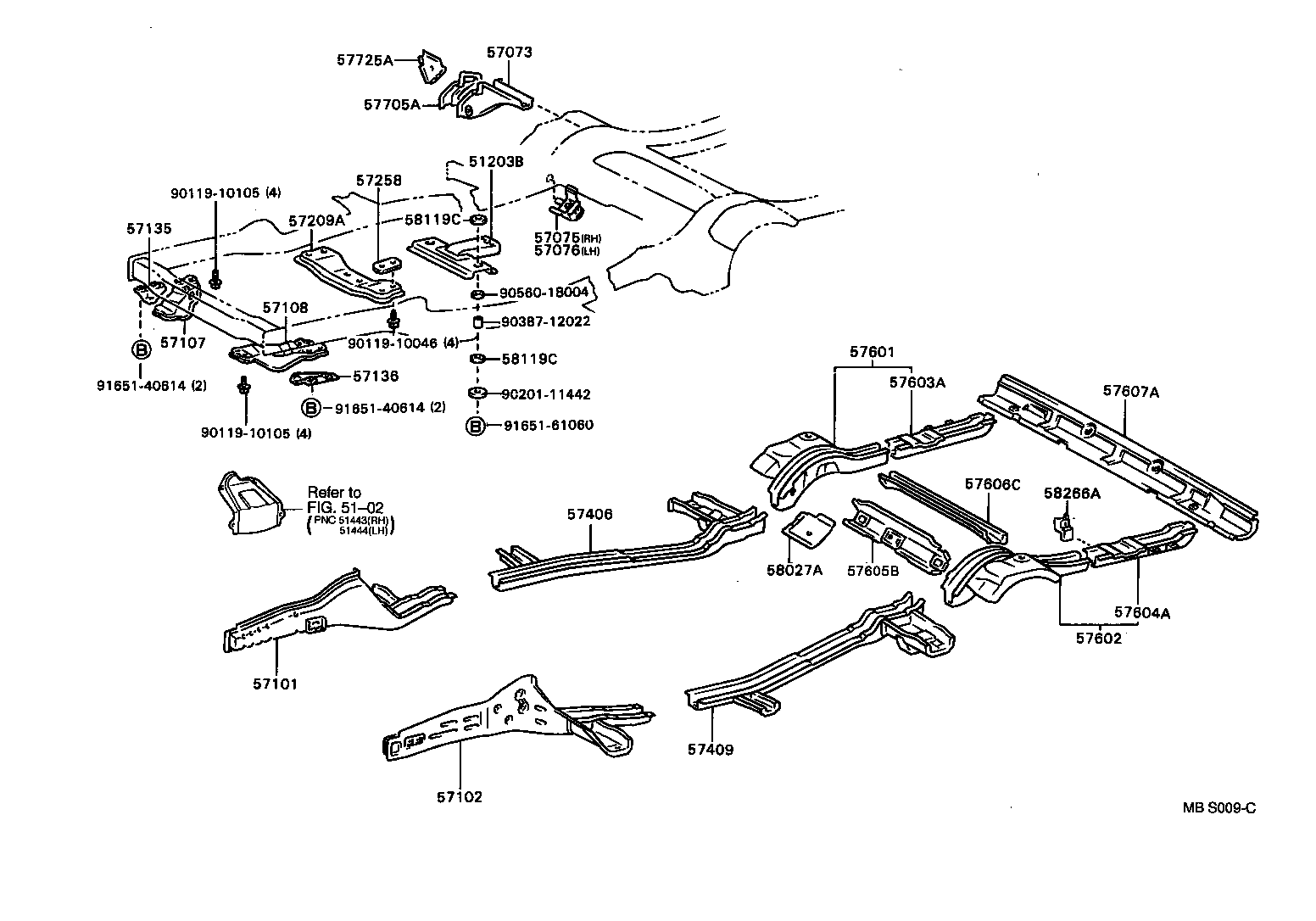

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51203B - CROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT | ||||
| 51203-91404 |
VG4# |
1 | ||
| 57073 - BRACKET SUB-ASSY, LATERAL ROD | ||||
| 57073-91402 |
VG4# |
1 | ||
| 57075 - BRACKET SUB-ASSY, UPPER CONTROL LINK, RH | ||||
| 57075-40010 |
VG4# |
1 | ||
| 57075-91401 |
VG4# |
1 | ||
| 57076 - BRACKET SUB-ASSY, UPPER CONTROL LINK, LH | ||||
| 57076-40010 |
VG4# |
1 | ||
| 57076-91401 |
VG4# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-91409 |
VG4# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-91408 |
VG4# |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-91403 |
VG4# |
1 | ||
| 57107-40010 |
VG4# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-40010 |
VG4# |
1 | ||
| 57108-91402 |
VG4# |
1 | ||
| 57135 - PLATE, STRUT BAR BRACKET, UPPER RH | ||||
| 57135-91402 |
VG4# |
1 | ||
| 57135-40010 |
VG4# |
1 | ||
| 57136 - PLATE, STRUT BAR BRACKET, UPPER LH | ||||
| 57136-91402 |
VG4# |
1 | ||
| 57136-40010 |
VG4# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-91401 |
VG4# |
1 | ||
| 57258 - PLATE, ENGINE REAR SUPPORT MEMBER | ||||
| 57258-91401 |
VG4# |
2 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-91401 |
VG40 |
1 | ||
| 57406-40010 |
VG40 |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-91401 |
VG40 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-91408 |
VG4# |
1 | ||
| 57601-40010 |
VG4# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-91409 |
VG4# |
1 | ||
| 57602-40010 |
VG4# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-91407 |
VG4# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-91408 |
VG4# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-40010 |
VG4# |
1 | ||
| 57605-91403 |
VG4# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-91406 |
VG4# |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-91402 |
VG4# |
1 | ||
| 57705A - PLATE SUB-ASSY, LATERAL ROD BRACKET | ||||
| 57705-91401 |
VG4# |
1 | ||
| 57725A - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT, RH | ||||
| 57725-91402 |
VG4# |
1 | ||
| 57725-40010 |
VG4# |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-40010 |
VG4# |
1 | ||
| 58027-91401 |
VG4# |
1 | ||
| 58119C - CUSHION, FRONT FLOOR | ||||
| 58119-91401 |
VG4# |
4 | ||
| 58119C - CUSHION, FRONT FLOOR | ||||
| 58119-91401 |
VG4# |
4 | ||
| Common parts | ||||
| 90119-10046 | ||||
| 90119-10105 | ||||
| 90201-11442 | ||||
| 90387-12022 | ||||
| 90560-18004 | ||||
| 91651-40614 | ||||
| 91651-61060 | ||||
| Linked diagrams | ||||
| 5102 | ||||
