VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

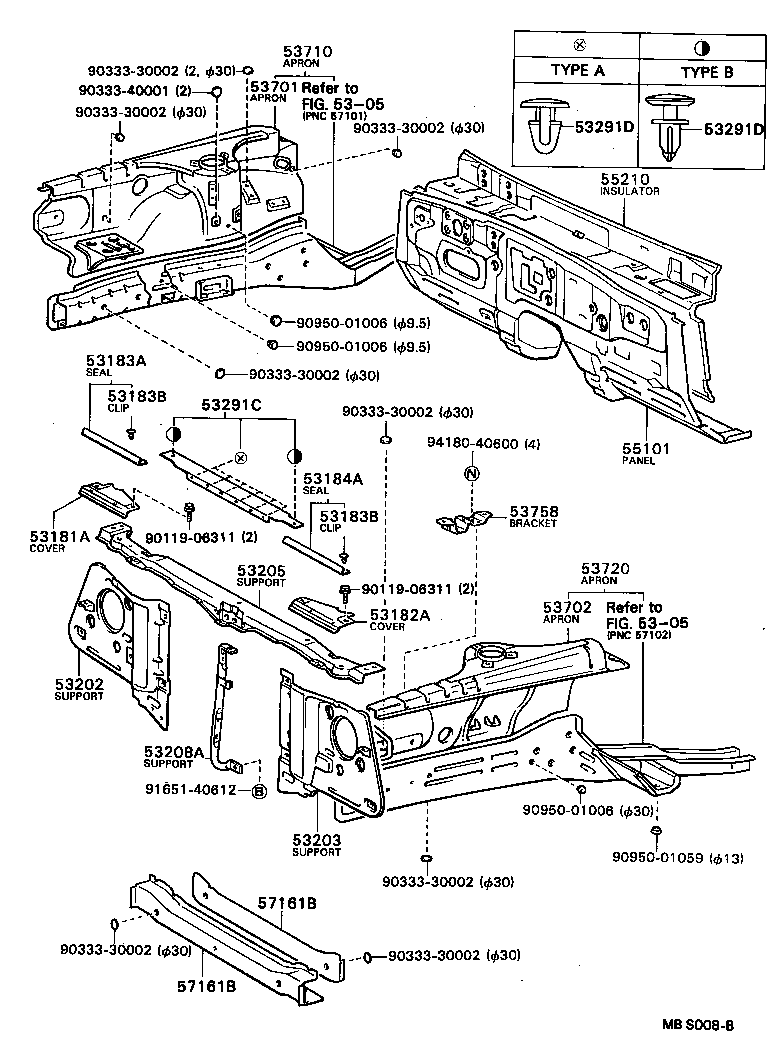

Click highlighted areas on diagram

diagram 5305 5305 53181A 53182A 53183A 53183B 53183B 53184A 53202 53203 53205 53208A 53291C 53291D 53291D 53701 53702 53710 53720 53758 55101 55210 57161B 57161B 9011906311 9011906311 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033340001 9095001006 9095001006 9095001006 9095001059 9165140612 9418040600
Part # Description Qty Price
53181A - COVER, HEADLAMP, RH
53181-91401

VG4#

 1
53182A - COVER, HEADLAMP, LH
53182-91401

VG4#

 1
53183A - SEAL, HEADLAMP COVER, RH
53183-91401

VG4#

 1
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

VG4#

 6
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

VG4#

 6
53184A - SEAL, HEADLAMP COVER, LH
53183-91401

VG4#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-91404

VG4#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-91403

VG4#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-91402

VG4#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-91404

VG4#

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53291-91401

VG4#

 1
53291D - CLIP, RADIATOR SUPPORT TO FRAME
90467-06005

VG4#

SIDE(TYPE B)

 2
90467-08011

VG4#

CENTER(TYPE A)

 6
53291D - CLIP, RADIATOR SUPPORT TO FRAME
90467-06005

VG4#

SIDE(TYPE B)

 2
90467-08011

VG4#

CENTER(TYPE A)

 6
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-91409

VG40

 1
53701-40030

VG4#

 1
53701-40010

VG4#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-91411

VG4#

 1
53702-40010

VG4#

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-91403

VG40

 1
53710-40010

VG4#

 1
53710-40030

VG4#

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-40010

VG4#

 1
53720-91402

VG4#

 1
53758 - BRACKET, IGNITION COIL MOUNTING
53758-91402

VG4#

 1
55101 - PANEL SUB-ASSY, DASH
55101-91491

VG4#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-91402

VG4#

 1
57161B - MEMBER, FRONT CROSS, FRONT
57161-91401

VG4#

ﾌﾛﾝﾄ

 1
57104-91402

VG4#

ﾘﾔ

 1
57161B - MEMBER, FRONT CROSS, FRONT
57161-91401

VG4#

ﾌﾛﾝﾄ

 1
57104-91402

VG4#

ﾘﾔ

 1
Common parts
90119-06311
90333-30002
90333-40001
90950-01006
90950-01059
91651-40612
94180-40600
Linked diagrams
5305
