VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

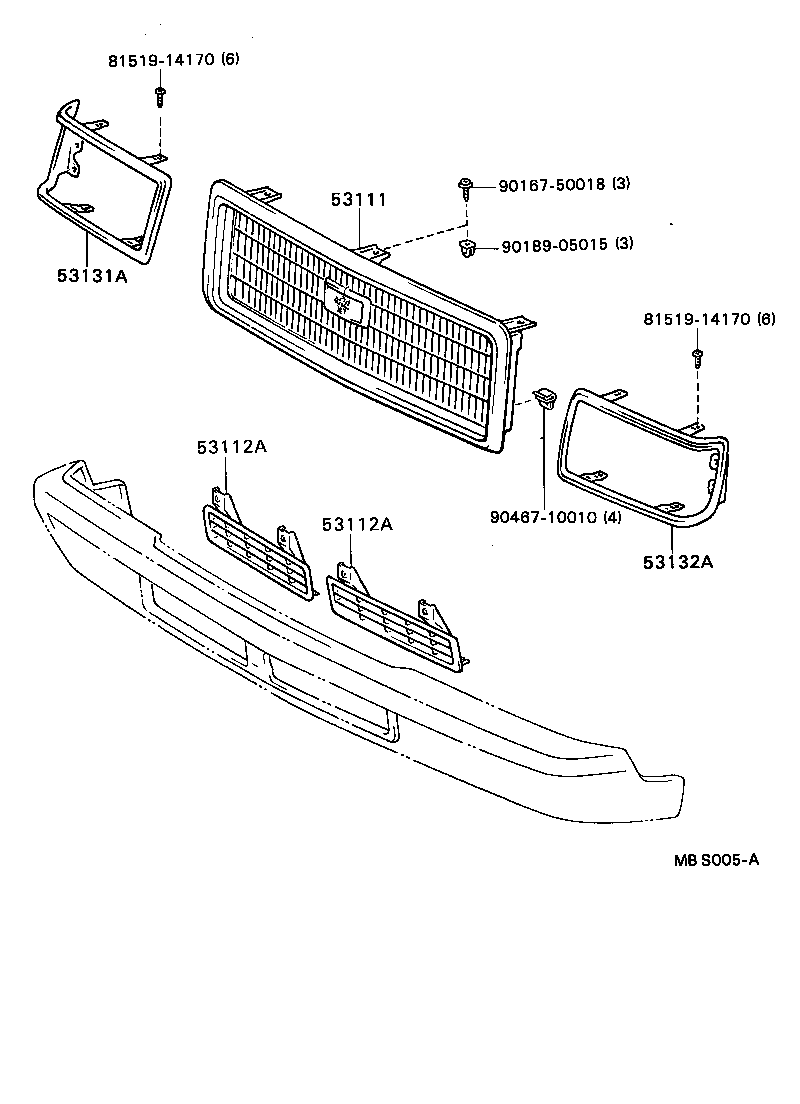

Click highlighted areas on diagram

diagram 53111 53112A 53112A 53131A 53132A 8151914170 8151914170 9016750018 9018905015 9046710010
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-91403

VG4#..E,L

 1
53100-40010

VG4#..E,L

 1
53100-40020

VG40..D

 1
53100-91404

VG40..D

 1
53112A - GRILLE, RADIATOR, LOWER
53112-91404

VG4#

 2
53112A - GRILLE, RADIATOR, LOWER
53112-91404

VG4#

 2
53131A - DOOR, HEADLAMP, RH
53131-91406

VG4#

 1
53132A - DOOR, HEADLAMP, LH
53132-91406

VG4#

 1
Common parts
81519-14170
90167-50018
90189-05015
90467-10010
