VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

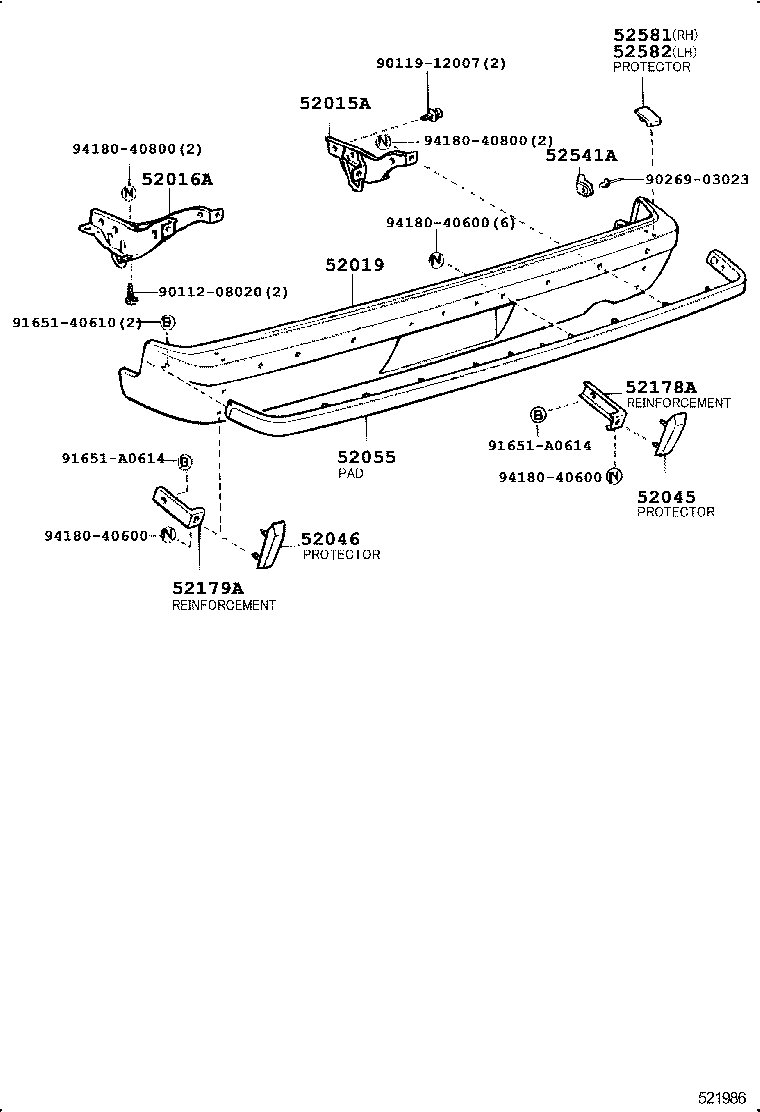

Click highlighted areas on diagram

diagram 52015A 52016A 52019 52045 52046 52055 52178A 52179A 52541A 52581 52582 9011208020 9011912007 9026903023 9165140610 91651A0614 91651A0614 9418040600 9418040600 9418040600 9418040800 9418040800
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-91402

VG4#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-91401

VG4#

 1
52019 - BAR SUB-ASSY, REAR BUMPER
52019-91401

VG4#

 1
52045 - PROTECTOR SUB-ASSY, REAR BUMPER, RH
52045-91401

VG4#

 1
52046 - PROTECTOR SUB-ASSY, REAR BUMPER, LH
52046-91401

VG4#

 1
52055 - PAD SUB-ASSY, REAR BUMPER
52055-91401

VG4#

 1
52178A - REINFORCEMENT, REAR BUMPER BAR CORNER, RH
52178-91402

VG4#

 1
52179A - REINFORCEMENT, REAR BUMPER BAR CORNER, LH
52178-91402

VG4#

 1
52541A - PROTECTOR, REAR BUMPER
52541-30011

VG4#

 2
52581 - PROTECTOR, REAR BUMPER, RH
52581-91401

VG4#

 1
52582 - PROTECTOR, REAR BUMPER, LH
52582-91401

VG4#

 1
Common parts
90112-08020
90119-12007
90269-03023
91651-40610
91651-A0614
94180-40600
94180-40800
