VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

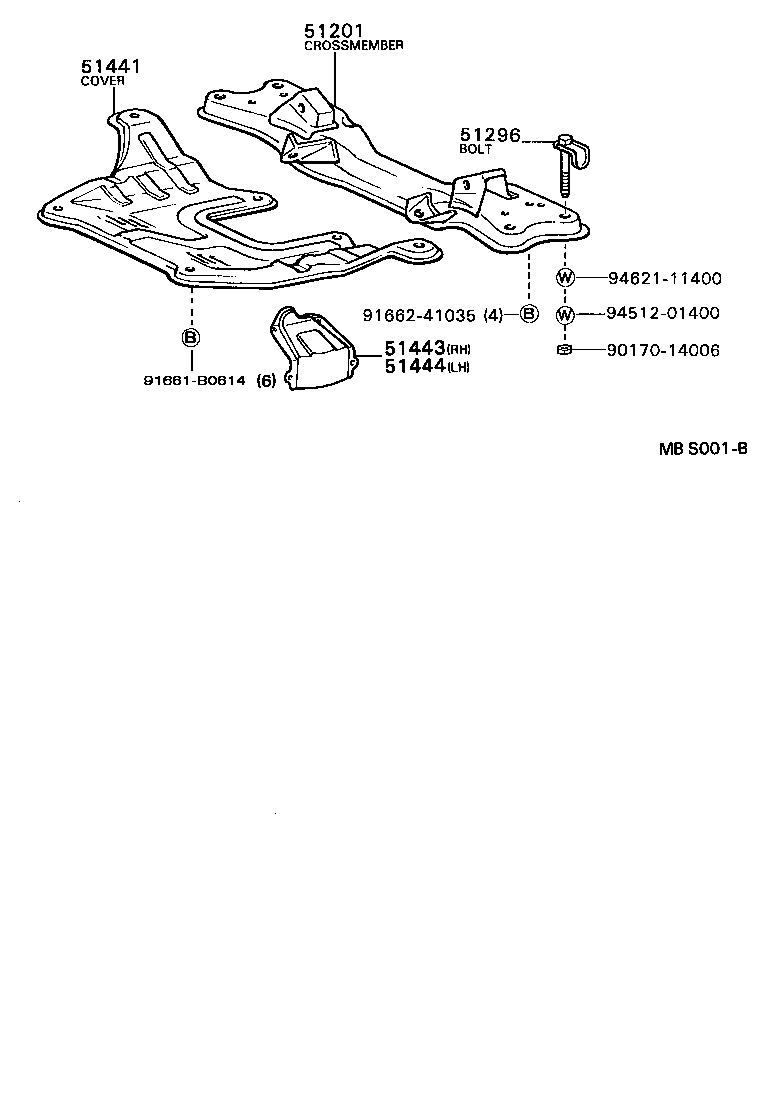

Click highlighted areas on diagram

diagram 51201 51296 51441 51443 51444 9017014006 91661B0614 9166241035 9451201400 9462111400
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-91401

VG4#

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-91401

VG4#

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-91401

VG4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-40020

VG4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-40020

VG4#

 1
Common parts
90170-14006
91661-B0614
91662-41035
94512-01400
94621-11400
