VG40-GEPGE (1987)
Toyota Century

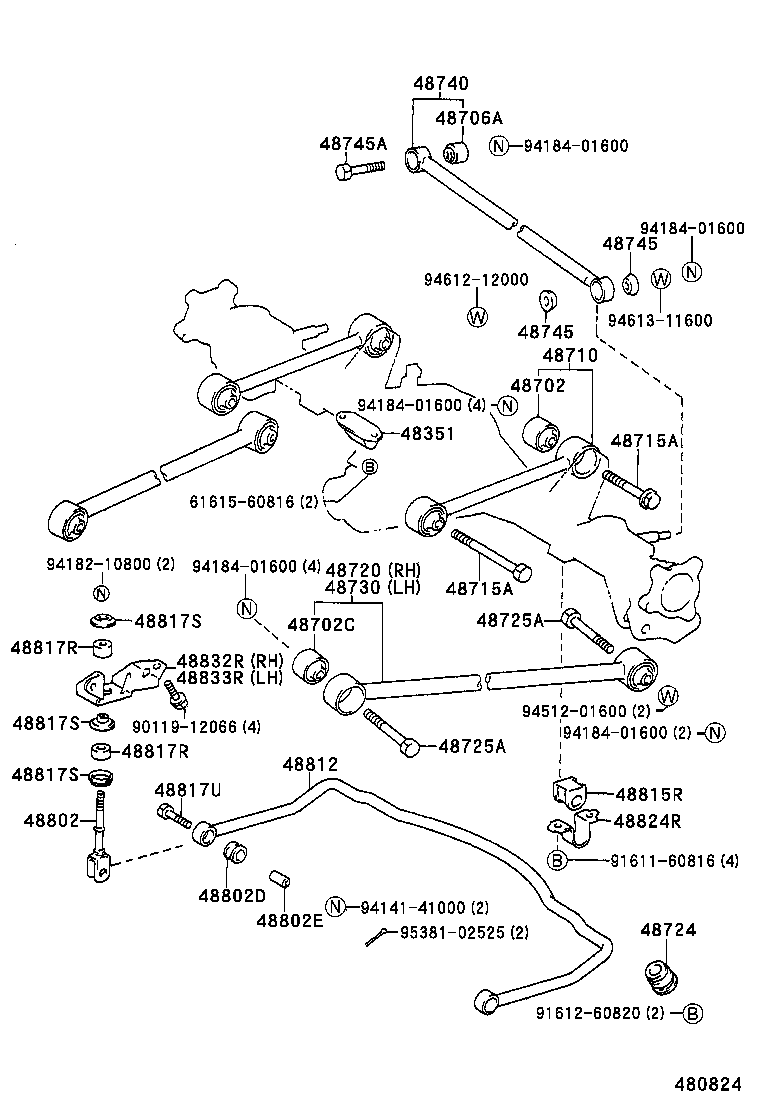

(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-40010 |
VG4# |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-40050 |
VG4# |
4 | ||
| 48702-40040 |
VG4# |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-40040 |
VG4# |
4 | ||
| 48702-40050 |
VG4# |
4 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-22010 |
VG4# |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-40061 |
VG4# |
2 | ||
| 48710-40062 |
VG4# |
2 | ||
| 48710-40040 |
VG4# |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-16442 |
VG4# L=95 |
2 | ||
| 90101-16001 |
VG4# L=163 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-16442 |
VG4# L=95 |
2 | ||
| 90101-16001 |
VG4# L=163 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-40052 |
VG4# |
1 | ||
| 48720-40020 |
VG4# |
1 | ||
| 48720-40020 |
VG40 |
1 | ||
| 48720-40051 |
VG4# |
1 | ||
| 48724 - DAMPER, LWR CONTROL ARM DYNAMIC | ||||
| 48724-40011 |
VG4# |
2 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-16442 |
VG4# |
4 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-16442 |
VG4# |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-40020 |
VG4# |
1 | ||
| 48720-40051 |
VG4# |
1 | ||
| 48720-40020 |
VG40 |
1 | ||
| 48720-40052 |
VG4# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-40021 |
VG4# |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20048 |
VG4# |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20048 |
VG4# |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90101-16009 |
VG4# |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-40010 |
VG40 |
2 | ||
| 48802-40020 |
VG40 |
2 | ||
| 48802-40030 |
VG4# 右側 |
1 | ||
| 48802-40020 |
VG4# |
2 | ||
| 48803-40010 |
VG4# 左側 |
1 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11002 |
VG4# |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
VG4# |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-40040 |
VG40..D |
1 | ||
| 48812-40090 |
VG40..D |
1 | ||
| 48812-40050 |
VG40..E |
1 | ||
| 48812-40060 |
VG4#..E,L |
1 | ||
| 48812-40100 |
VG4#..E,L |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30040 |
VG40..D |
2 | ||
| 48815-20060 |
VG4#..E,L |
2 | ||
| 48815-30040 |
VG40..E |
2 | ||
| 48815-14020 |
VG4#..E,L |
2 | ||
| 48815-40040 |
VG40..D |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
VG4# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-10010 |
VG4# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
VG4# 厚さ=1.0 |
2 | ||
| 90948-02024 |
VG4# 厚さ=1.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
VG4# 厚さ=1.0 |
2 | ||
| 90948-02024 |
VG4# 厚さ=1.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
VG4# 厚さ=1.0 |
2 | ||
| 90948-02024 |
VG4# 厚さ=1.2 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90102-10015 |
VG4# |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-22010 |
VG40 |
2 | ||
| 48824-40030 |
VG4# |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-40040 |
VG4# |
1 | ||
| 48832-40030 |
VG40 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-40030 |
VG40 |
1 | ||
| 48833-40040 |
VG4# |
1 | ||
| Common parts | ||||
| 61615-60816 | ||||
| 90119-12066 | ||||
| 91611-60816 | ||||
| 91612-60820 | ||||
| 94141-41000 | ||||
| 94182-10800 | ||||
| 94184-01600 | ||||
| 94512-01600 | ||||
| 94612-12000 | ||||
| 94613-11600 | ||||
| 95381-02525 | ||||

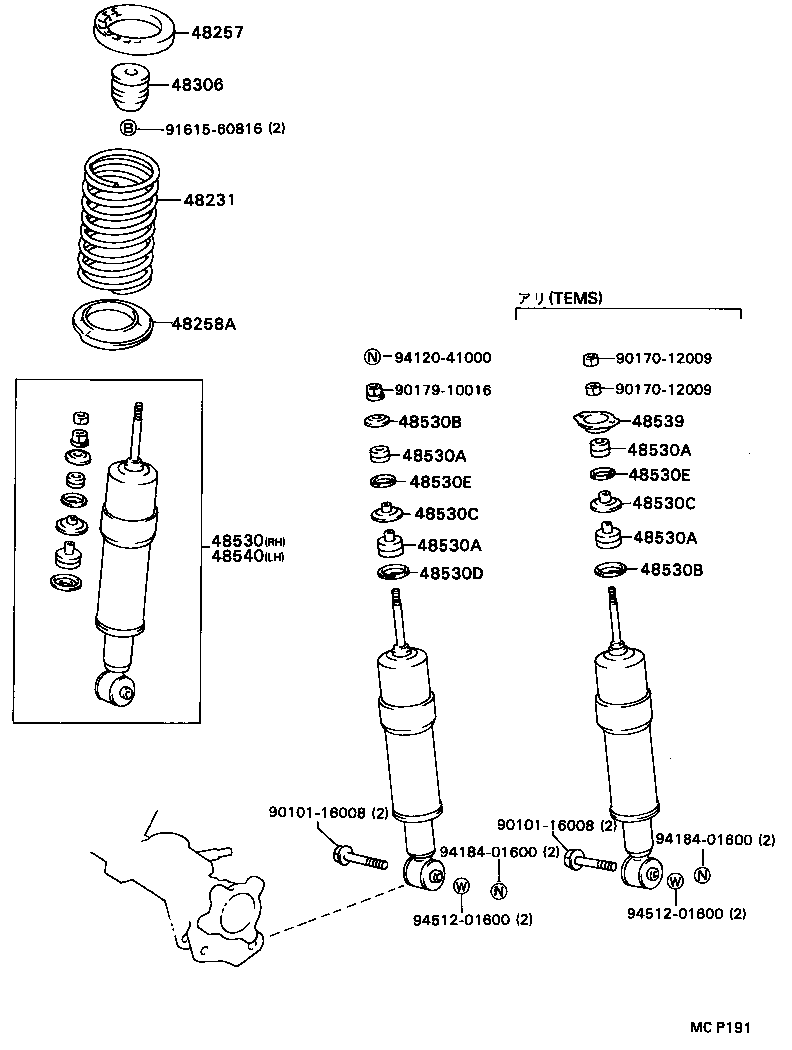

(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-40130 |
VG40..D 左側 |
1 | ||
| 48231-40120 |
VG40..D 右側 |
1 | ||
| 48231-40240 |
VG40..E 左側 |
1 | ||
| 48231-40230 |
VG40..E 右側 |
1 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-40020 |
VG4# |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-40020 |
VG4# |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-40030 |
VG4# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-49055 |
VG40..D |
1 | ||
| 48530-49055 |
VG4#..E,L |
1 | ||
| 48531-49045 |
VG40..D |
1 | ||
| 48530-49045 |
VG40..E ﾘﾑｼﾞﾝ ALL |
1 | ||
| 48530-49035 |
VG4#..E,L |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01020 |
VG4# UPPER |
2 | ||
| 90948-01048 |
VG4# UPPER |
2 | ||
| 90948-01053 |
VG4#..E,L LOWER |
2 | ||
| 90948-01036 |
VG4#..E,L LOWER |
2 | ||
| 90948-01054 |
VG40..D LOWER |
2 | ||
| 90948-01021 |
VG40..D LOWER |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01020 |
VG4# UPPER |
2 | ||
| 90948-01048 |
VG4# UPPER |
2 | ||
| 90948-01036 |
VG4#..E,L LOWER |
2 | ||
| 90948-01053 |
VG4#..E,L LOWER |
2 | ||
| 90948-01054 |
VG40..D LOWER |
2 | ||
| 90948-01021 |
VG40..D LOWER |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01020 |
VG4# UPPER |
2 | ||
| 90948-01048 |
VG4# UPPER |
2 | ||
| 90948-01036 |
VG4#..E,L LOWER |
2 | ||
| 90948-01053 |
VG4#..E,L LOWER |
2 | ||
| 90948-01054 |
VG40..D LOWER |
2 | ||
| 90948-01021 |
VG40..D LOWER |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01020 |
VG4# UPPER |
2 | ||
| 90948-01048 |
VG4# UPPER |
2 | ||
| 90948-01053 |
VG4#..E,L LOWER |
2 | ||
| 90948-01036 |
VG4#..E,L LOWER |
2 | ||
| 90948-01054 |
VG40..D LOWER |
2 | ||
| 90948-01021 |
VG40..D LOWER |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02059 |
VG40..D |
4 | ||
| 90948-02113 |
VG4#..E,L |
2 | ||
| 90948-02155 |
VG4#..E,L |
2 | ||
| 90948-02059 |
VG40..D |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02059 |
VG40..D |
4 | ||
| 90948-02113 |
VG4#..E,L |
2 | ||
| 90948-02155 |
VG4#..E,L |
2 | ||
| 90948-02059 |
VG40..D |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02156 |
VG4# |
2 | ||
| 90948-02058 |
VG4# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02156 |
VG4# |
2 | ||
| 90948-02058 |
VG4# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02158 |
VG40..D |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02157 |
VG4# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02157 |
VG4# |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-40030 |
VG4#..E,L |
2 | ||
| 48539-40010 |
VG4#..E,L |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-49025 |
VG40..E ﾘﾑｼﾞﾝ ALL |
1 | ||
| 48540-49015 |
VG4#..E,L |
1 | ||
| 48531-49045 |
VG40..D |
1 | ||
| 48531-49055 |
VG40..D |
1 | ||
| 48540-49035 |
VG4#..E,L |
1 | ||
| Common parts | ||||
| 90101-16008 | ||||
| 90170-12009 | ||||
| 90179-10016 | ||||
| 91615-60816 | ||||
| 94120-41000 | ||||
| 94184-01600 | ||||
| 94512-01600 | ||||
