VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )

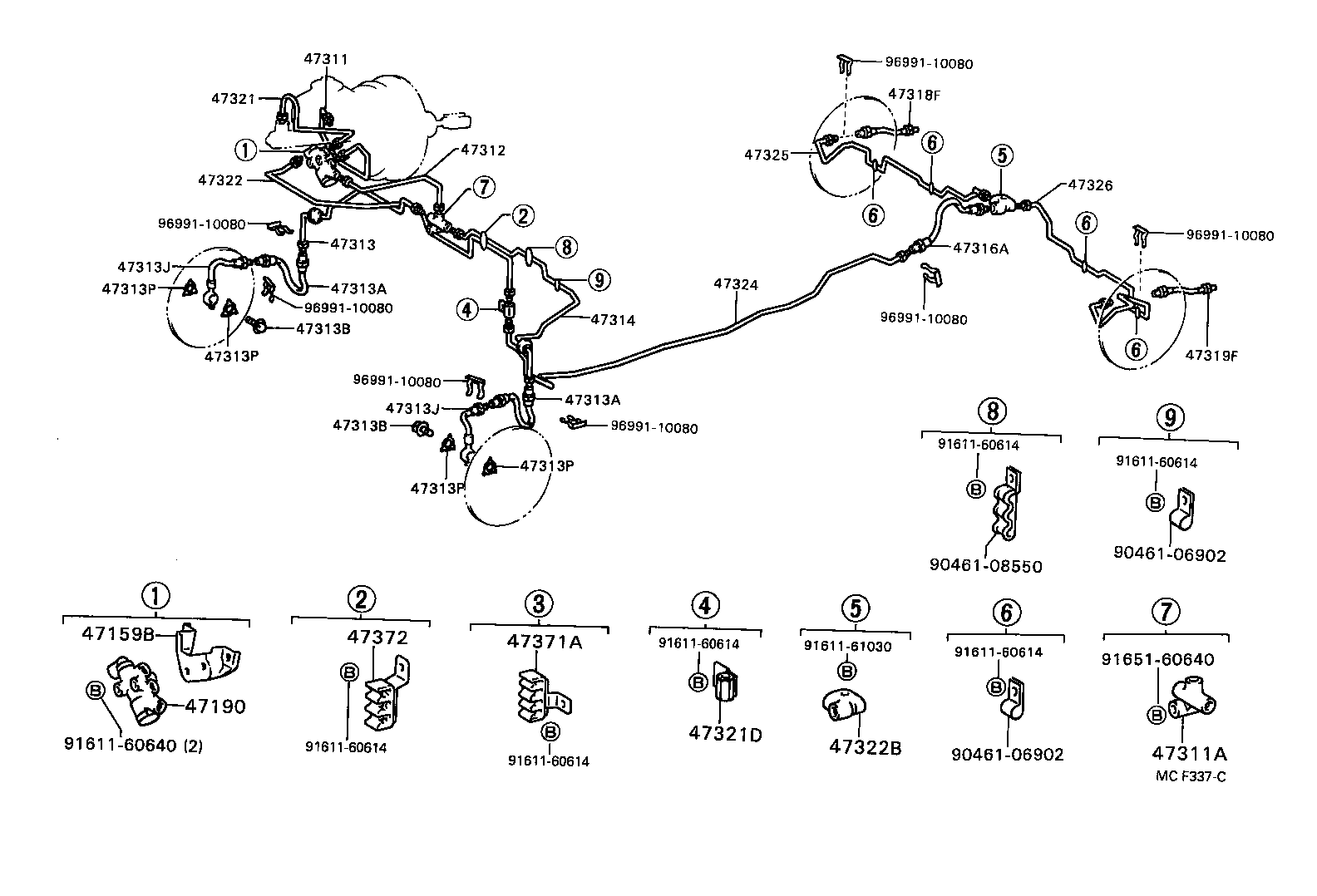

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30150 |
VG4# |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-40030 |
VG4# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-40081 |
VG4# |
1 | ||
| 47311-40080 |
VG40 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10002 |
VG40..D |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-40060 |
VG40..D |
1 | ||
| 47312-40050 |
VG40..E |
1 | ||
| 47312-40070 |
VG4#..E,L |
1 | ||
| 47312-40070 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47312-40040 |
VG40..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-40050 |
VG40..D |
1 | ||
| 47313-40060 |
VG40..E |
1 | ||
| 47313-40070 |
VG40..D |
1 | ||
| 47313-40080 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47313-40080 |
VG4#..E,L |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02947 |
VG4# |
2 | ||
| 96950-32906 |
VG4# |
2 | ||
| 96950-32905 |
VG4# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02947 |
VG4# |
2 | ||
| 96950-32906 |
VG4# |
2 | ||
| 96950-32905 |
VG4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
VG4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
VG4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02741 |
VG4# |
2 | ||
| 96960-39906 |
VG4# |
2 | ||
| 90947-02930 |
VG4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02741 |
VG4# |
2 | ||
| 96960-39906 |
VG4# |
2 | ||
| 90947-02930 |
VG4# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-40070 |
VG40..E |
1 | ||
| 47314-40080 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47314-40060 |
VG40..D |
1 | ||
| 47314-40080 |
VG4#..E,L |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02946 |
VG4# |
1 | ||
| 96940-32606 |
VG4# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-32156 |
VG4# |
1 | ||
| 90947-02932 |
VG4# |
1 | ||
| 96940-32106 |
VG4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-32156 |
VG4# |
1 | ||
| 96940-32106 |
VG4# |
1 | ||
| 90947-02932 |
VG4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-40010 |
VG40 |
1 | ||
| 47321-40011 |
VG4# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10167 |
VG4# |
1 | ||
| 90412-10041 |
VG4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-40040 |
VG40..E |
1 | ||
| 47322-40060 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47322-40050 |
VG40..D |
1 | ||
| 47322-40060 |
VG4#..E,L |
1 | ||
| 47322-40030 |
VG40..D |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10086 |
VG4# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-40020 |
VG40 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-40020 |
VG4# |
1 | ||
| 47325-40010 |
VG4# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-40010 |
VG4# |
1 | ||
| 47326-40020 |
VG4# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-40010 |
VG4# |
1 | ||
| 47371-40010 |
VG40..E |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-40020 |
VG4# |
1 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 90461-08550 | ||||
| 91611-60614 | ||||
| 91611-60640 | ||||
| 91611-61030 | ||||
| 91651-60640 | ||||
| 96991-10080 | ||||

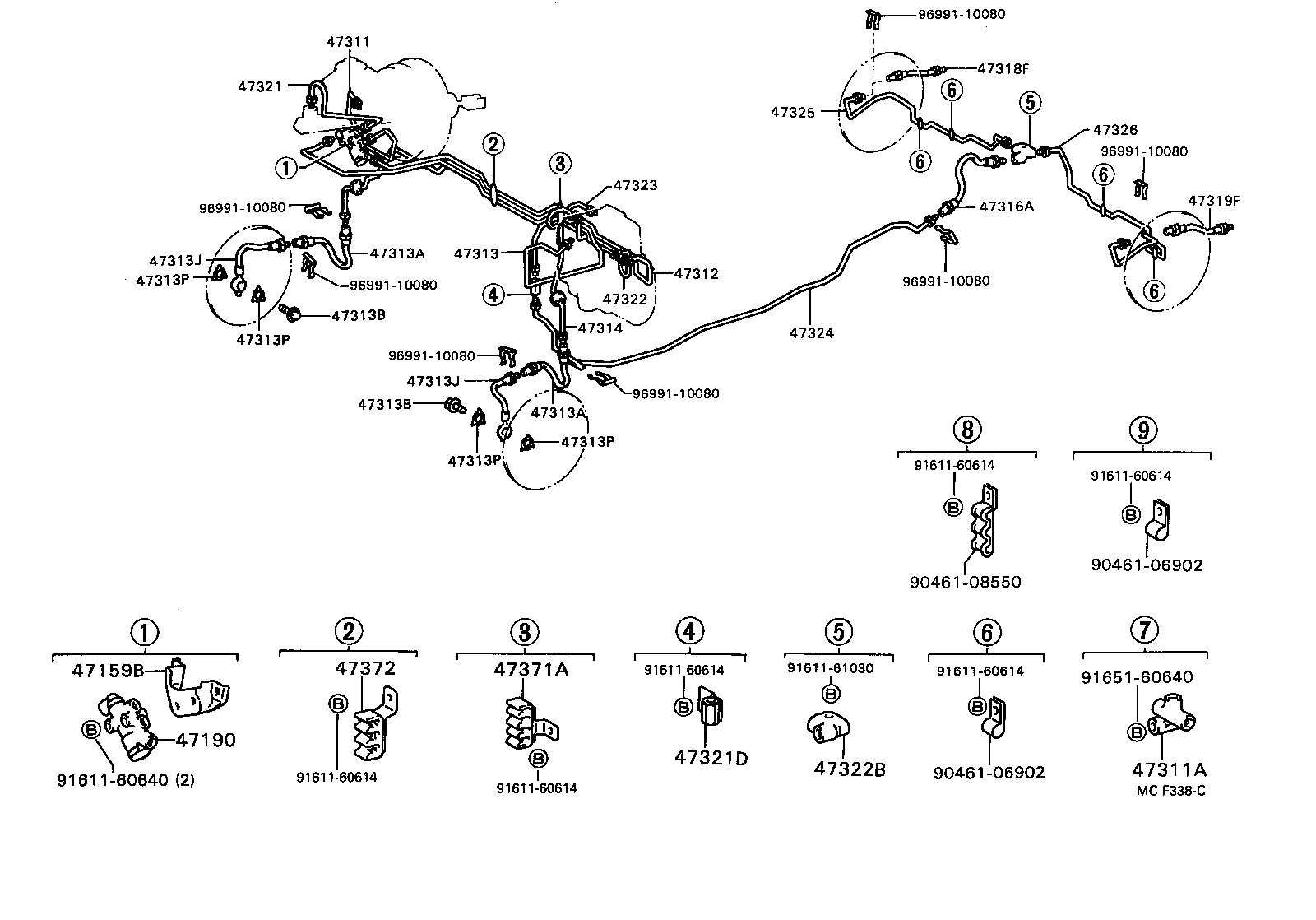

ILLUST NO. 1 OF 2(8709- )
Click highlighted areas on diagram
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30150 |
VG4# |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-40030 |
VG4# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-40081 |
VG4# |
1 | ||
| 47311-40080 |
VG40 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10002 |
VG40..D |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-40060 |
VG40..D |
1 | ||
| 47312-40050 |
VG40..E |
1 | ||
| 47312-40070 |
VG4#..E,L |
1 | ||
| 47312-40070 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47312-40040 |
VG40..D |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-40050 |
VG40..D |
1 | ||
| 47313-40060 |
VG40..E |
1 | ||
| 47313-40070 |
VG40..D |
1 | ||
| 47313-40080 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47313-40080 |
VG4#..E,L |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02947 |
VG4# |
2 | ||
| 96950-32906 |
VG4# |
2 | ||
| 96950-32905 |
VG4# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02947 |
VG4# |
2 | ||
| 96950-32906 |
VG4# |
2 | ||
| 96950-32905 |
VG4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
VG4# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
VG4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02741 |
VG4# |
2 | ||
| 96960-39906 |
VG4# |
2 | ||
| 90947-02930 |
VG4# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02741 |
VG4# |
2 | ||
| 96960-39906 |
VG4# |
2 | ||
| 90947-02930 |
VG4# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
VG4# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-40070 |
VG40..E |
1 | ||
| 47314-40080 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47314-40060 |
VG40..D |
1 | ||
| 47314-40080 |
VG4#..E,L |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02946 |
VG4# |
1 | ||
| 96940-32606 |
VG4# |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-32156 |
VG4# |
1 | ||
| 90947-02932 |
VG4# |
1 | ||
| 96940-32106 |
VG4# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-32156 |
VG4# |
1 | ||
| 96940-32106 |
VG4# |
1 | ||
| 90947-02932 |
VG4# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-40010 |
VG40 |
1 | ||
| 47321-40011 |
VG4# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10167 |
VG4# |
1 | ||
| 90412-10041 |
VG4# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-40040 |
VG40..E |
1 | ||
| 47322-40060 |
VG40..D ｱﾘ(ABS) |
1 | ||
| 47322-40050 |
VG40..D |
1 | ||
| 47322-40060 |
VG4#..E,L |
1 | ||
| 47322-40030 |
VG40..D |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10086 |
VG4# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-40030 |
VG4# |
1 | ||
| 47323-40020 |
VG40..E |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-40020 |
VG40 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-40020 |
VG4# |
1 | ||
| 47325-40010 |
VG4# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-40010 |
VG4# |
1 | ||
| 47326-40020 |
VG4# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-40010 |
VG4# |
1 | ||
| 47371-40010 |
VG40..E |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-40020 |
VG4# |
1 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 90461-08550 | ||||
| 91611-60614 | ||||
| 91611-60640 | ||||
| 91611-61030 | ||||
| 91651-60640 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 2(8709- )
Click highlighted areas on diagram
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-40030 |
VG40..E |
1 | ||
| 44510-40020 |
VG40..E |
1 | ||
| 44510-40040 |
VG4#..E,L |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
VG4#..E,L |
2 | ||
| 44544A - CLAMP, BRAKE ACTUATOR WIRE | ||||
| 44548-32010 |
VG4#..E,L |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
VG40..E |
3 | ||
| 44545-22070 |
VG4#..E,L |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
VG4#..E,L |
3 | ||
| 44546-14010 |
VG40..E |
3 | ||
| 44547 - CASE, RELAY(FOR BRAKE ACTUATOR) | ||||
| 44547-40020 |
VG40..E |
1 | ||
| 44547-40040 |
VG4#..E,L |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-40010 |
VG40..E |
1 | ||
| 44591-40011 |
VG4#..E,L |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-40020 |
VG4#..E,L |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-40010 |
VG4#..E,L |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-40010 |
VG4#..E,L |
1 | ||
| Common parts | ||||
| 90119-08157 | ||||
| 91651-60814 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
