VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

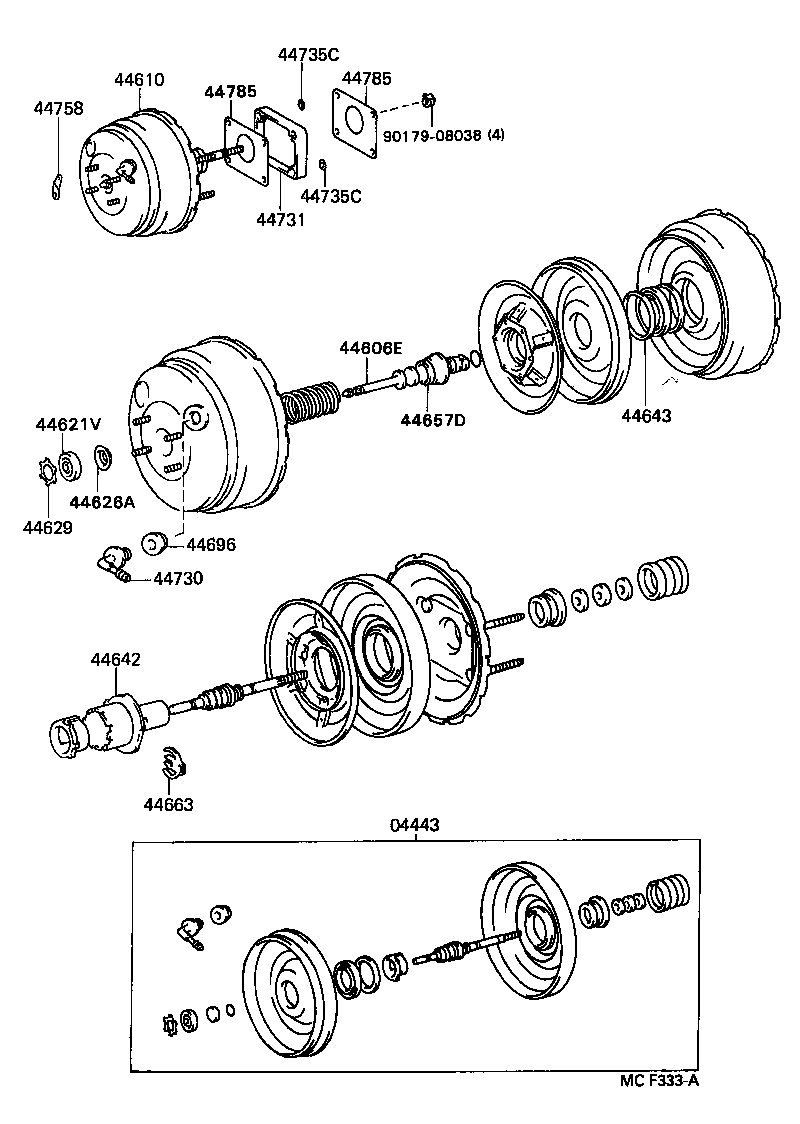

ILLUST NO. 1 OF 2(8709-9212)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-40060 |
VG4# |
1 | ||
| 04443-40050 |
VG40 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-20800 |
VG4# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-40081 |
VG40 |
1 | ||
| 44610-40080 |
VG40 |
1 | ||
| 44610-40091 |
VG4# |
1 | ||
| 44610-40090 |
VG4# |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
VG4# |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
VG4# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
VG4# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
VG4# |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
VG4# |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-30560 |
VG4# |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-20800 |
VG4# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
VG4# |
1 | ||
| 90480-24517 |
VG4# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
VG4# |
1 | ||
| 44730-14060 |
VG4# |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
VG40 |
1 | ||
| 44731-40010 |
VG4# |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
VG4# |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
VG4# |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30100 |
VG4# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
VG4# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
VG4# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||

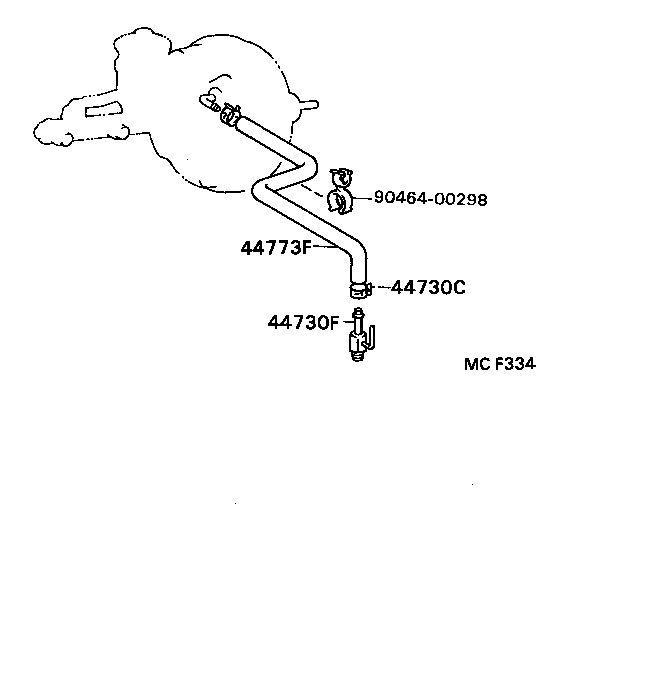

ILLUST NO. 2 OF 2(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
VG4# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51009 |
VG4# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-40050 |
VG4# |
1 | ||
| Common parts | ||||
| 90464-00298 | ||||

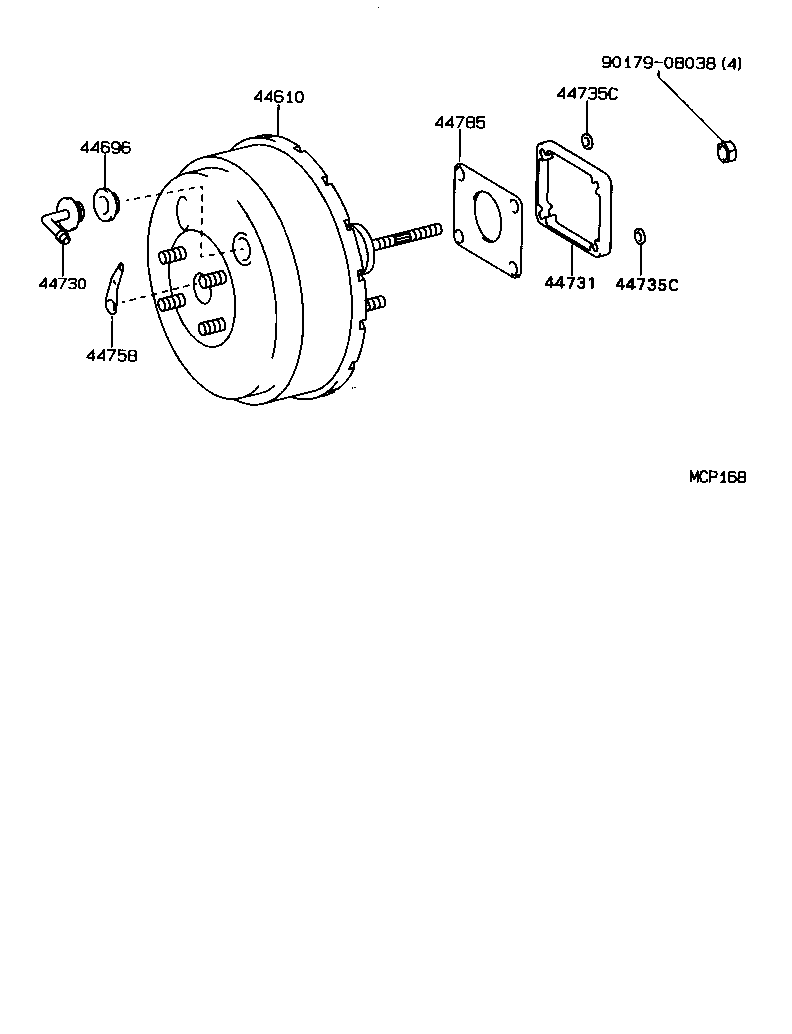

ILLUST NO. 1 OF 2(9212- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-40081 |
VG40 |
1 | ||
| 44610-40080 |
VG40 |
1 | ||
| 44610-40091 |
VG4# |
1 | ||
| 44610-40090 |
VG4# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
VG4# |
1 | ||
| 90480-24517 |
VG4# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
VG4# |
1 | ||
| 44730-14060 |
VG4# |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
VG40 |
1 | ||
| 44731-40010 |
VG4# |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
VG4# |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
VG4# |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30100 |
VG4# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
VG4# |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
