VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

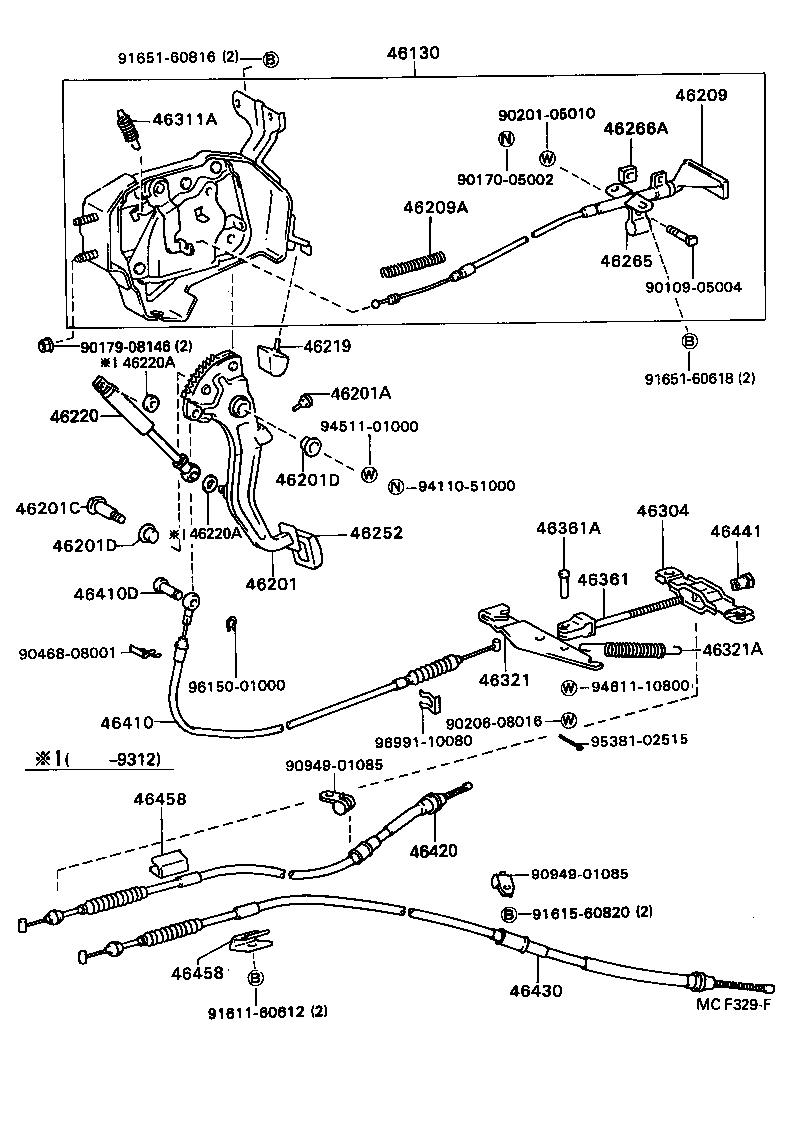

ILLUST NO. 1 OF 2(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-40031 |
VG4# |
1 | ||
| 46130-40030 |
VG40 |
1 | ||
| 46130-40032 |
VG4# |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-40021 |
VG4# |
1 | ||
| 46201-40022 |
VG4# |
1 | ||
| 46201-40020 |
VG40 |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
VG4# |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
VG4# |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
VG4# |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
VG4# |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30010 |
VG4# |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
VG4# |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07005 |
VG4# |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
VG4# |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
VG4# |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
VG4# |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
VG4# |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-40010 |
VG4# |
1 | ||
| 46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
VG4# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-40020 |
VG4# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-07007 |
VG4# |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-40040 |
VG4# |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-20030 |
VG4# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-40010 |
VG4# |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-08059 |
VG4# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-40060 |
VG4# |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
VG4# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-40061 |
VG40 |
1 | ||
| 46420-40060 |
VG40 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46420-40060 |
VG40 |
1 | ||
| 46420-40061 |
VG40 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-22010 |
VG4# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
VG4# |
2 | ||
| 46458-20020 |
VG40 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
VG4# |
2 | ||
| 46458-20020 |
VG40 |
2 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 90949-01085 | ||||
| 91611-60612 | ||||
| 91615-60820 | ||||
| 91651-60618 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 95381-02515 | ||||
| 96150-01000 | ||||
| 96991-10080 | ||||

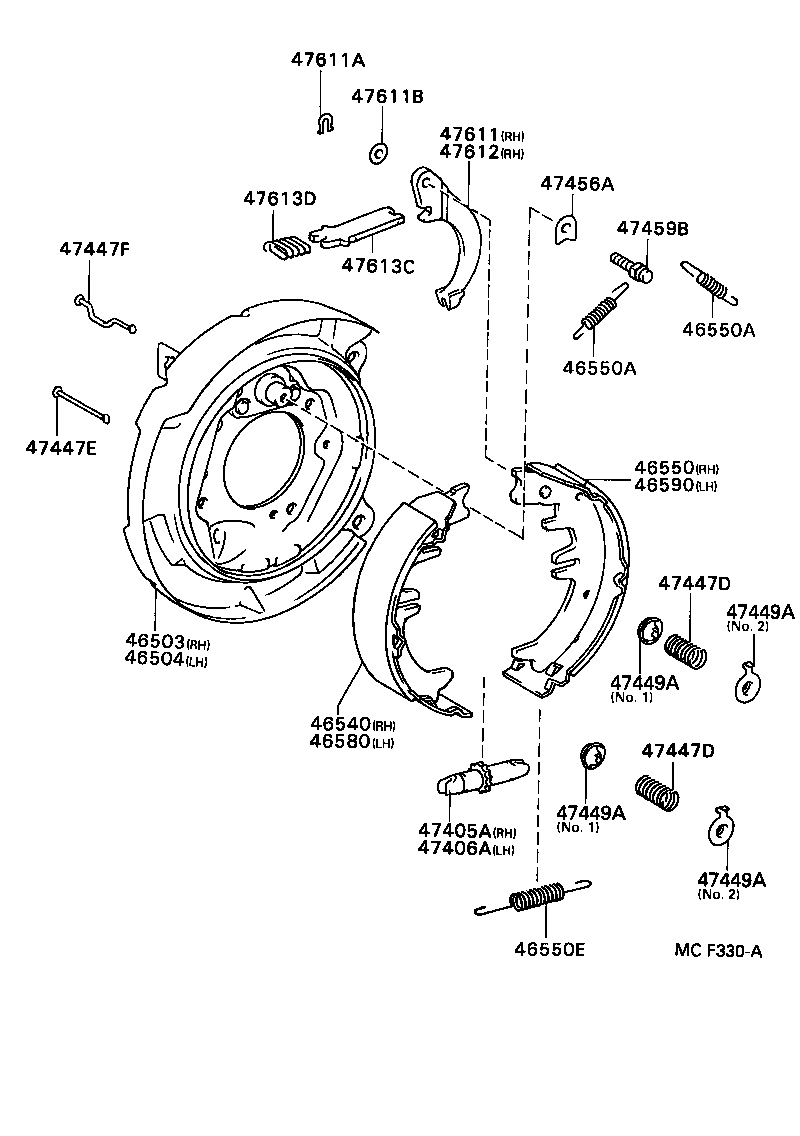

ILLUST NO. 2 OF 2(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-40010 |
VG4# |
1 | ||
| 46503-40020 |
VG4# |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-40020 |
VG4# |
1 | ||
| 46504-40010 |
VG4# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-24010 |
VG4# |
1 | ||
| 46540-30030 |
VG4# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-24010 |
VG4# |
1 | ||
| 46550-30030 |
VG4# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
VG4# PRIMARY |
2 | ||
| 90506-16007 |
VG4# SECONDARY |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
VG4# PRIMARY |
2 | ||
| 90506-16007 |
VG4# SECONDARY |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
VG4# |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-30030 |
VG4# |
1 | ||
| 46540-24010 |
VG4# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-24010 |
VG4# |
1 | ||
| 46590-30020 |
VG4# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
VG4# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
VG4# |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
VG4# PRIMARY |
2 | ||
| 90501-16053 |
VG4# SECONDARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
VG4# PRIMARY |
2 | ||
| 90501-16053 |
VG4# SECONDARY |
2 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-35020 |
VG4# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-40020 |
VG4# |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
VG4# NO.1 |
4 | ||
| 47449-40010 |
VG4# NO.2 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
VG4# NO.1 |
4 | ||
| 47449-40010 |
VG4# NO.2 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
VG4# NO.1 |
4 | ||
| 47449-40010 |
VG4# NO.2 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
VG4# NO.1 |
4 | ||
| 47449-40010 |
VG4# NO.2 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
VG4# |
2 | ||
| 47456-20030 |
VG4# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
VG4# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-40010 |
VG4# |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
VG4# |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09186 |
VG4# 厚さ=0.9 |
1 | ||
| 90564-09184 |
VG4# 厚さ=0.3 |
1 | ||
| 90564-09185 |
VG4# 厚さ=0.6 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-40010 |
VG4# |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-22020 |
VG4# |
2 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
VG4# |
2 | ||
