VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

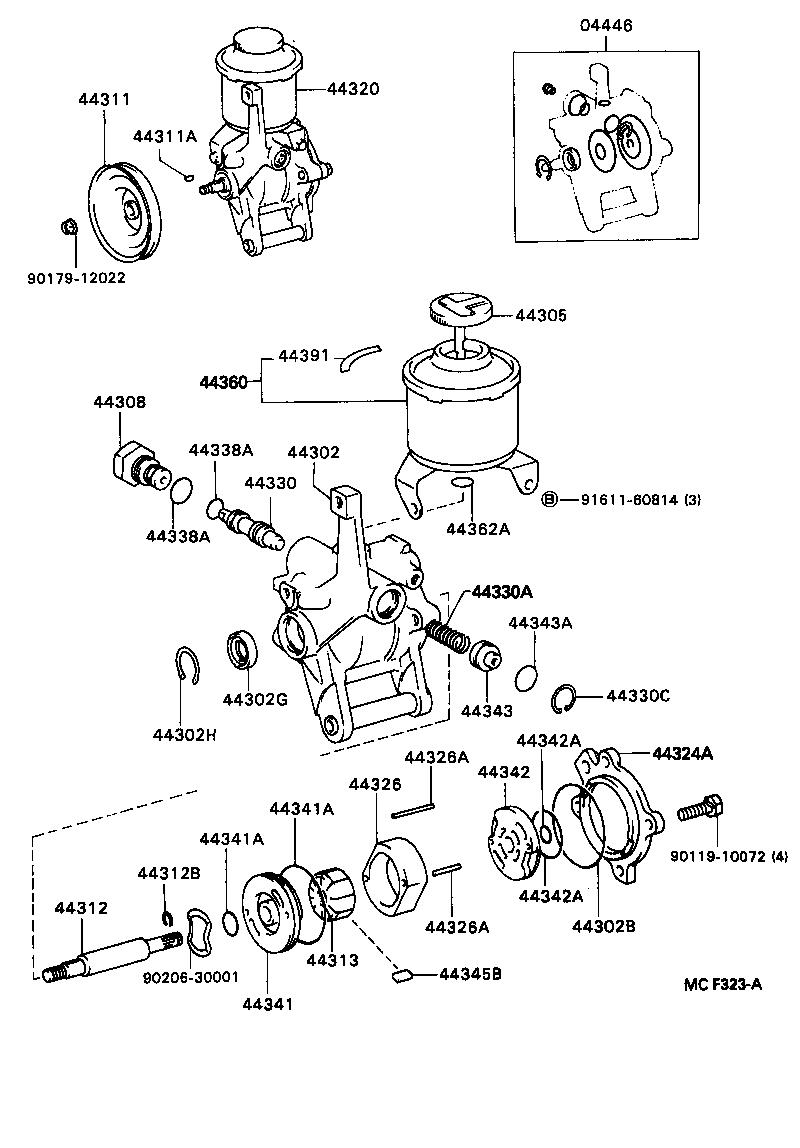

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302G 44302H 44305 44308 44311 44311A 44312 44312B 44313 44320 44324A 44326 44326A 44326A 44330 44330A 44330C 44338A 44338A 44341 44341A 44341A 44342 44342A 44342A 44343 44343A 44345B 44360 44362A 44391 9011910072 9017912022 9020630001 9161160814
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30090

VG4#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-40011

VG4#

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-63002

VG4#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18008

VG4#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-32001

VG4#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30040

VG4#

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-40010

VG4#

 1
44311 - PULLEY, VANE PUMP
44311-40030

VG4#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

VG4#

 1
44312 - SHAFT, VANE PUMP
44312-12020

VG4#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

VG4#

 1
44313 - ROTOR, VANE PUMP
44313-32010

VG4#

ﾏｰｸ無し

 1
44313-32040

VG4#

ﾏｰｸ 3

 1
44313-32050

VG4#

ﾏｰｸ 4

 1
44313-32020

VG4#

ﾏｰｸ 1

 1
44313-32030

VG4#

ﾏｰｸ 2

 1
44320 - PUMP ASSY, VANE
44320-40060

VG4#

 1
44324A - HOUSING, PUMP, REAR
44324-40010

VG4#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-22030

VG4#

ﾏｰｸ 1

 1
44325-22020

VG4#

ﾏｰｸ無し

 1
44325-22040

VG4#

ﾏｰｸ 2

 1
44325-22060

VG4#

ﾏｰｸ 4

 1
44325-22050

VG4#

ﾏｰｸ 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

VG4#

長さ=25,外径=5.0

 1
90250-05017

VG4#

長さ=43.5,外径=5.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

VG4#

長さ=25,外径=5.0

 1
90250-05017

VG4#

長さ=43.5,外径=5.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-30100

VG40

ﾏｰｸ A

 1
44330-30130

VG40

ﾏｰｸ D

 1
44330-30140

VG40

ﾏｰｸ E

 1
44330-30150

VG40

ﾏｰｸ F

 1
44330-32130

VG4#

ﾏｰｸ A

 1
44330-30120

VG40

ﾏｰｸ C

 1
44330-30110

VG40

ﾏｰｸ B

 1
44330-32180

VG4#

ﾏｰｸ F

 1
44330-40050

VG4#

ﾏｰｸ E

 1
44330-40020

VG4#

ﾏｰｸ B

 1
44330-32170

VG4#

ﾏｰｸ E

 1
44330-32150

VG4#

ﾏｰｸ C

 1
44330-32160

VG4#

ﾏｰｸ D

 1
44330-40040

VG4#

ﾏｰｸ D

 1
44330-40030

VG4#

ﾏｰｸ C

 1
44330-40010

VG4#

ﾏｰｸ A

 1
44330-32140

VG4#

ﾏｰｸ B

 1
44330-40060

VG4#

ﾏｰｸ F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

VG4#

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-02200

VG4#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

VG4#

外径=25.5,内径=22.5

 1
96711-19014

VG4#

外径=17.0,内径=13.0

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

VG4#

外径=25.5,内径=22.5

 1
96711-19014

VG4#

外径=17.0,内径=13.0

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30030

VG4#

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-21001

VG4#

内側

 1
90301-56002

VG4#

外側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-21001

VG4#

内側

 1
90301-56002

VG4#

外側

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-30020

VG4#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-13004

VG4#

内側

 1
90301-30004

VG4#

外側

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-13004

VG4#

内側

 1
90301-30004

VG4#

外側

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12030

VG4#

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19019

VG4#

 1
44345B - PLATE, VANE PUMP
44345-12030

VG4#

長さ=14.993

 10
44345-12040

VG4#

長さ=14.991

 10
44345-12020

VG4#

長さ=14.995

 10
44345-12010

VG4#

長さ=14.997

 10
44345-12050

VG4#

長さ=14.989

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44306-40040

VG4#

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
96711-19013

VG4#

 1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-14010

VG4#

 1
Common parts
90119-10072
90179-12022
90206-30001
91611-60814
