VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

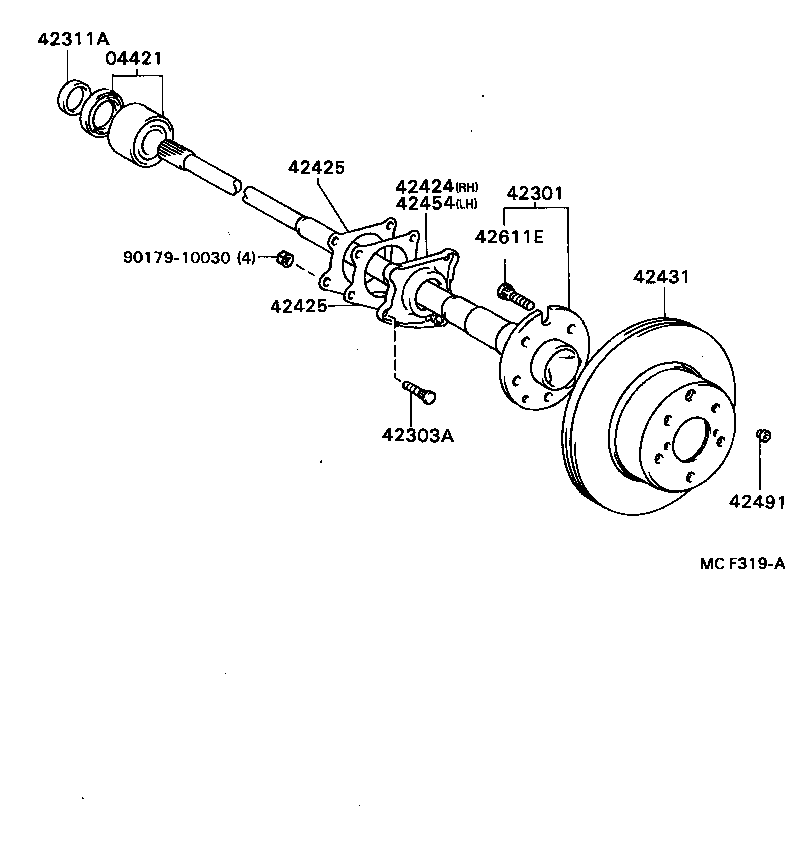

Click highlighted areas on diagram

diagram 04421 42301 42303A 42311A 42424 42425 42425 42431 42454 42491 42611E 9017910030
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-40010

VG4#

 2
42301 - SHAFT SUB-ASSY, REAR AXLE
42301-40010

VG4#

 2
42301-40020

VG4#

 2
42303A - BOLT, SERRATION (FOR REAR AXLE FLANGE)
90114-10002

VG4#

 8
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-58118

VG4#

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42405-40010

VG4#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-40010

VG4#

 4
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-40010

VG4#

 4
42431 - DISC, REAR
42431-40070

VG4#

 2
42431-40051

VG4#

 2
42431-40060

VG4#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42406-40010

VG4#

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

VG4#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

VG4#

 10
Common parts
90179-10030
