VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

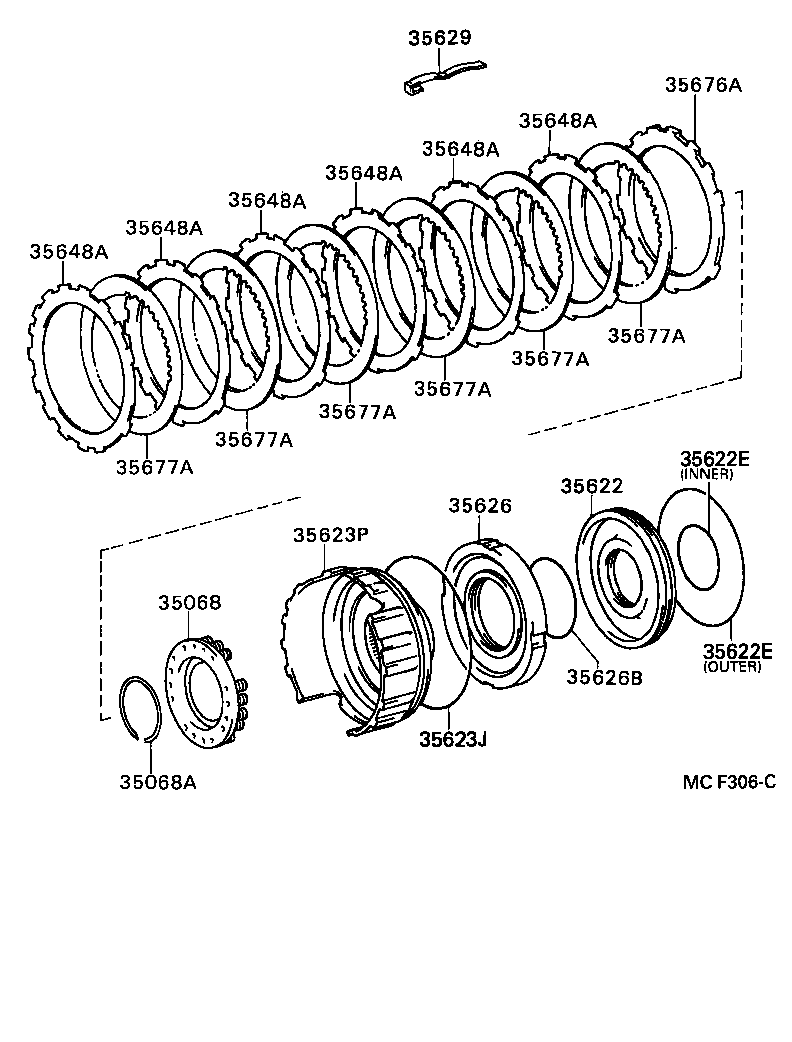

Click highlighted areas on diagram

A340E

diagram 35068 35068A 35622 35622E 35622E 35623J 35623P 35626 35626B 35629 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-50010

VG4#

 1
35068-30011

VG4#

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-52262

VG4#

 1
35622 - PISTON, BRAKE, NO.2
35622-30010

VG4#

 1
35622E - RING, O (FOR BRAKE PISTON NO.2)
90301-57188

VG4#

内側

 1
90301-99193

VG4#

外側

 1
35622E - RING, O (FOR BRAKE PISTON NO.2)
90301-57188

VG4#

内側

 1
90301-99193

VG4#

外側

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99192

VG4#

 1
35623P - PISTON, 1ST & REVERSE BRAKE, NO.2
35623-14011

VG4#

 1
35623-50010

VG4#

 1
35623-14010

VG40

 1
35626 - SLEEVE, BRAKE REACTION
35626-30020

VG4#

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

VG4#

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22020

VG4#

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

VG4#

 7
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-50030

VG4#

厚さ=4.6

 1
35676-50050

VG4#

厚さ=4.2

 1
35676-50010

VG4#

厚さ=5.0

 1
35676-50040

VG4#

厚さ=4.4

 1
35676-50060

VG4#

厚さ=4.0

 1
35676-30030

VG40

厚さ=4.0

 1
35676-50020

VG4#

厚さ=4.8

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30110

VG4#

 7
35677-30130

VG4#

 7
