VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

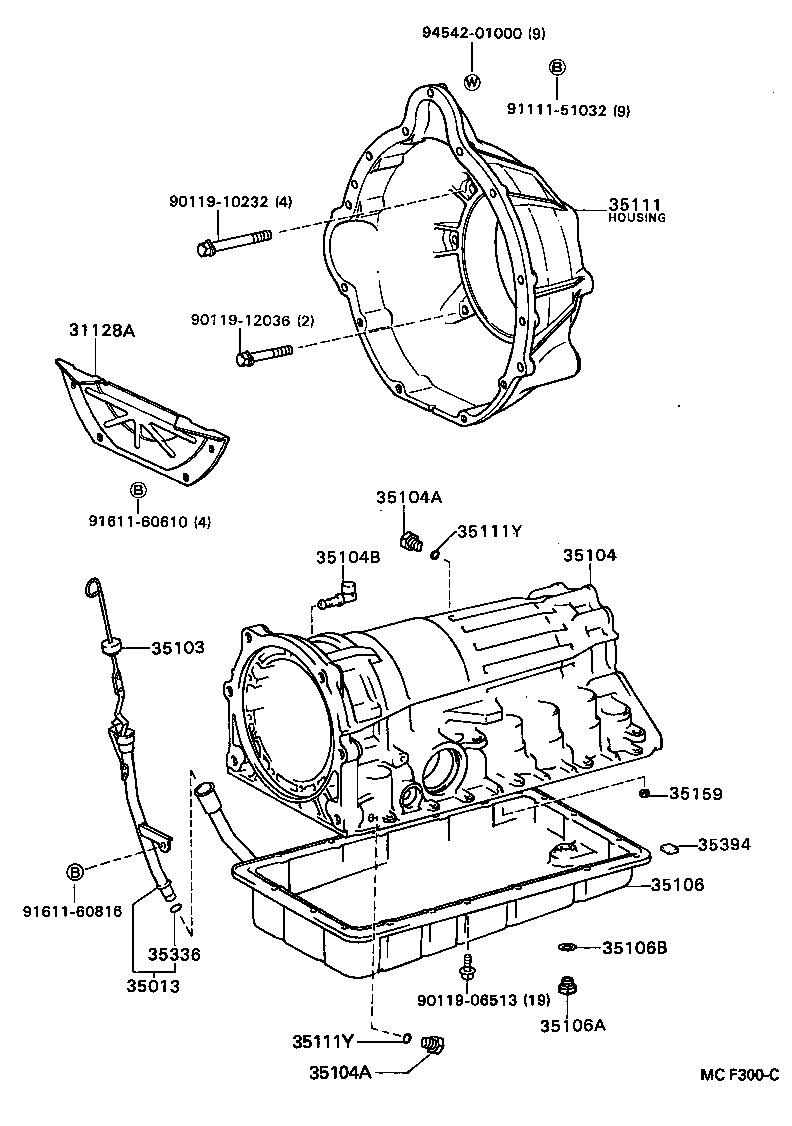

Click highlighted areas on diagram

A340E

diagram 31128A 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35111 35111Y 35111Y 35159 35336 35394 9011906513 9011910232 9011912036 9111151032 9161160610 9161160816 9454201000
Part # Description Qty Price
31128A - COVER, CLUTCH HOUSING UNDER(ATM)
31128-40011

VG4#

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-40050

VG4#

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-40030

VG4#

 1
35103-40040

VG4#

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30133

VG4#

 1
35104-30170

VG4#

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

VG4#

 2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

VG4#

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03108

VG4#

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-40021

VG4#

 1
35106-40030

VG40

 1
35106-40031

VG4#

 1
35106-40020

VG4#

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

VG4#

 1
90341-10012

VG4#

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

VG4#

 1
35178-50010

VG4#

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-40040

VG4#

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

VG4#

 2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

VG4#

 2
35159 - GASKET, BRAKE DRUM
35159-30010

VG4#

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

VG4#

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

VG4#

 3
35394-30011

VG4#

 4
Common parts
90119-06513
90119-10232
90119-12036
91111-51032
91611-60610
91611-60816
94542-01000
