VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

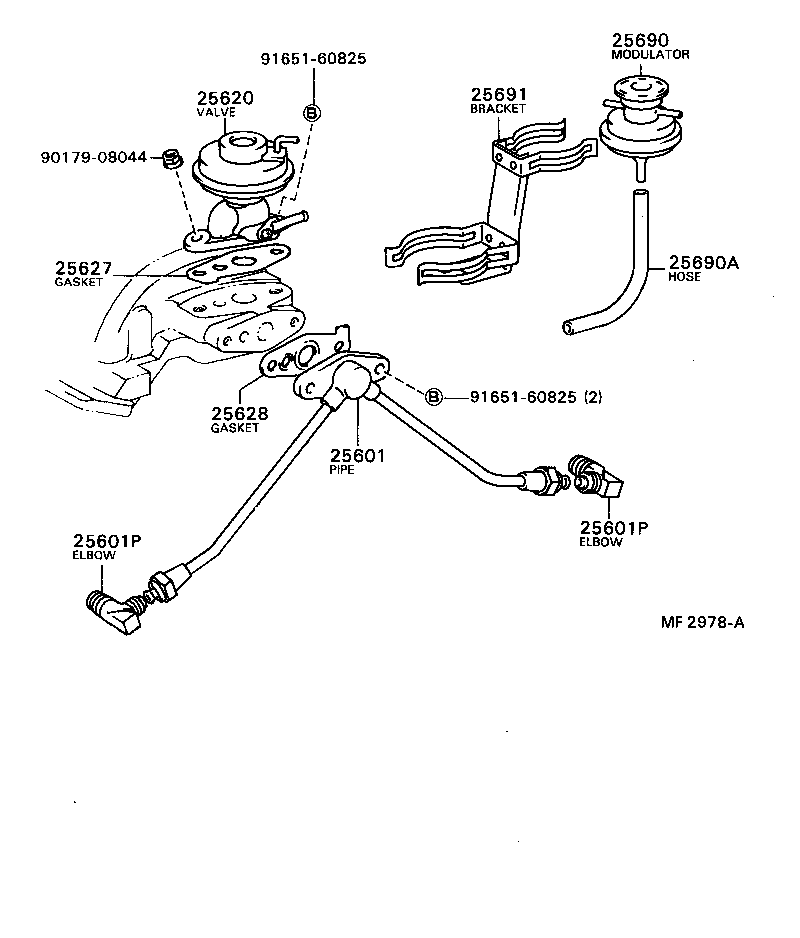

Click highlighted areas on diagram

diagram 25601 25601P 25601P 25620 25627 25628 25690 25690A 25691 9017908044 9165160825 9165160825
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25610-52010

5VEU..VG4#

 1
25601P - ELBOW(FOR EGR PIPE)
90407-20002

5VEU..VG4#

 2
25601P - ELBOW(FOR EGR PIPE)
90407-20002

5VEU..VG4#

 2
25620 - VALVE ASSY, EGR
25620-52041

5VEU..VG4#

 1
25620-52040

5VEU..VG40

 1
25627 - GASKET, EGR VALVE
25627-52010

5VEU..VG40

 1
25627-52011

5VEU..VG4#

 1
25628 - GASKET, EGR INLET
25628-52011

5VEU..VG4#

 1
25628-52010

5VEU..VG40

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-52021

5VEU..VG4#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11014

5VEU..VG4#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-52030

5VEU..VG4#

 1
Common parts
90179-08044
91651-60825
