VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

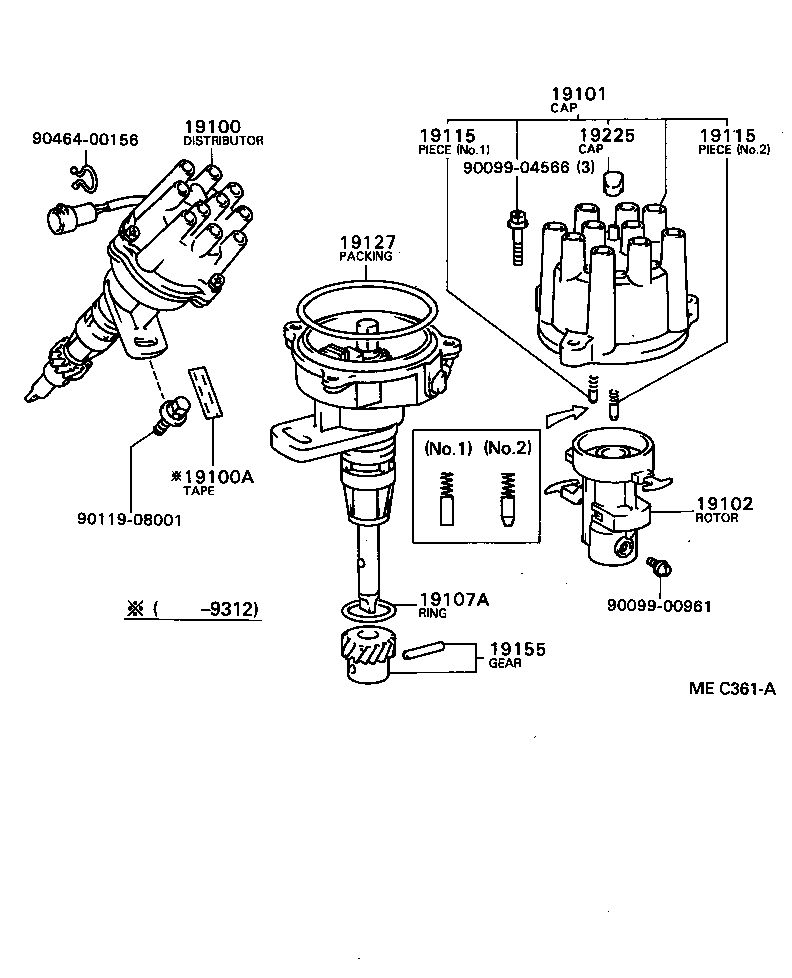

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19127 19155 19225 9009900961 9009904566 9011908001 9046400156
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-52030

5VEU..VG4#

 1
19100A - TAPE, SEALING
90919-24004

5VEU..VG4#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-52030

5VEU..VG4#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-52030

5VEU..VG4#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14112

5VEU..VG4#

 1
90099-14017

5VEU..VG4#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

5VEU..VG4#

NO.2

 1
19115-50010

5VEU..VG4#

NO.1

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

5VEU..VG4#

NO.2

 1
19115-50010

5VEU..VG4#

NO.1

 1
19127 - PACKING, DUST PROOF
19127-45190

5VEU..VG4#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-51010

5VEU..VG4#

 1
19225 - CAP, RUBBER
19225-41140

5VEU..VG4#

 1
Common parts
90099-00961
90099-04566
90119-08001
90464-00156
