VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

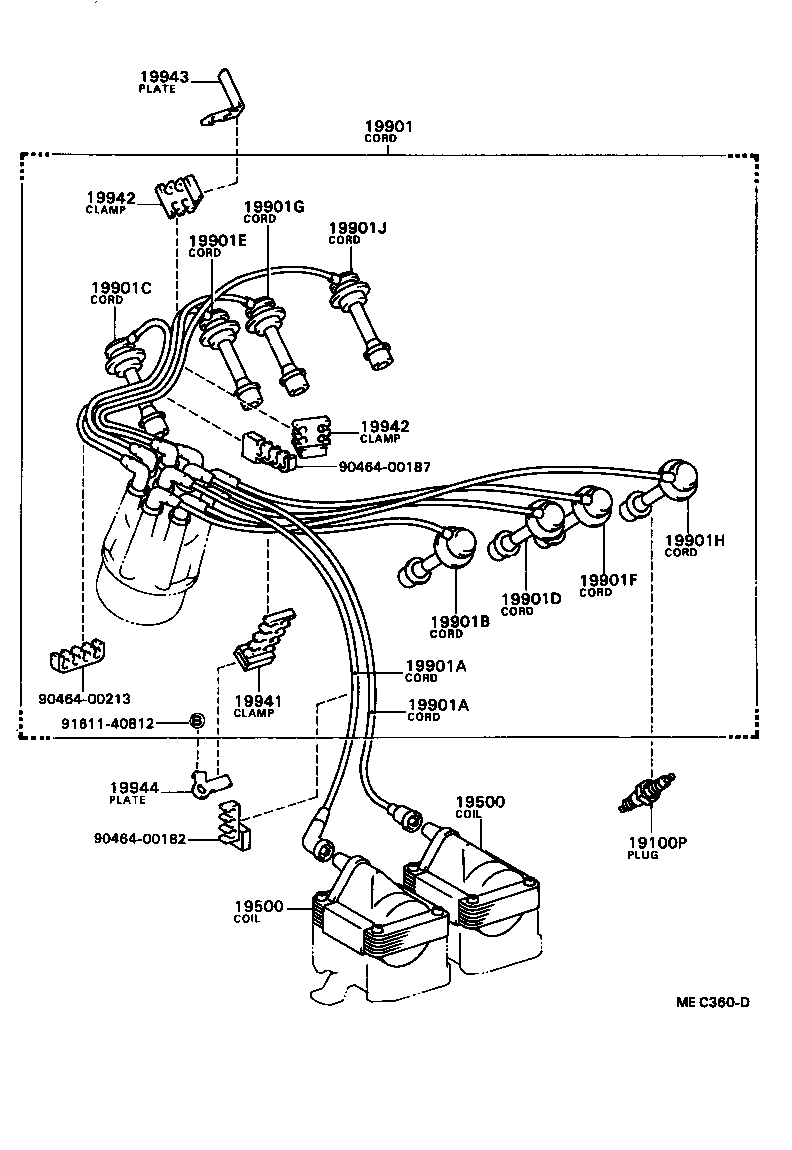

Click highlighted areas on diagram

diagram 19100P 19500 19500 19901 19901A 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19901H 19901J 19941 19942 19942 19943 19944 9046400182 9046400187 9046400213 9161140812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01116

5VEU..VG4#

BPR5EP11

 8
90919-01115

5VEU..VG4#

P16R

 8
19500 - COIL ASSY, IGNITION
90919-02106

5VEU..VG4#

 2
19500 - COIL ASSY, IGNITION
90919-02106

5VEU..VG4#

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21314

5VEU..VG4#

 1
90919-21571

5VEU..VG4#

 1
19901A - CORD, COIL RESISTIVE
90919-13195

5VEU..VG4#

ﾌﾛﾝﾄ

 1
90919-13196

5VEU..VG4#

ﾘﾔ

 1
19901A - CORD, COIL RESISTIVE
90919-13195

5VEU..VG4#

ﾌﾛﾝﾄ

 1
90919-13196

5VEU..VG4#

ﾘﾔ

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12443

5VEU..VG4#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12447

5VEU..VG4#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12444

5VEU..VG4#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12448

5VEU..VG4#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12445

5VEU..VG4#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12449

5VEU..VG4#

 1
19901H - CORD, SPARK PLUG RESISTIVE, NO.7
90919-12446

5VEU..VG4#

 1
19901J - CORD, SPARK PLUG RESISTIVE, NO.8
90919-12450

5VEU..VG4#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00012

5VEU..VG4#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00068

5VEU..VG4#

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00068

5VEU..VG4#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-52020

5VEU..VG4#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-52020

5VEU..VG4#

 1
Common parts
90464-00182
90464-00187
90464-00213
91611-40812
