VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

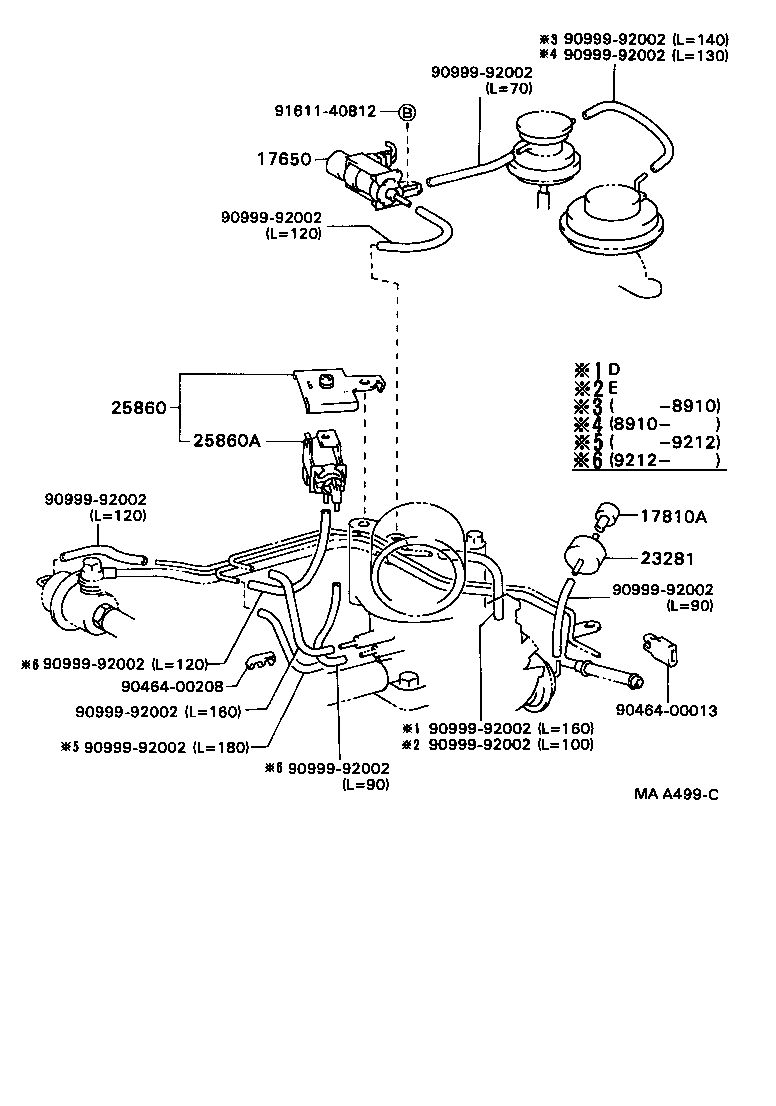

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8709- )

Click highlighted areas on diagram

diagram 17650 17810A 23281 25860 25860A 9046400013 9046400208 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161140812
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-40010

5VEU..VG4#

 1
17810A - FILTER ASSY, AIR
90925-06006

5VEU..VG4#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

5VEU..VG4#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-52010

5VEU..VG4#

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12140

5VEU..VG4#

 1
Common parts
90464-00013
90464-00208
90999-92002
91611-40812
