VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

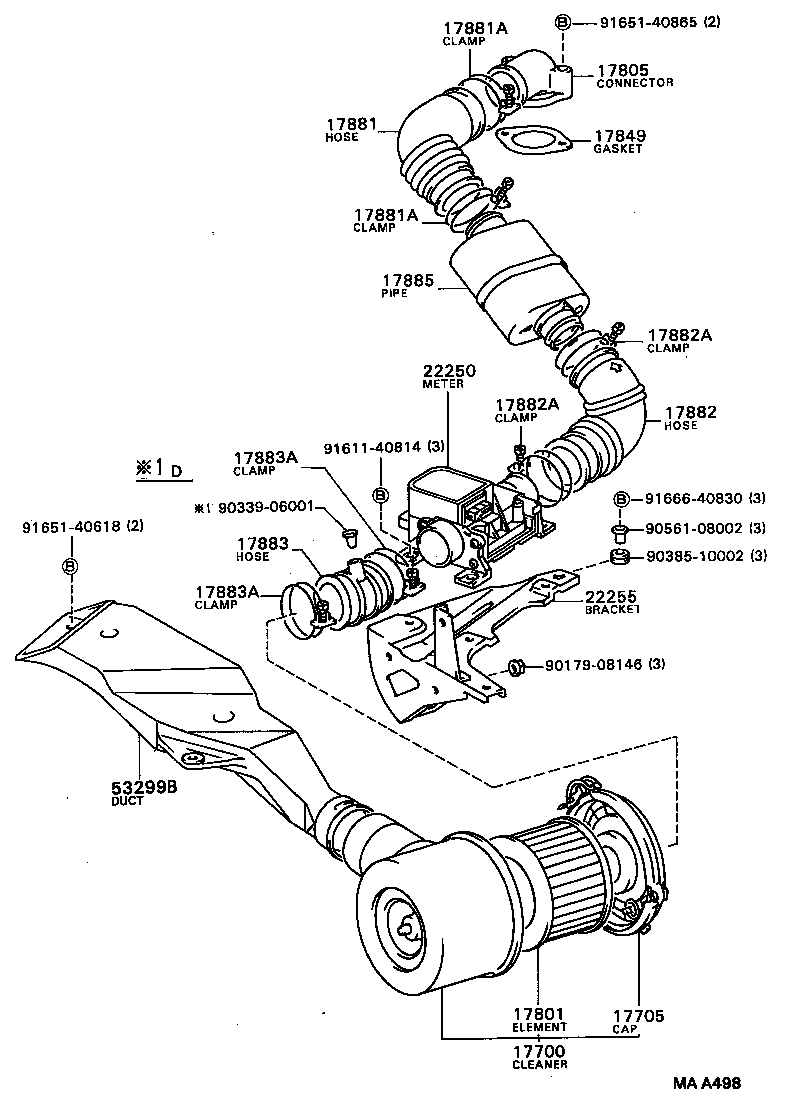

Click highlighted areas on diagram

diagram 17700 17705 17801 17805 17849 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 17885 22250 22255 53299B 9017908146 9033906001 9038510002 9056108002 9161140814 9165140618 9165140865 9166640830
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-52040

5VEU..VG4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-41140

5VEU..VG4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

5VEU..VG4#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-52021

5VEU..VG4#

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-52020

5VEU..VG40

 1
17849-52021

5VEU..VG4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-52020

5VEU..VG40

 1
17881-52021

5VEU..VG4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

5VEU..VG4#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

5VEU..VG4#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-52030

5VEU..VG4#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

5VEU..VG4#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

5VEU..VG4#

 2
17883 - HOSE, AIR CLEANER, NO.3
17883-52010

5VEU..VG4#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800

5VEU..VG4#

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800

5VEU..VG4#

 2
17885 - PIPE, AIR CLEANER
17885-52010

5VEU..VG4#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-52020

5VEU..VG4#

 1
22255 - BRACKET, AIR FLOW METER
22209-52010

5VEU..VG4#

 1
53299B - DUCT, COOL AIR INTAKE
53299-40010

VG4#

 1
53299-91401

VG4#

 1
Common parts
90179-08146
90339-06001
90385-10002
90561-08002
91611-40814
91651-40618
91651-40865
91666-40830
