VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

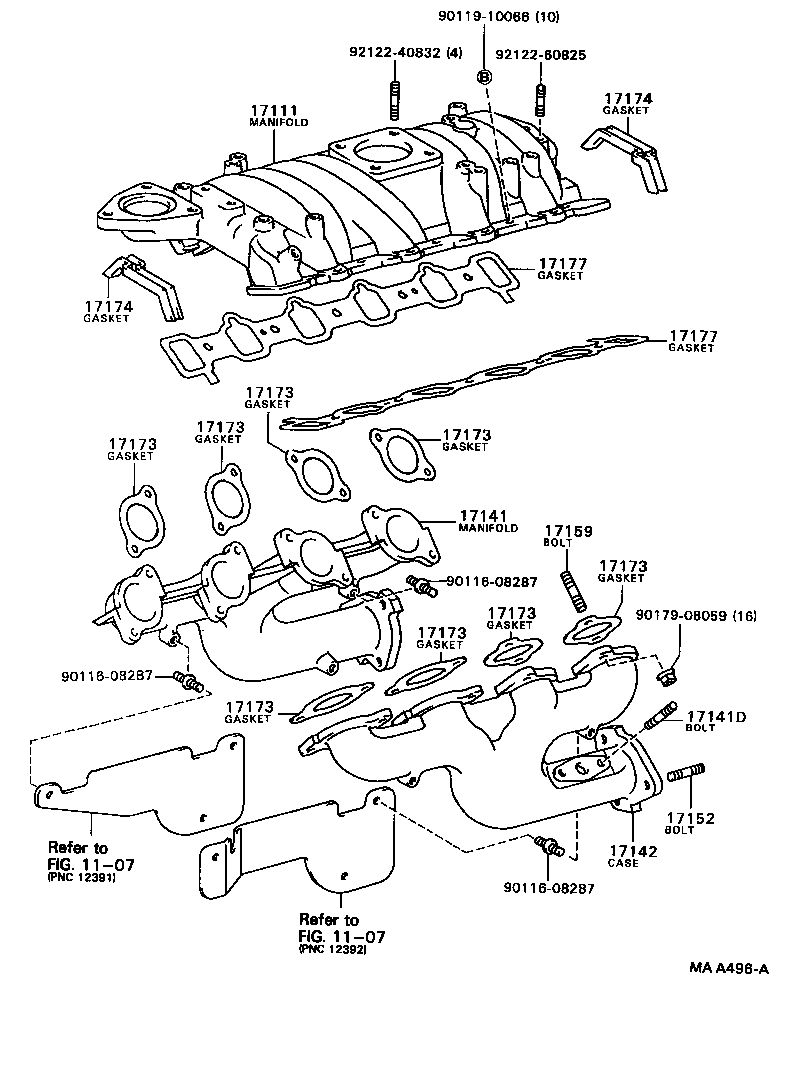

Click highlighted areas on diagram

diagram 1107 1107 17111 17141 17141D 17142 17152 17159 17173 17173 17173 17173 17173 17173 17173 17173 17174 17174 17177 17177 9011608287 9011608287 9011608287 9011910066 9017908059 9212240832 9212260825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-52050

5VEU..VG4#

 1
17141 - MANIFOLD, EXHAUST
17141-52060

5VEU..VG4#

 1
17141-52070

5VEU..VG4#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

5VEU..VG4#

 4
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-52050

5VEU..VG4#

 1
17142-52040

5VEU..VG4#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

5VEU..VG4#

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08077

5VEU..VG4#

 16
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

5VEU..VG4#

 8
17174 - GASKET, INTAKE MANIFOLD TO BLOCK
17174-51010

5VEU..VG4#

 2
17174 - GASKET, INTAKE MANIFOLD TO BLOCK
17174-51010

5VEU..VG4#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-52020

5VEU..VG40

 2
17177-52021

5VEU..VG4#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-52020

5VEU..VG40

 2
17177-52021

5VEU..VG4#

 2
Common parts
90116-08287
90119-10066
90179-08059
92122-40832
92122-60825
Linked diagrams
1107
