VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

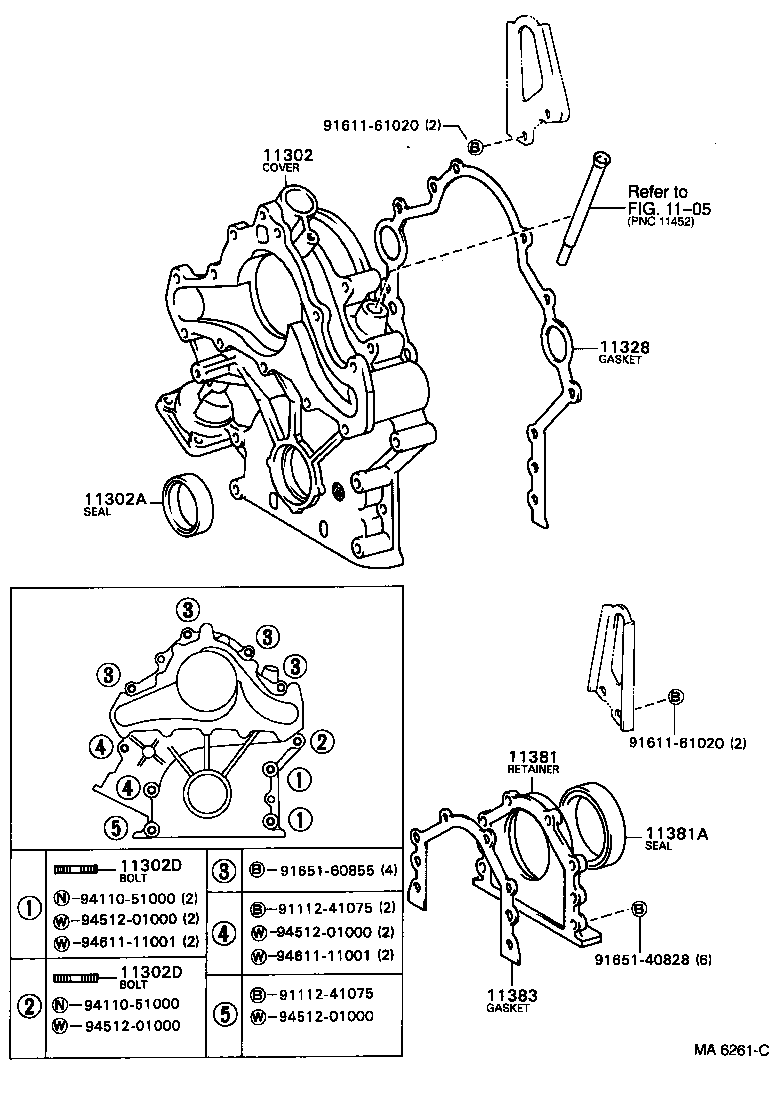

Click highlighted areas on diagram

diagram 1105 11302 11302A 11302D 11302D 11328 11381 11381A 11383 9111241075 9111241075 9161161020 9161161020 9165140828 9165160855 9411051000 9411051000 9451201000 9451201000 9451201000 9451201000 9461111001 9461111001
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-52020

5VEU..VG4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45011

5VEU..VG4#

 1
90311-45002

5VEU..VG4#

 1
90311-45014

5VEU..VG4#

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-10072

5VEU..VG4#

 3
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-10072

5VEU..VG4#

 3
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-51012

5VEU..VG4#

 1
11328-51011

5VEU..VG40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-51010

5VEU..VG4#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85001

5VEU..VG4#

 1
90311-85006

5VEU..VG4#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-51010

5VEU..VG4#

 1
Common parts
91112-41075
91611-61020
91651-40828
91651-60855
94110-51000
94512-01000
94611-11001
Linked diagrams
1105
