VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

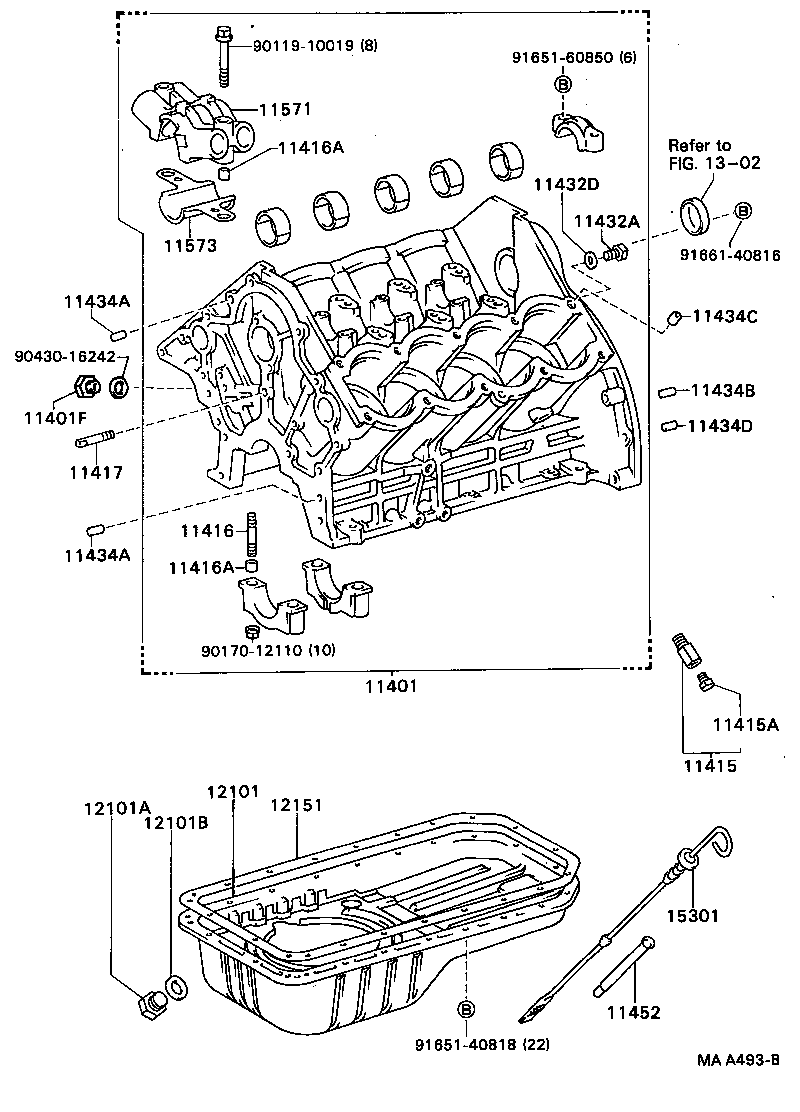

Click highlighted areas on diagram

diagram 11401 11401F 11415 11415A 11416 11416A 11416A 11417 11432A 11432D 11434A 11434A 11434B 11434C 11434D 11452 11571 11573 12101 12101A 12101B 12151 1302 15301 9011910019 9017012110 9043016242 9165140818 9165160850 9166140816
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-52020

5VEU..VG4#

 1
11401F - UNION(FOR OIL PRESSURE SWITCH)
90404-16205

5VEU..VG4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96432-53828

5VEU..VG4#

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

5VEU..VG4#

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90116-12138

5VEU..VG4#

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-16014

5VEU..VG4#

 10
90253-13008

5VEU..VG4#

L=13,OD=12.5

 8
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-16014

5VEU..VG4#

 10
90253-13008

5VEU..VG4#

L=13,OD=12.5

 8
11417 - NOZZLE, OIL
90915-01010

5VEU..VG4#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14032

5VEU..VG4#

 1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90430-14235

5VEU..VG4#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10113

5VEU..VG40

長さ=22,外径=10

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10113

5VEU..VG40

長さ=22,外径=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

5VEU..VG40

長さ=22,外径=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-16014

5VEU..VG4#

長さ=10,外径=15.5

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10113

5VEU..VG40

長さ=22,外径=10

 2
90250-10232

5VEU..VG4#

長さ=15,外径=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-41010

5VEU..VG4#

 1
11571 - CASE, VALVE LIFTER
11571-51011

5VEU..VG4#

 4
11573 - PLATE, OIL REFLECTOR
11573-51010

5VEU..VG4#

 4
12101 - PAN SUB-ASSY, OIL
12101-52021

5VEU..VG4#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

5VEU..VG4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12028

5VEU..VG4#

 1
90430-12019

5VEU..VG4#

 1
90430-12011

5VEU..VG40

 1
12151 - GASKET, OIL PAN
12151-51010

5VEU..VG4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-52010

5VEU..VG40

 1
15301-52011

5VEU..VG4#

 1
Common parts
90119-10019
90170-12110
90430-16242
91651-40818
91651-60850
91661-40816
Linked diagrams
1302
