VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

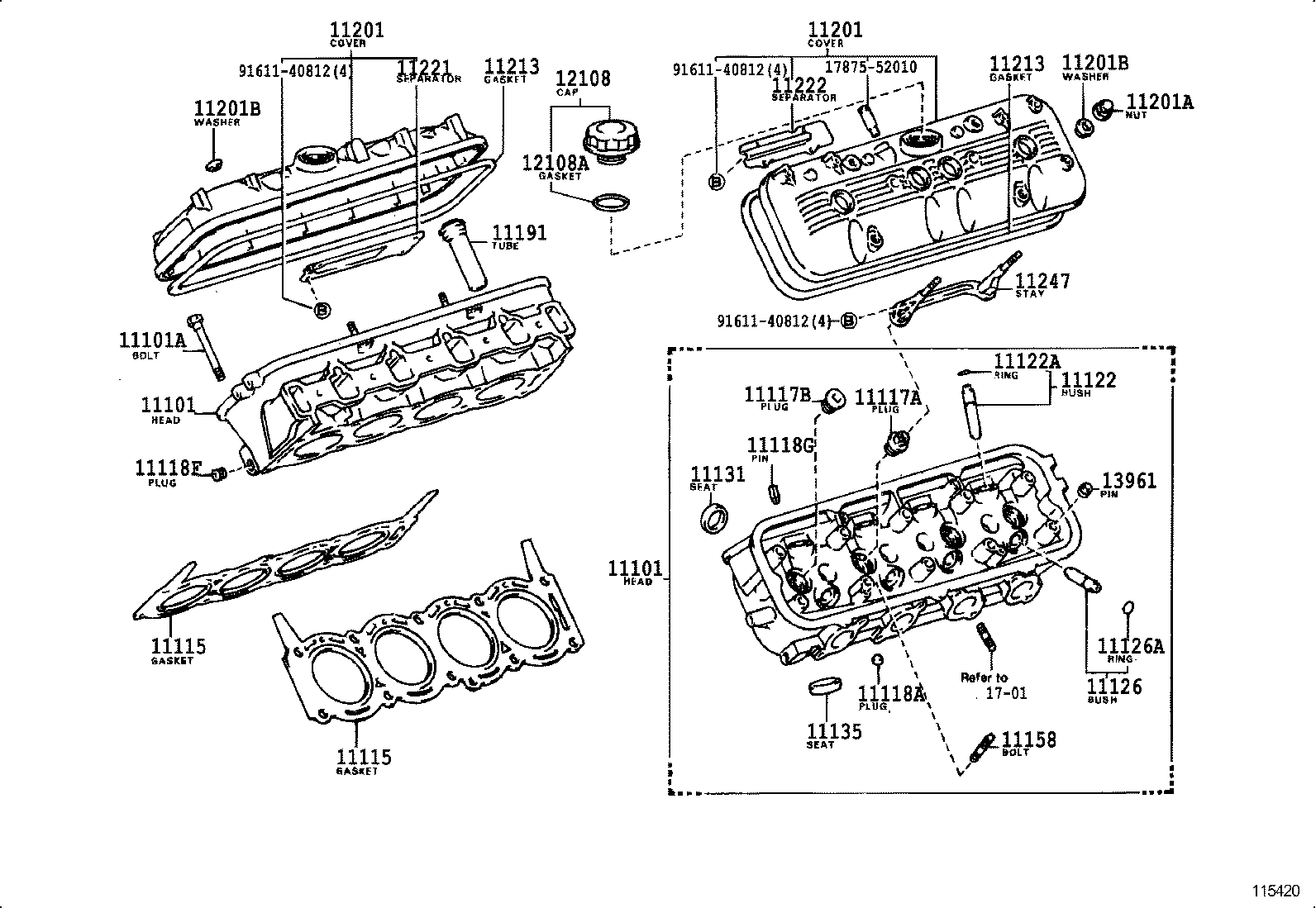

Click highlighted areas on diagram

diagram 11101 11101 11101A 11115 11115 11117A 11117B 11118A 11118F 11118G 11122 11122A 11126 11126A 11131 11135 11158 11191 11201 11201 11201A 11201B 11201B 11213 11213 11221 11222 11247 12108 12108A 13961 1701 1787552010 9161140812 9161140812 9161140812
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59086

5VEU..VG4#

 2
11101 - HEAD SUB-ASSY, CYLINDER
11101-59086

5VEU..VG4#

 2
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02035

5VEU..VG4#

 20
11115 - GASKET, CYLINDER HEAD
11115-52020

5VEU..VG4#

右側

 1
11116-52021

5VEU..VG4#

左側

 1
11115-52021

5VEU..VG4#

右側

 1
11116-52020

5VEU..VG4#

左側

 1
11115 - GASKET, CYLINDER HEAD
11115-52020

5VEU..VG4#

右側

 1
11116-52021

5VEU..VG4#

左側

 1
11115-52021

5VEU..VG4#

右側

 1
11116-52020

5VEU..VG4#

左側

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-24041

5VEU..VG4#

 4
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-24033

5VEU..VG4#

 4
11118A - PLUG, STRAIGHT, NO.1
90334-10002

5VEU..VG4#

 6
11118F - PLUG, TAPER, NO.1
90344-54012

5VEU..VG4#

 2
11118G - PIN, SLOTTED SPRING, NO.1
90254-07015

5VEU..VG4#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-51021

5VEU..VG4#

STD

 16
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5VEU..VG4#

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-51021

5VEU..VG4#

STD

 16
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5VEU..VG4#

 8
11131 - SEAT, INTAKE VALVE
11131-51011

5VEU..VG4#

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-51012

5VEU..VG4#

STD

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08087

5VEU..VG4#

長さ=81

 8
11191 - TUBE, SPARK PLUG
11191-52010

5VEU..VG4#

 8
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-52012

5VEU..VG4#

左側

 1
11201-52023

5VEU..VG4#

右側

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-52012

5VEU..VG4#

左側

 1
11201-52023

5VEU..VG4#

右側

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

5VEU..VG4#

 12
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

5VEU..VG4#

 12
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

5VEU..VG4#

 12
11213 - GASKET, CYLINDER HEAD COVER
11213-51011

5VEU..VG4#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-51011

5VEU..VG4#

 2
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-52011

5VEU..VG4#

 1
11222 - SEPARATOR, CYLINDER HEAD COVER, NO.2
11222-52011

5VEU..VG4#

 1
11247 - STAY, CYLINDER HEAD COVER
11247-52010

5VEU..VG4#

 2
12108 - CAP SUB-ASSY, OIL FILLER
12108-49015

5VEU..VG4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90301-44049

5VEU..VG4#

 1
13961 - PIN, ROCKER SUPPORT
13961-51010

5VEU..VG4#

 4
Common parts
17875-52010
91611-40812
Linked diagrams
1701
