VG40-GENQE (1982)

Toyota Century

Production Oct 1982 - Sep 1987
Engine 5VEU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

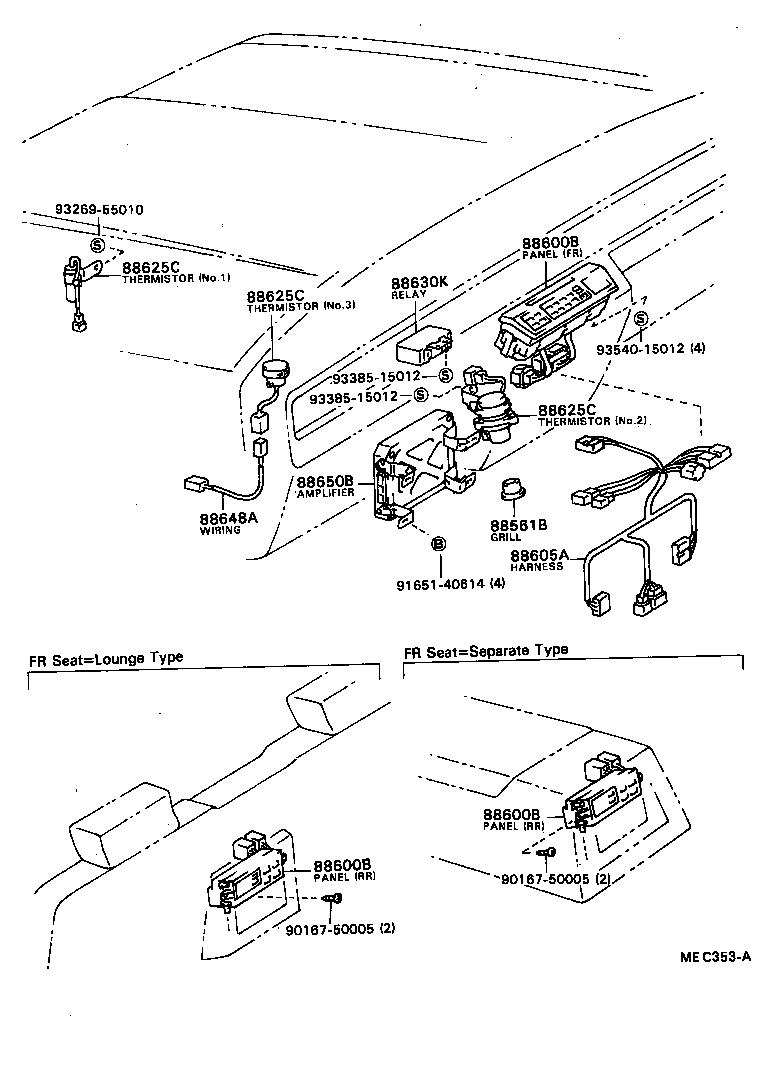

ILLUST NO. 1 OF 2(8210- )

Click highlighted areas on diagram

diagram 88561B 88600B 88600B 88600B 88605A 88625C 88625C 88625C 88630K 88648A 88650B 9016750005 9016750005 9165140614 9326955010 9338515012 9338515012 9354015012
Part # Description Qty Price
88561B - GRILLE, COOLER AIR INLET
88561-4001003

VG40

GRAY,GRAY,TRIM1#

 1
88561-4001004

VG40

BLUE,BLUE,TRIM8#

 1
88561-4001006

VG40..E

BROWN,BROWN,TRIM4#

 1
88600B - PANEL ASSY, CONTROL
88600-40010

VG40

FR

 1
88600-40020

VG40..E

RR

 1
88600B - PANEL ASSY, CONTROL
88600-40010

VG40

FR

 1
88600-40020

VG40..E

RR

 1
88600B - PANEL ASSY, CONTROL
88600-40010

VG40

FR

 1
88600-40020

VG40..E

RR

 1
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-40080

VG40

 1
88625C - THERMISTOR, COOLER
88625-4010006

VG40..E

NO.3 (SOLAR SENSOR),DARK BROWN,BROWN,TRIM4#

 1
88625-30550

VG40

NO.1 (OUT AIR SENSOR)

 1
88625-4010003

VG40

NO.3 (SOLAR SENSOR),GRAY,GRAY,TRIM1#

 1
88625-4010004

VG40

NO.3 (SOLAR SENSOR),BLUE,BLUE,TRIM8#

 1
88790-40020

VG40

NO.2 (ROOM AIR SENSOR)

 1
88625C - THERMISTOR, COOLER
88625-4010006

VG40..E

NO.3 (SOLAR SENSOR),DARK BROWN,BROWN,TRIM4#

 1
88625-30550

VG40

NO.1 (OUT AIR SENSOR)

 1
88625-4010003

VG40

NO.3 (SOLAR SENSOR),GRAY,GRAY,TRIM1#

 1
88625-4010004

VG40

NO.3 (SOLAR SENSOR),BLUE,BLUE,TRIM8#

 1
88790-40020

VG40

NO.2 (ROOM AIR SENSOR)

 1
88625C - THERMISTOR, COOLER
88625-4010006

VG40..E

NO.3 (SOLAR SENSOR),DARK BROWN,BROWN,TRIM4#

 1
88625-30550

VG40

NO.1 (OUT AIR SENSOR)

 1
88625-4010003

VG40

NO.3 (SOLAR SENSOR),GRAY,GRAY,TRIM1#

 1
88625-4010004

VG40

NO.3 (SOLAR SENSOR),BLUE,BLUE,TRIM8#

 1
88790-40020

VG40

NO.2 (ROOM AIR SENSOR)

 1
88630K - RELAY ASSY
88630-40120

VG40..E

 1
88648A - WIRING, COOLER
88648-40040

VG40

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-40051

VG40

 1
88650-40050

VG40

 1
Common parts
90167-50005
91651-40614
93269-55010
93385-15012
93540-15012

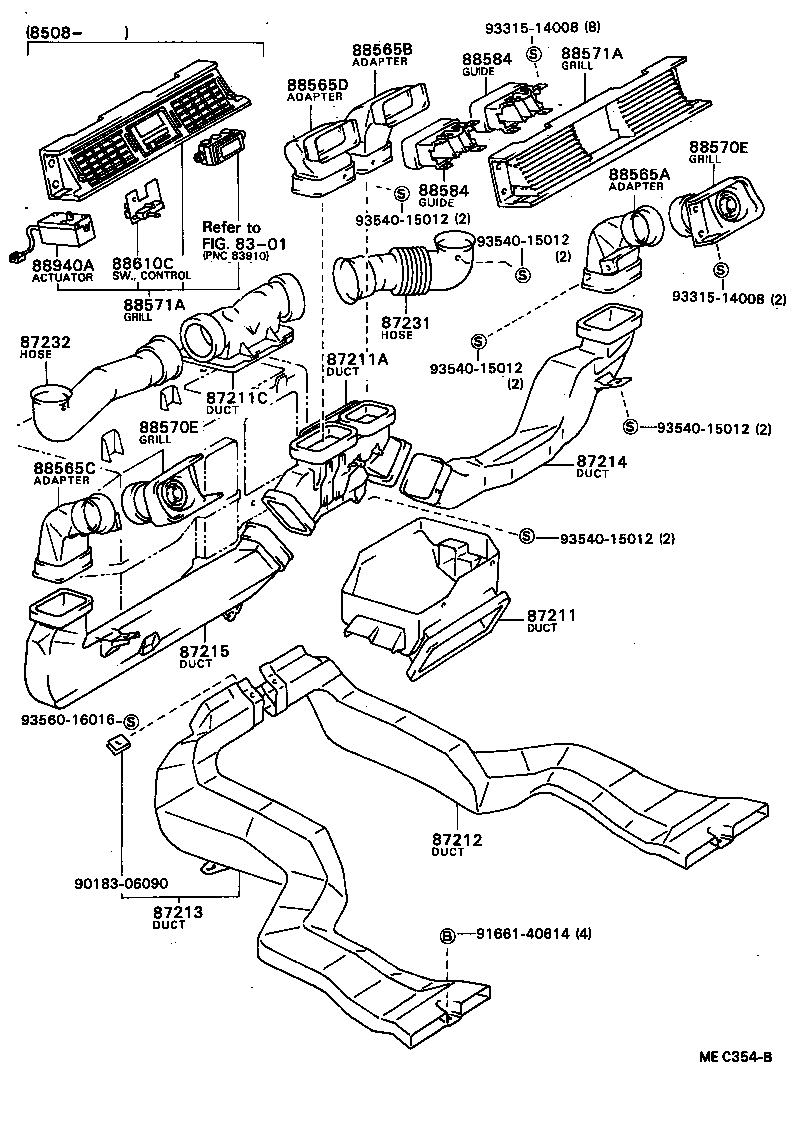

ILLUST NO. 2 OF 2(8210- )

Click highlighted areas on diagram

diagram 8301 87211 87211A 87211C 87212 87213 87214 87215 87231 87232 88565A 88565B 88565C 88565D 88570E 88570E 88571A 88571A 88584 88584 88610C 88940A 9018306090 9166140614 9331514008 9331514008 9354015012 9354015012 9354015012 9354015012 9354015012 9356016016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87211-40070

VG40

 1
87211A - DUCT, AIR, NO.2
87211-40080

VG40

 1
87211-40081

VG40

 1
87211C - DUCT, AIR, NO.4
87211-40060

VG40

 1
87212 - DUCT, AIR, REAR NO.1
87202-91401

VG40

 1
87213 - DUCT, AIR, REAR NO.2
87203-91401

VG40

 1
87214 - DUCT, AIR, SIDE NO.1 RH
88566-40050

VG40

 1
87215 - DUCT, AIR, SIDE NO.1 LH
88576-40060

VG40

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-40060

VG40

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-40060

VG40

 1
88565A - ADAPTER, AIR DUCT, NO.1
88565-40010

VG40

 1
88565B - ADAPTER, AIR DUCT, NO.2
88565-40020

VG40

 1
88565-40021

VG40

 1
88565C - ADAPTER, AIR DUCT, NO.3
88575-40010

VG40

 1
88565D - ADAPTER, AIR DUCT, NO.4
88575-40020

VG40

 1
88575-40021

VG40

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-40070

VG40

RH

 1
88570-40081

VG40

LH

 1
88570-40080

VG40

LH

 1
88570-40071

VG40

RH

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-40070

VG40

RH

 1
88570-40081

VG40

LH

 1
88570-40080

VG40

LH

 1
88570-40071

VG40

RH

 1
88571A - GRILLE, AIR OUTLET
88570-40090

VG40

 1
88571-40030

VG40

 1
88571A - GRILLE, AIR OUTLET
88570-40090

VG40

 1
88571-40030

VG40

 1
88584 - GUIDE, AIR
88584-40010

VG40

 2
88584 - GUIDE, AIR
88584-40010

VG40

 2
88610C - SWITCH ASSY, COOLER CONTROL
88610-40060

VG40

 1
88940A - ACTUATOR ASSY, SWING GRILLE
88940-40010

VG40

 1
Common parts
90183-06090
91661-40614
93315-14008
93540-15012
93560-16016
Linked diagrams
8301
