VG40-GENQE (1982)
Toyota Century
Production
Oct 1982
-
Sep 1987
Engine
5VEU
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

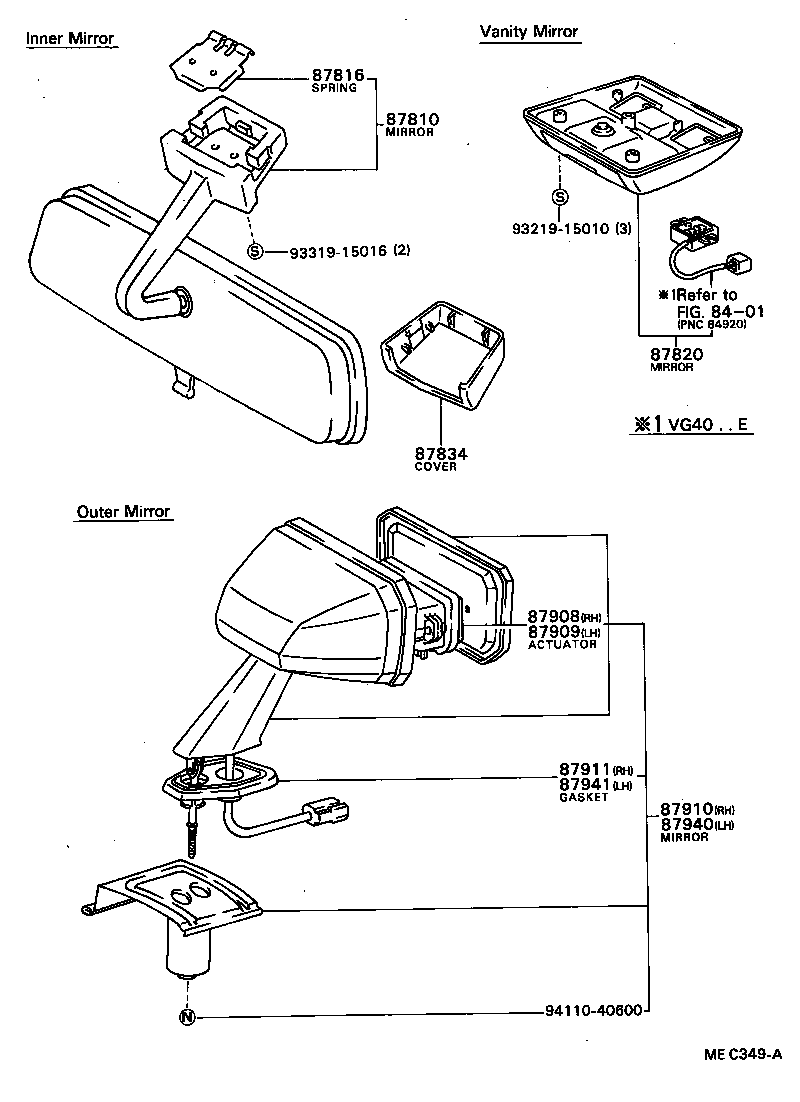

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-3019008 |
VG40 IVORY,IVORY,TRIM4# |
1 | ||
| 87810-3019014 |
VG40 BLUE,BLUE,TRIM8# |
1 | ||
| 87810-3019003 |
VG40 GRAY,GRAY,TRIM1# |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
VG40 |
1 | ||
| 87820 - MIRROR ASSY, VANITY | ||||
| 87820-4001008 |
VG40..E IVORY,IVORY,TRIM4# |
1 | ||
| 87820-4001003 |
VG40..E GRAY,GRAY,TRIM1# |
1 | ||
| 87820-4001004 |
VG40..E BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008023 |
VG40 GRAY,GRAY,TRIM1# |
1 | ||
| 87834-2008008 |
VG40 IVORY,IVORY,TRIM4# |
1 | ||
| 87834-2008004 |
VG40 BLUE,BLUE,TRIM8# |
1 | ||
| 87834-3001014 |
VG40 BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 87834-3001003 |
VG40 GRAY,GRAY,TRIM1# |
1 | ||
| 87834-3001008 |
VG40 IVORY,IVORY,TRIM4# |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-40010 |
VG40 |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87908-40010 |
VG40 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-49035 |
VG40 |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-40011 |
VG40 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-49035 |
VG40 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-40011 |
VG40 |
1 | ||
| Common parts | ||||
| 93219-15010 | ||||
| 93319-15016 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8709-9212)

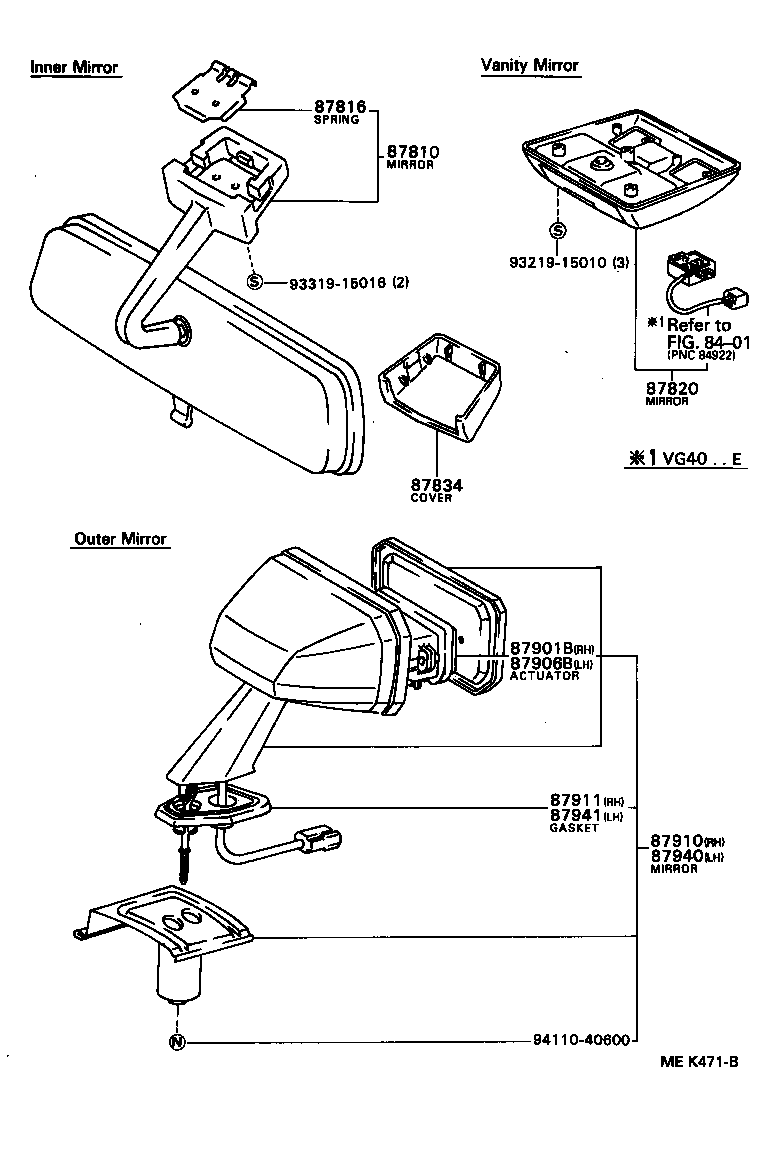

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93219-15010 | ||||
| 93319-15016 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
