Toyota Century VG40 WIRING & CLAMP

VG40-GENQE (1982)

Toyota Century

Production Oct 1982 - Sep 1987

Engine 5VEU

Transmission 3HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

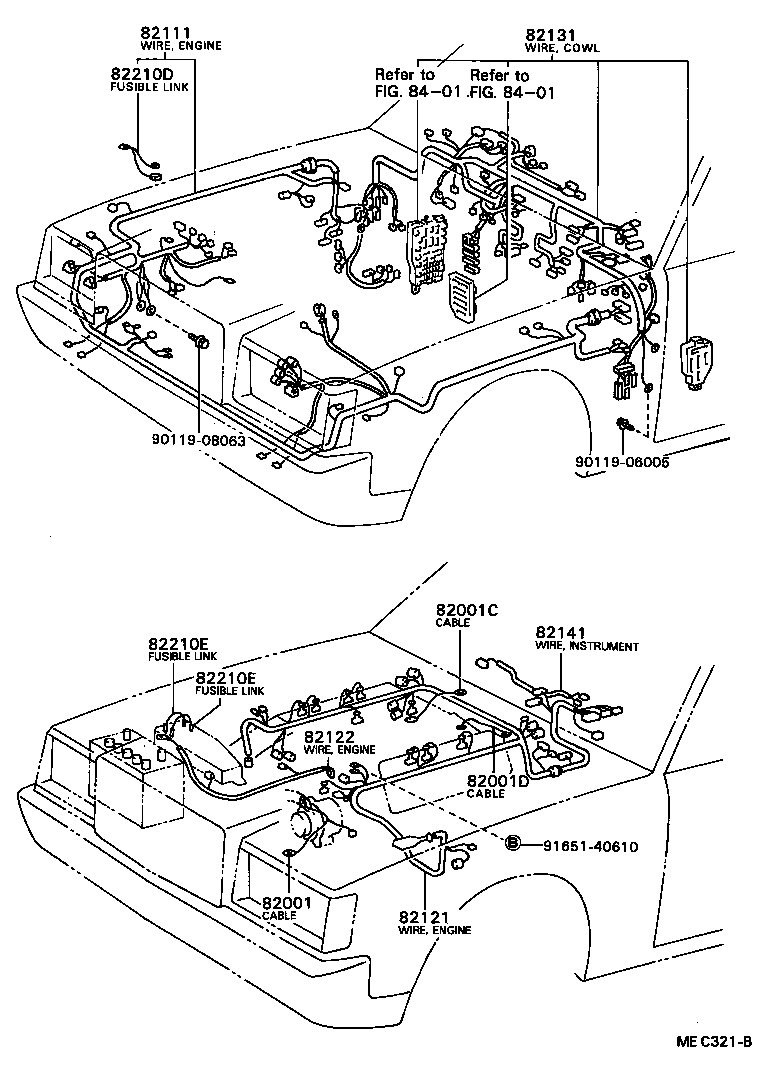

ILLUST NO. 1 OF 4(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07214	VG40 ALTERNATOR--BODY	10/1982 - 09/1987	1
82001C - CABLE, BOND, NO.2
90980-07067	VG40 SOLENOID RESISTOR--DASH PANEL	10/1982 - 09/1987	1
82001D - CABLE, BOND, NO.3
90980-07062	VG40 ENGINE RR HUNGER--DASH PANEL	10/1982 - 09/1987	1
82111 - WIRE, ENGINE ROOM MAIN
82111-40010	VG40	10/1982 - 01/1986	1
82111-40011	VG40	01/1986 - 09/1987	1
82121 - WIRE, ENGINE
82121-40010	VG40	10/1982 - 09/1987	1
82122 - WIRE, ENGINE, NO.2
82122-40010	VG40	10/1982 - 09/1987	1
82131 - WIRE, COWL
82131-40011	VG40	08/1985 - 09/1987	1
82131-40010	VG40	10/1982 - 08/1985	1
82141 - WIRE, INSTRUMENT PANEL
82141-40010	VG40	10/1982 - 09/1987	1
82210D - FUSIBLE LINK
90982-08201	VG40 0.5ｸﾞﾘｰﾝ X2,長さ=120	10/1982 - 09/1987	1
82210E - FUSIBLE LINK
90982-08125	VG40 1.0ｲｴﾛｰ,長さ=110,1.0 YELLOW	10/1982 - 09/1987	1
90982-08124	VG40 0.5ｸﾞﾘｰﾝ,長さ=100,0.5 GREEN	10/1982 - 09/1987	1
82210E - FUSIBLE LINK
90982-08125	VG40 1.0ｲｴﾛｰ,長さ=110,1.0 YELLOW	10/1982 - 09/1987	1
90982-08124	VG40 0.5ｸﾞﾘｰﾝ,長さ=100,0.5 GREEN	10/1982 - 09/1987	1
Common parts
90119-06005
90119-08063
91651-40610
Linked diagrams
8401

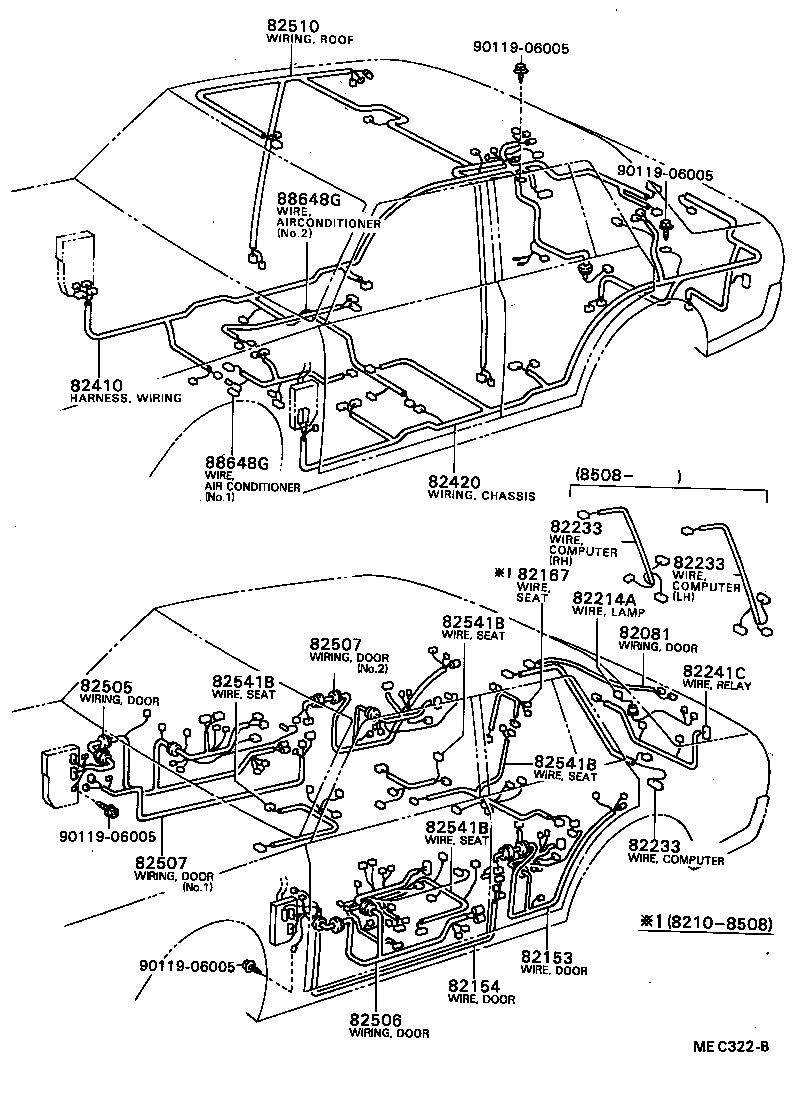

ILLUST NO. 2 OF 4(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82081 - WIRING ASSY, DOOR LOCK
82081-91401	VG40	10/1982 - 09/1987	1
82153 - WIRE, REAR DOOR, NO.1
82154-91403	VG40	11/1982 - 09/1987	1
82154-91401	VG40	10/1982 - 11/1982	1
82154 - WIRE, REAR DOOR, NO.2
82154-91402	VG40	10/1982 - 09/1987	1
82167 - WIRE, SEAT, NO.1
82167-91404	VG40	03/1984 - 08/1985	1
82167-91401	VG40	10/1982 - 03/1984	1
82214A - WIRE, LAMP
82214-91401	VG40	10/1982 - 10/1986	1
82214-91403	VG40	10/1986 - 09/1987	1
82233 - WIRE, COMPUTER
82061-91403	VG40 RH	08/1985 - 09/1987	1
82061-91401	VG40..E	10/1982 - 08/1985	1
82061-91402	VG40..E LH	08/1985 - 09/1987	1
82233 - WIRE, COMPUTER
82061-91403	VG40 RH	08/1985 - 09/1987	1
82061-91401	VG40..E	10/1982 - 08/1985	1
82061-91402	VG40..E LH	08/1985 - 09/1987	1
82233 - WIRE, COMPUTER
82061-91403	VG40 RH	08/1985 - 09/1987	1
82061-91401	VG40..E	10/1982 - 08/1985	1
82061-91402	VG40..E LH	08/1985 - 09/1987	1
82241C - WIRE, RELAY
82241-91401	VG40	10/1982 - 09/1987	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-91433	VG40	10/1982 - 08/1985	1
82161-91402	VG40	08/1985 - 09/1987	1
82420 - WIRING ASSY, CHASSIS
82420-91401	VG40	10/1982 - 08/1985	1
82162-91402	VG40	08/1985 - 09/1987	1
82505 - WIRING SUB-ASSY, FRONT DOOR, RH
82505-91420	VG40	10/1982 - 09/1987	1
82506 - WIRING SUB-ASSY, FRONT DOOR, LH
82506-91417	VG40	10/1982 - 09/1987	1
82507 - WIRING SUB-ASSY, REAR DOOR, RH
82507-91421	VG40 NO.2	10/1982 - 11/1982	1
82507-91423	VG40 NO.2	11/1982 - 09/1987	1
82507-91422	VG40 NO.1	10/1982 - 09/1987	1
82507 - WIRING SUB-ASSY, REAR DOOR, RH
82507-91421	VG40 NO.2	10/1982 - 11/1982	1
82507-91423	VG40 NO.2	11/1982 - 09/1987	1
82507-91422	VG40 NO.1	10/1982 - 09/1987	1
82510 - WIRING ASSY, ROOF
82171-91402	VG40..E	08/1985 - 09/1987	1
82510-91406	VG40..E	10/1982 - 08/1985	1
82541B - WIRE, SEAT ADJUSTER
82541-91403	VG40..E RR SEAT,RH	10/1982 - 08/1985	1
82541-91404	VG40..E RR SEAT,LH	10/1982 - 08/1985	1
82541-91408	VG40..E RR SEAT,RH	08/1985 - 09/1987	1
82541-91402	VG40..E FR SEAT,LH	10/1982 - 09/1987	1
82541-91401	VG40..E FR SEAT,RH	10/1982 - 09/1987	1
82541-91409	VG40..E RR SEAT,LH	08/1985 - 09/1987	1
82541B - WIRE, SEAT ADJUSTER
82541-91403	VG40..E RR SEAT,RH	10/1982 - 08/1985	1
82541-91404	VG40..E RR SEAT,LH	10/1982 - 08/1985	1
82541-91408	VG40..E RR SEAT,RH	08/1985 - 09/1987	1
82541-91402	VG40..E FR SEAT,LH	10/1982 - 09/1987	1
82541-91401	VG40..E FR SEAT,RH	10/1982 - 09/1987	1
82541-91409	VG40..E RR SEAT,LH	08/1985 - 09/1987	1
82541B - WIRE, SEAT ADJUSTER
82541-91403	VG40..E RR SEAT,RH	10/1982 - 08/1985	1
82541-91404	VG40..E RR SEAT,LH	10/1982 - 08/1985	1
82541-91408	VG40..E RR SEAT,RH	08/1985 - 09/1987	1
82541-91402	VG40..E FR SEAT,LH	10/1982 - 09/1987	1
82541-91401	VG40..E FR SEAT,RH	10/1982 - 09/1987	1
82541-91409	VG40..E RR SEAT,LH	08/1985 - 09/1987	1
82541B - WIRE, SEAT ADJUSTER
82541-91403	VG40..E RR SEAT,RH	10/1982 - 08/1985	1
82541-91404	VG40..E RR SEAT,LH	10/1982 - 08/1985	1
82541-91408	VG40..E RR SEAT,RH	08/1985 - 09/1987	1
82541-91402	VG40..E FR SEAT,LH	10/1982 - 09/1987	1
82541-91401	VG40..E FR SEAT,RH	10/1982 - 09/1987	1
82541-91409	VG40..E RR SEAT,LH	08/1985 - 09/1987	1
88648G - WIRE, AIR CONDITIONER
88648-91404	VG40..E NO.2,FR SEAT=LOUNGE	10/1982 - 09/1987	1
88648-91401	VG40 NO.1,FR SEAT=SEPARATE	10/1982 - 09/1987	1
88648-91402	VG40 NO.1,FR SEAT=LOUNGE	10/1982 - 09/1987	1
88648-91403	VG40..E NO.2,FR SEAT=SEPARATE	10/1982 - 09/1987	1
88648G - WIRE, AIR CONDITIONER
88648-91404	VG40..E NO.2,FR SEAT=LOUNGE	10/1982 - 09/1987	1
88648-91401	VG40 NO.1,FR SEAT=SEPARATE	10/1982 - 09/1987	1
88648-91402	VG40 NO.1,FR SEAT=LOUNGE	10/1982 - 09/1987	1
88648-91403	VG40..E NO.2,FR SEAT=SEPARATE	10/1982 - 09/1987	1
Common parts
90119-06005

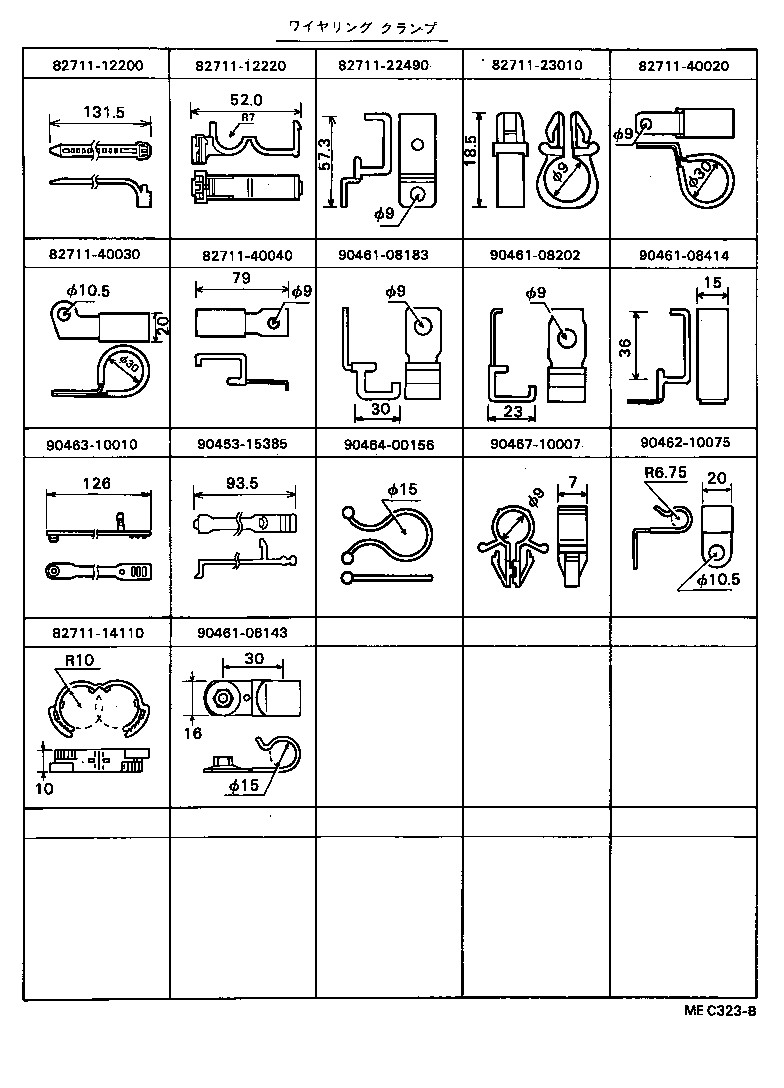

ILLUST NO. 3 OF 4(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12220
82711-14110
82711-22490
82711-23010
82711-40020
82711-40030
82711-40040
90461-06143
90461-08183
90461-08202
90461-08414
90462-10075
90463-10010
90463-15385
90464-00156
90467-10007

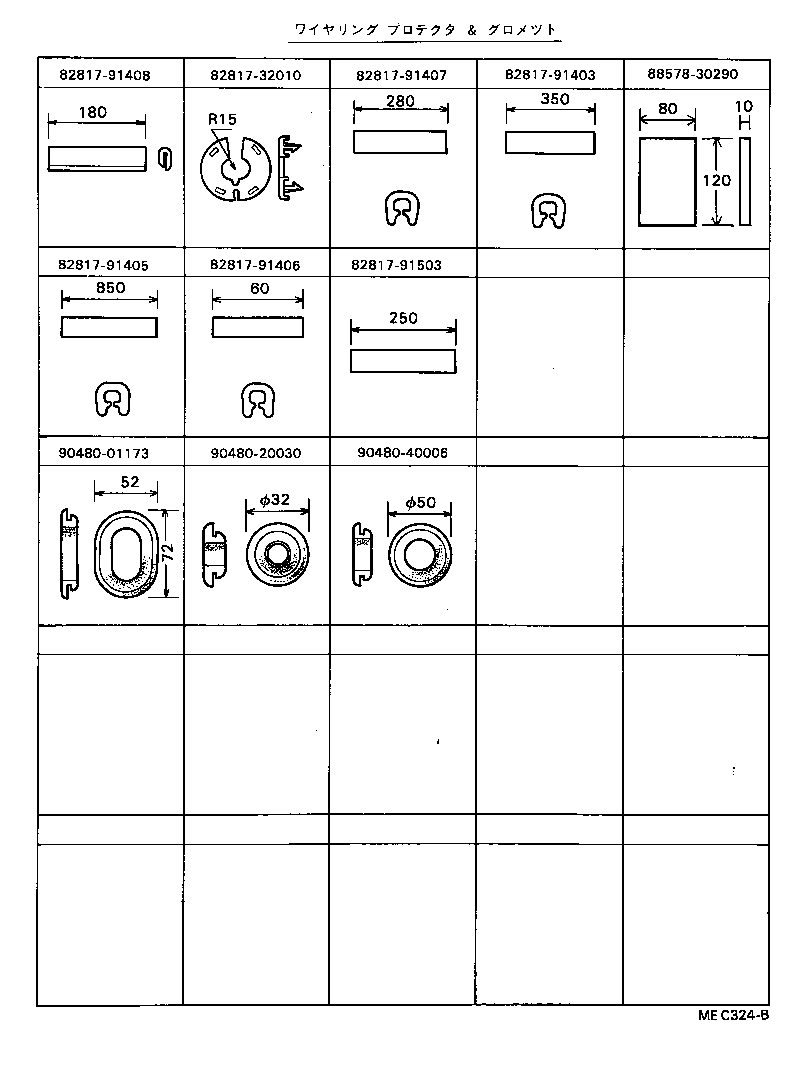

ILLUST NO. 4 OF 4(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-32010
82817-91403
82817-91405
82817-91406
82817-91407
82817-91408
82817-91503
88578-30290
90480-01173
90480-20030
90480-40006
