VG40-GENQE (1982)
Toyota Century
Production
Oct 1982
-
Sep 1987
Engine
5VEU
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

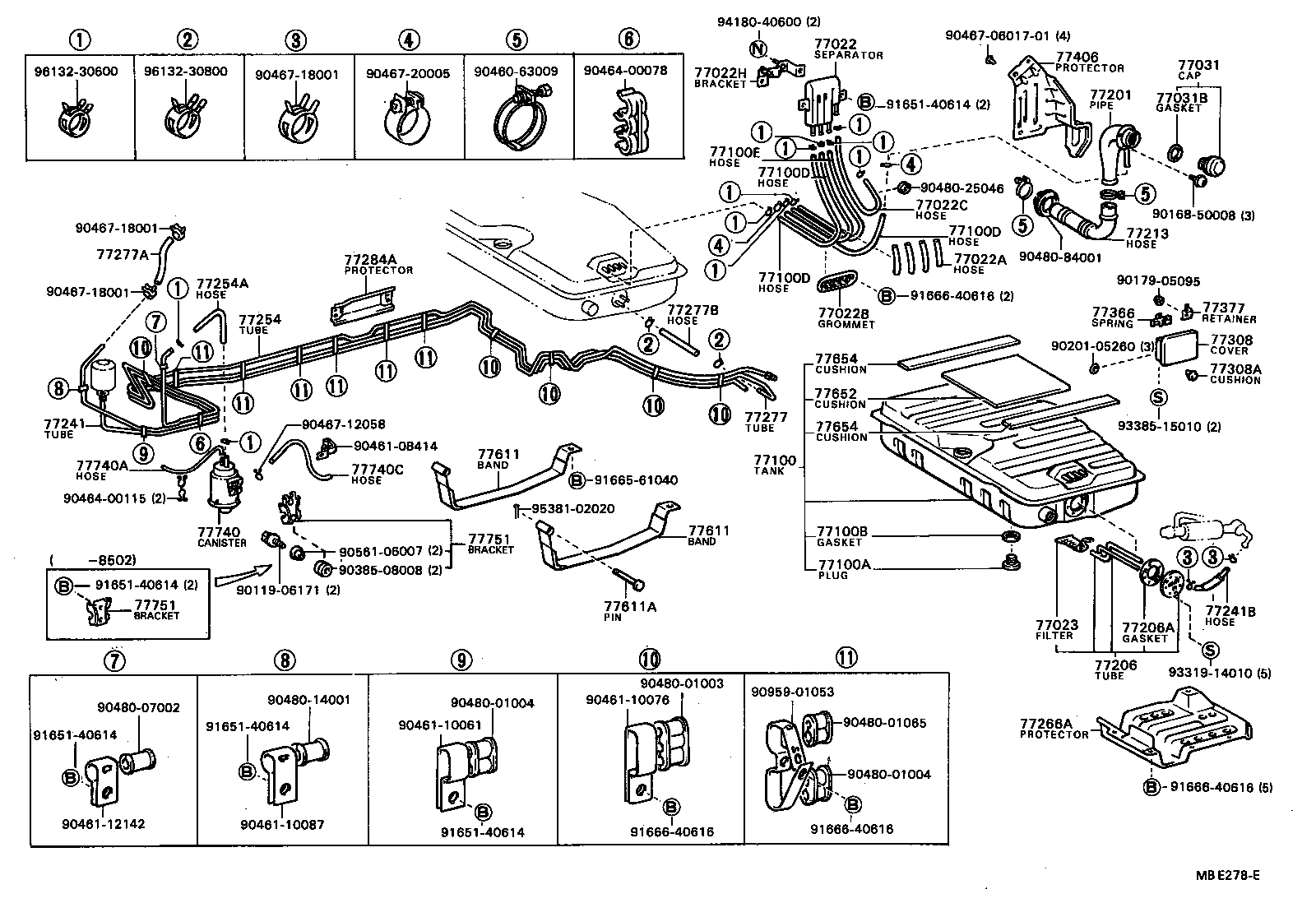

(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
VG40 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90445-20025 |
VG40 長さ=210 |
4 | ||
| 77022B - GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) | ||||
| 77290-91600 |
VG40 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06080 |
VG40 *H,L=700 |
1 | ||
| 95333-06080 |
VG40 *H,L=700 |
1 | ||
| 77022H - BRACKET, FUEL VAPOR LIQUID SEPARATOR, FRONT | ||||
| 61781-91401 |
VG40 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
VG40 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16010 |
VG40 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
VG40 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91495 |
VG40 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
VG40 |
1 | ||
| 90341-20004 |
VG40 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
VG40 |
1 | ||
| 90430-20007 |
VG40 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-12113 |
VG40 長さ=840 |
2 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-12113 |
VG40 長さ=840 |
2 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-12113 |
VG40 長さ=840 |
2 | ||
| 90445-22020 |
VG40 長さ=550 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-12114 |
VG40 長さ=840 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91404 |
VG40 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-91401 |
VG40 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
VG40 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91404 |
VG40 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91408 |
VG40 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77049-91401 |
VG40 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-91403 |
VG40 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77249-91401 |
VG40 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77038-91401 |
VG40 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-91403 |
VG40 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95336-08040 |
VG40 |
1 | ||
| 95335-08032 |
VG40 |
1 | ||
| 95336-08032 |
VG40 *H,L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
VG40 *H,L=150 |
1 | ||
| 95332-08020 |
VG40 *H,L=150,内径=7.6 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-91401 |
VG40 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91401 |
VG40 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06026 |
VG40 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
VG40 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
VG40 |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-91401 |
VG40 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-91403 |
VG40 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-91403 |
VG40 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08118 |
VG40 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-91401 |
VG40 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG40 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91401 |
VG40 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-40030 |
VG40 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-10460 |
VG40 *H,L=540 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12116 |
VG40 長さ=500 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-40010 |
VG40 |
1 | ||
| 77751-14090 |
VG40 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-40010 |
VG40 |
1 | ||
| 77751-14090 |
VG40 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90168-50008 | ||||
| 90179-05095 | ||||
| 90201-05260 | ||||
| 90385-08008 | ||||
| 90460-63009 | ||||
| 90461-08414 | ||||
| 90461-10061 | ||||
| 90461-10076 | ||||
| 90461-10087 | ||||
| 90461-12142 | ||||
| 90464-00078 | ||||
| 90464-00115 | ||||
| 90467-0601701 | ||||
| 90467-12058 | ||||
| 90467-18001 | ||||
| 90467-20005 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01065 | ||||
| 90480-07002 | ||||
| 90480-14001 | ||||
| 90480-25046 | ||||
| 90480-84001 | ||||
| 90561-06007 | ||||
| 90959-01053 | ||||
| 91651-40614 | ||||
| 91665-61040 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 94180-40600 | ||||
| 95381-02020 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

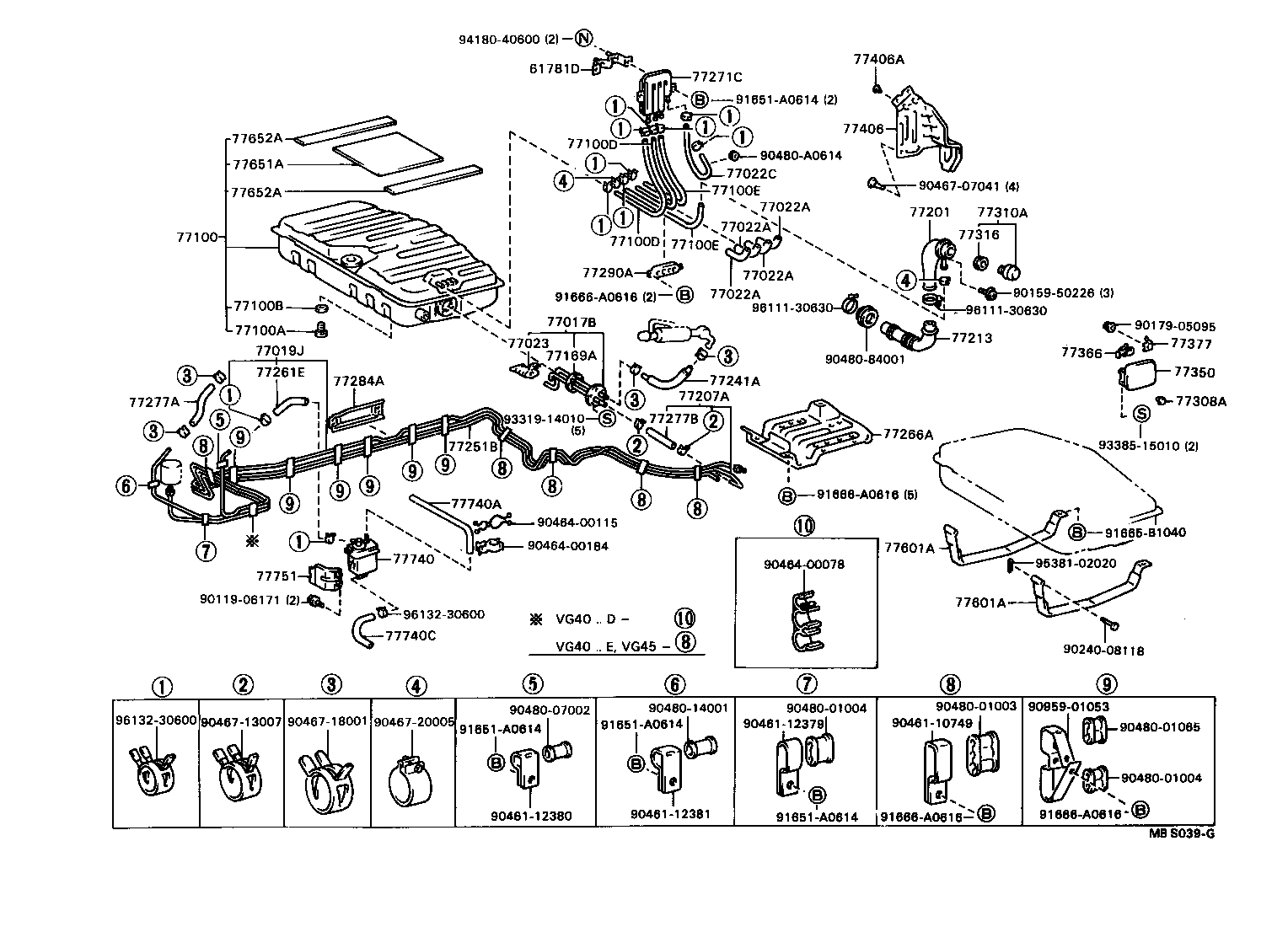

(8709-9212)VG40 ; (9009-9212)VG45
Click highlighted areas on diagram
VG45=ﾘﾑｼﾞﾝL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06171 | ||||
| 90159-50226 | ||||
| 90179-05095 | ||||
| 90240-08118 | ||||
| 90461-10749 | ||||
| 90461-12379 | ||||
| 90461-12380 | ||||
| 90461-12381 | ||||
| 90464-00078 | ||||
| 90464-00115 | ||||
| 90464-00184 | ||||
| 90467-07041 | ||||
| 90467-13007 | ||||
| 90467-18001 | ||||
| 90467-20005 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01065 | ||||
| 90480-07002 | ||||
| 90480-14001 | ||||
| 90480-84001 | ||||
| 90480-A0614 | ||||
| 90959-01053 | ||||
| 91651-A0614 | ||||
| 91665-B1040 | ||||
| 91666-A0616 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 94180-40600 | ||||
| 95381-02020 | ||||
| 96111-30630 | ||||
| 96132-30600 | ||||
