VG40-GENQE (1982)
Toyota Century
Production
Oct 1982
-
Sep 1987
Engine
5VEU
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

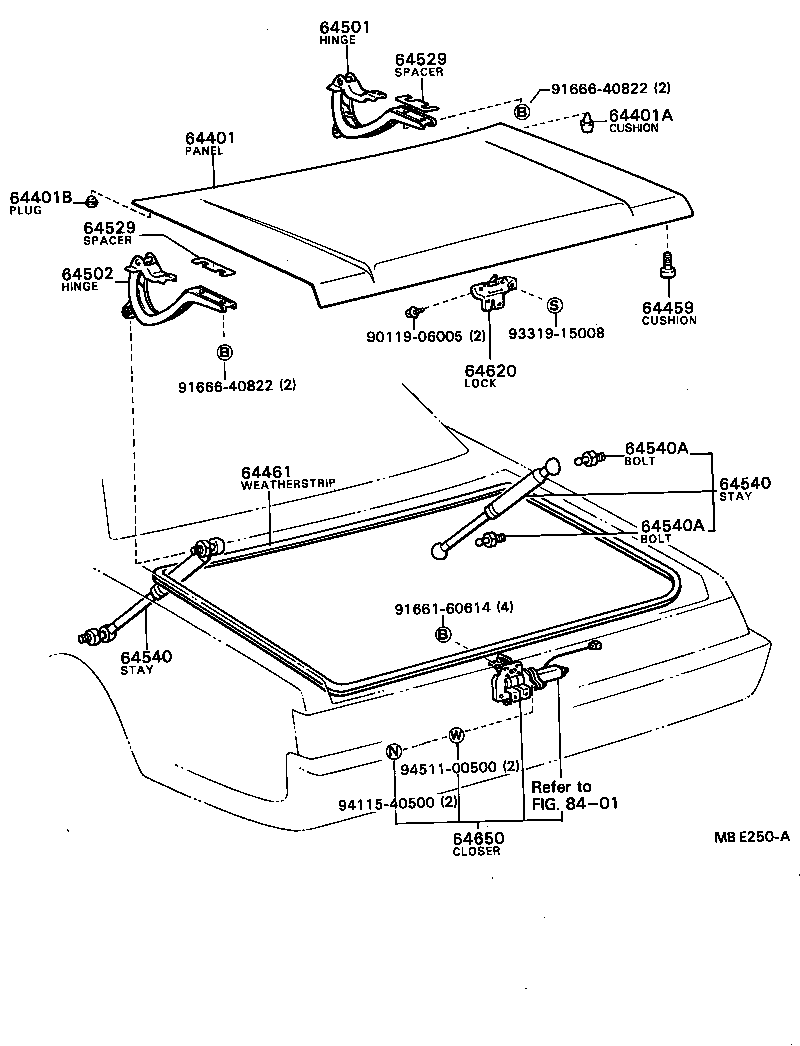

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-91409 |
VG40 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09126 |
VG40 |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01058 |
VG40 |
2 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 64459-91401 |
VG40 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-91403 |
VG40 |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-91402 |
VG40 |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-91402 |
VG40 |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
VG40 |
4 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
VG40 |
4 | ||
| 64540 - STAY ASSY(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 64540-49015 |
VG40 |
2 | ||
| 64540 - STAY ASSY(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 64540-49015 |
VG40 |
2 | ||
| 64540A - BOLT(FOR LUGGAGE COMPARTMENT DOOR STAY) | ||||
| 68961-14010 |
VG40 |
4 | ||
| 68961-12010 |
VG40 |
4 | ||
| 64540A - BOLT(FOR LUGGAGE COMPARTMENT DOOR STAY) | ||||
| 68961-14010 |
VG40 |
4 | ||
| 68961-12010 |
VG40 |
4 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-91401 |
VG40 |
1 | ||
| 64650 - CLOSER ASSY, LUGGAGE DOOR | ||||
| 64650-40020 |
VG40 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91661-60614 | ||||
| 91666-40822 | ||||
| 93319-15008 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
