VG40-GENGE (1982)

Toyota Century

Production Oct 1982 - Sep 1987
Engine 5VEU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

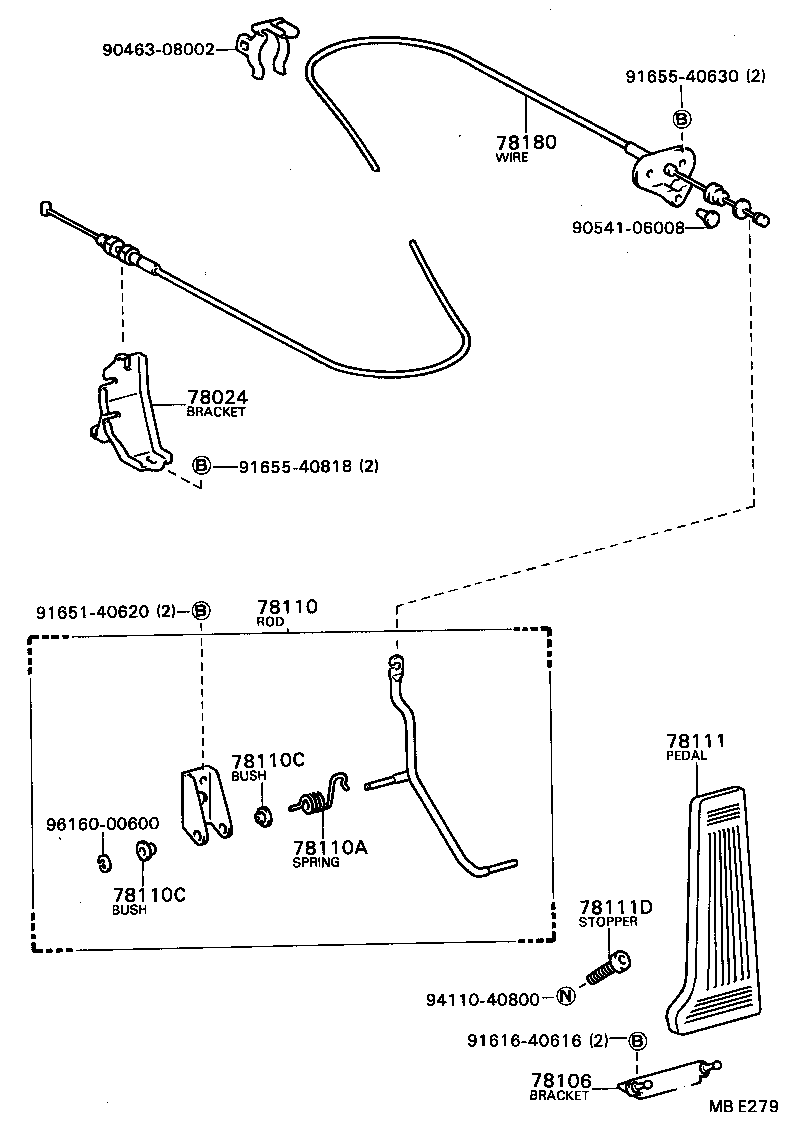

Click highlighted areas on diagram

diagram 78024 78106 78110 78110A 78110C 78110C 78111 78111D 78180 9046308002 9054106008 9161640616 9165140620 9165540630 9165540818 9411040800 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-40010

VG40

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-40020

VG40

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-40010

VG40

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-16056

VG40

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

VG40

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

VG40

 2
78111 - PEDAL, ACCELERATOR
78111-30060

VG40

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-40010

VG40

 1
78180 - WIRE ASSY, ACCELERATOR
78180-40030

VG40

 1
Common parts
90463-08002
90541-06008
91616-40616
91651-40620
91655-40630
91655-40818
94110-40800
96160-00600
