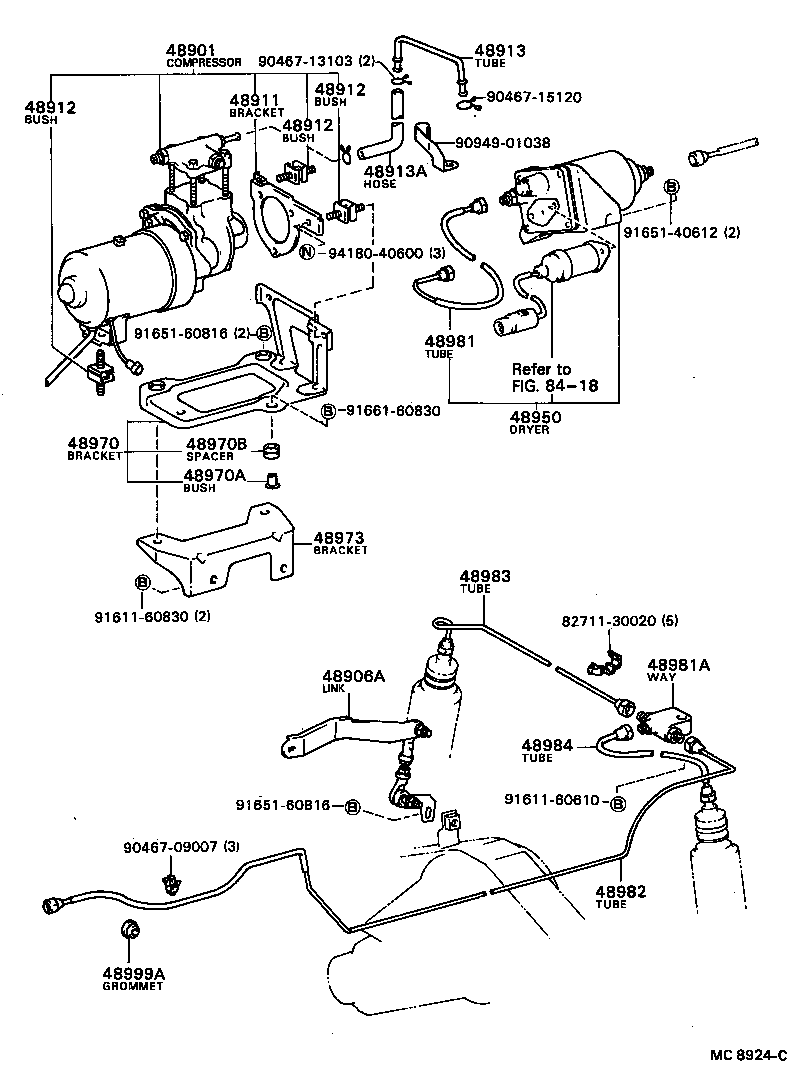

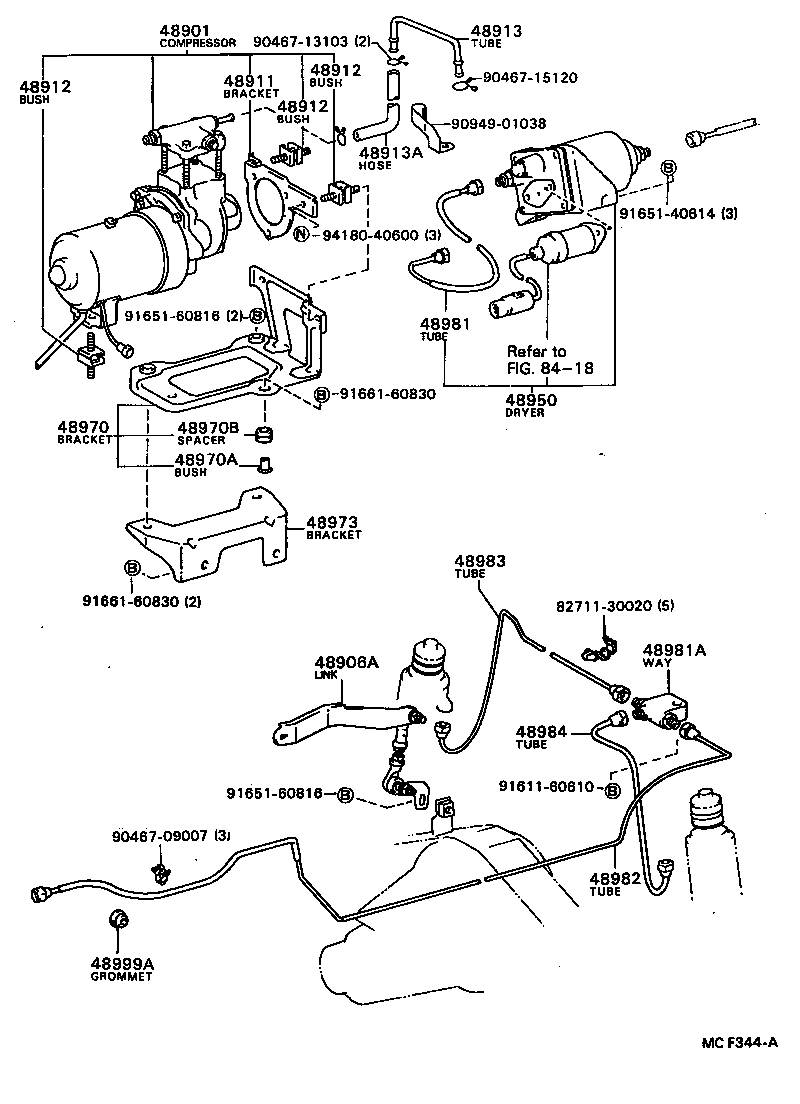

Toyota Century VG40 HEIGHT CONTROL (AUTO-LEVELER)

Part #	Description	Period	Qty
48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL
48901-40050	VG40	10/1982 - 09/1987	1
48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48906-40031	VG40	10/1982 - 09/1987	1
48911 - BRACKET, HEIGHT CONTROL COMPRESSOR
48911-40050	VG40	10/1982 - 09/1987	1
48912 - BUSH, COMPRESSOR
48912-40050	VG40	10/1982 - 09/1987	3
48912 - BUSH, COMPRESSOR
48912-40050	VG40	10/1982 - 09/1987	3
48912 - BUSH, COMPRESSOR
48912-40050	VG40	10/1982 - 09/1987	3
48913 - TUBE, SUCTION
48913-40030	VG40	10/1982 - 09/1987	1
48913A - HOSE(FOR SUCTION TUBE)
90445-14089	VG40	10/1982 - 09/1987	1
48950 - DRYER ASSY, HEIGHT CONTROL
48950-40010	VG40	10/1982 - 09/1987	1
48970 - BRACKET ASSY, HEIGHT CONTROL COMPRESSOR
48970-40010	VG40	10/1982 - 09/1987	1
48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR)
90385-10002	VG40	10/1982 - 09/1987	3
48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET)
90561-08002	VG40	10/1982 - 09/1987	3
48973 - BRACKET, COMPRESSOR SIDE MEMBER
48973-40010	VG40	10/1982 - 09/1987	1
48981 - TUBE, HEIGHT CONTROL, NO.1
48981-40010	VG40	10/1982 - 09/1987	1
48981A - WAY, 3(FOR HEIGHT CONTROL TUBE)
90413-10149	VG40	10/1982 - 09/1987	1
48982 - TUBE, HEIGHT CONTROL, NO.2
48982-40010	VG40	10/1982 - 09/1987	1
48983 - TUBE, HEIGHT CONTROL, NO.3
48983-40010	VG40	10/1982 - 09/1987	1
48984 - TUBE, HEIGHT CONTROL, NO.4
48984-40010	VG40	10/1982 - 09/1987	1
48999A - GROMMET(FOR COMPRESSOR TO DRYER TUBE)
90480-19374	VG40	10/1982 - 09/1987	1
Common parts
82711-30020
90467-09007
90467-13103
90467-15120
90949-01038
91611-60610
91611-60830
91651-40612
91651-60816
91661-60830
94180-40600
Linked diagrams
8418

VG40-GENGE (1982)

(8210- )

(8709-9205)
