VG40-GENGE (1982)

Toyota Century

Production Oct 1982 - Sep 1987
Engine 5VEU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

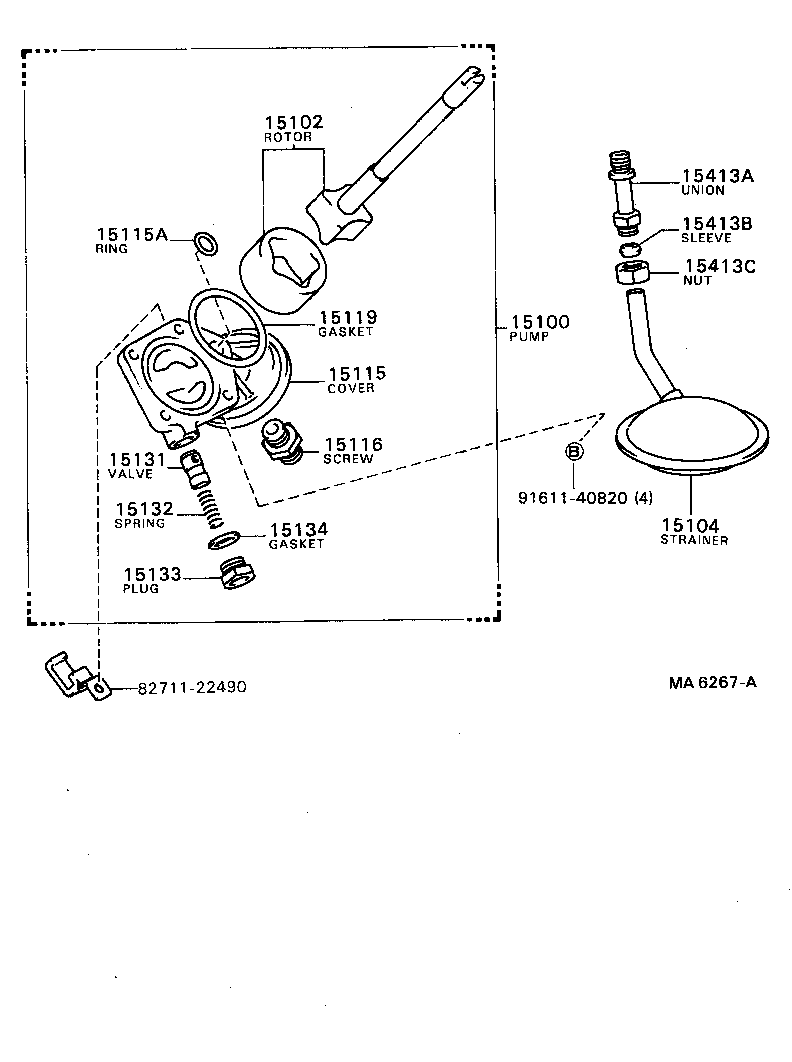

Click highlighted areas on diagram

diagram 15100 15102 15104 15115 15115A 15116 15119 15131 15132 15133 15134 15413A 15413B 15413C 8271122490 9161140820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-52020

5VEU..VG40

 1
15102 - ROTOR SET, OIL PUMP
15102-52020

5VEU..VG40

 1
15104 - STRAINER SUB-ASSY, OIL
15104-52010

5VEU..VG40

 1
15115 - COVER, OIL PUMP
15115-52010

5VEU..VG40

 1
15115A - RING, O(FOR OIL PUMP COVER)
96732-24014

5VEU..VG40

 1
15116 - SCREW, OIL CLEANER SET
15116-50010

5VEU..VG40

 1
15119 - GASKET, OIL PUMP COVER
96732-31065

5VEU..VG40

 1
15131 - VALVE, OIL PUMP RELIEF
15131-41010

5VEU..VG40

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

5VEU..VG40

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

5VEU..VG40

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

5VEU..VG40

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-20174

5VEU..VG40

 1
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-15006

5VEU..VG40

 1
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-20053

5VEU..VG40

 1
Common parts
82711-22490
91611-40820
