VG35-ENQE (1978)
Toyota Century

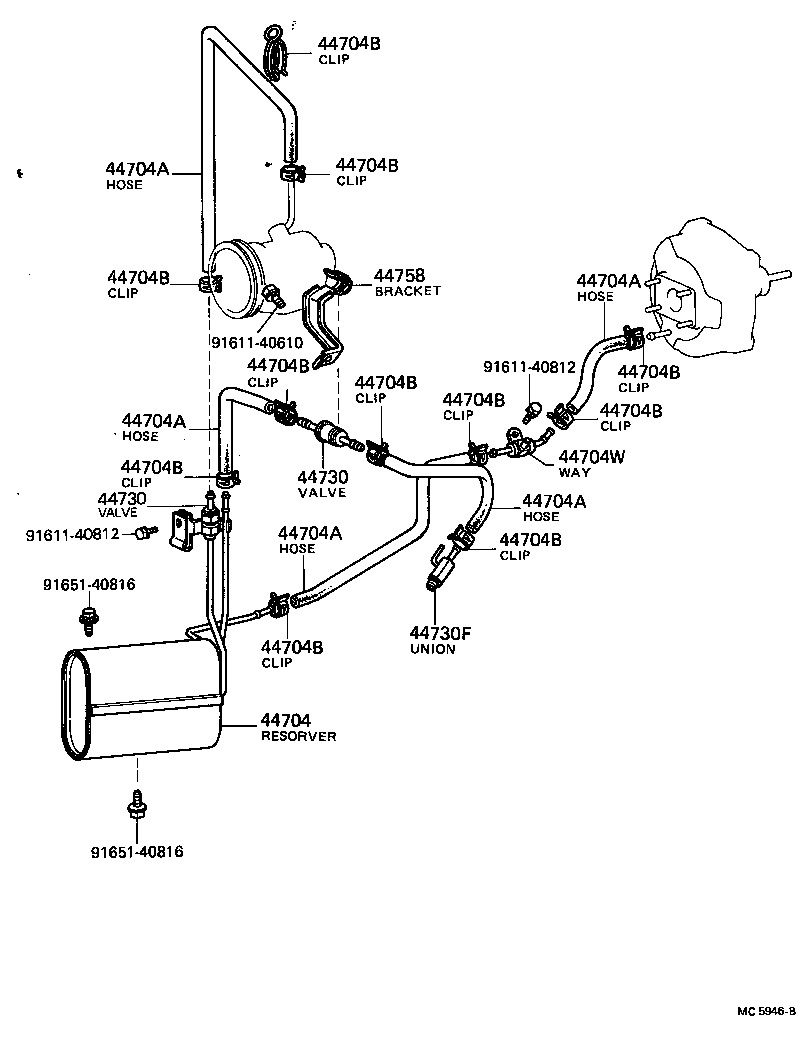

ILLUST NO. 2 OF 2(7811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-40040 |
VG35 |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44772-40020 |
VG35 UNION TO VACUUM CHECK VALVE |
1 | ||
| 44773-40020 |
VG35 RESERVOIR TO PUMP |
1 | ||
| 44776-40010 |
VG35 BOOSTER TO 3WAY |
1 | ||
| 44774-40010 |
VG35 3WAY TO RESERVOIR |
1 | ||
| 44773-40010 |
VG35 CHECK VALVE TO RESERVOIR |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44772-40020 |
VG35 UNION TO VACUUM CHECK VALVE |
1 | ||
| 44773-40020 |
VG35 RESERVOIR TO PUMP |
1 | ||
| 44776-40010 |
VG35 BOOSTER TO 3WAY |
1 | ||
| 44774-40010 |
VG35 3WAY TO RESERVOIR |
1 | ||
| 44773-40010 |
VG35 CHECK VALVE TO RESERVOIR |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44772-40020 |
VG35 UNION TO VACUUM CHECK VALVE |
1 | ||
| 44773-40020 |
VG35 RESERVOIR TO PUMP |
1 | ||
| 44776-40010 |
VG35 BOOSTER TO 3WAY |
1 | ||
| 44774-40010 |
VG35 3WAY TO RESERVOIR |
1 | ||
| 44773-40010 |
VG35 CHECK VALVE TO RESERVOIR |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44772-40020 |
VG35 UNION TO VACUUM CHECK VALVE |
1 | ||
| 44773-40020 |
VG35 RESERVOIR TO PUMP |
1 | ||
| 44776-40010 |
VG35 BOOSTER TO 3WAY |
1 | ||
| 44774-40010 |
VG35 3WAY TO RESERVOIR |
1 | ||
| 44773-40010 |
VG35 CHECK VALVE TO RESERVOIR |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44772-40020 |
VG35 UNION TO VACUUM CHECK VALVE |
1 | ||
| 44773-40020 |
VG35 RESERVOIR TO PUMP |
1 | ||
| 44776-40010 |
VG35 BOOSTER TO 3WAY |
1 | ||
| 44774-40010 |
VG35 3WAY TO RESERVOIR |
1 | ||
| 44773-40010 |
VG35 CHECK VALVE TO RESERVOIR |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90468-18004 |
VG35 DOUBLE CLIP |
1 | ||
| 44704W - WAY, 3(FOR VACUUM RESERVOIR) | ||||
| 90413-09017 |
VG35 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
VG35 RESERVOIR TO MANIFOLD |
1 | ||
| 44730-60040 |
VG35 PUMP TO RESERVOIR |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
VG35 RESERVOIR TO MANIFOLD |
1 | ||
| 44730-60040 |
VG35 PUMP TO RESERVOIR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51008 |
VG35 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-40010 |
VG35 |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91651-40816 | ||||

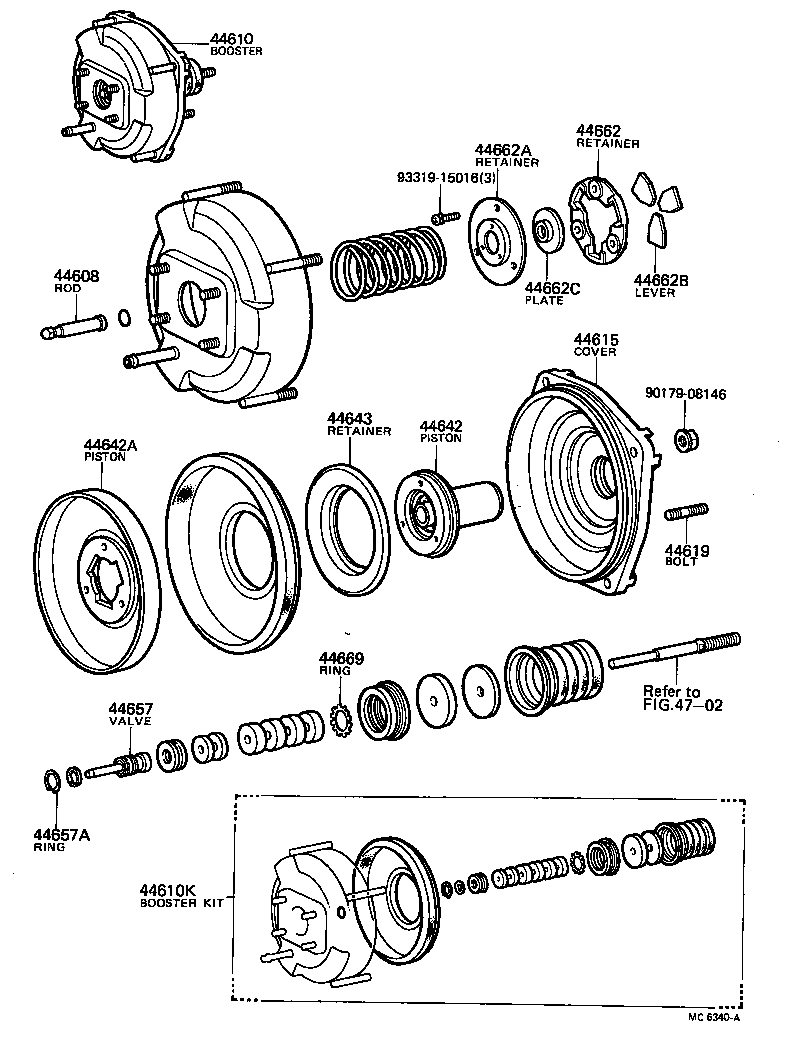

ILLUST NO. 1 OF 2(7811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-40060 |
VG35 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-40030 |
VG35 |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44612-40030 |
VG35 |
1 | ||
| 44619 - BOLT, BOOSTER BODY | ||||
| 44619-40010 |
VG35 |
4 | ||
| 44642A - PISTON, BOOSTER, NO.2 | ||||
| 44607-40060 |
VG35 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
VG35 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-22010 |
VG35 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-15016 | ||||
| Linked diagrams | ||||
| 4702 | ||||
